Запчасти Case IH 56-SERIES (N-07) - MAIN FRAME AND CYLINDER BRACKET, FOR 6-ROW PLANTERS, BUILT

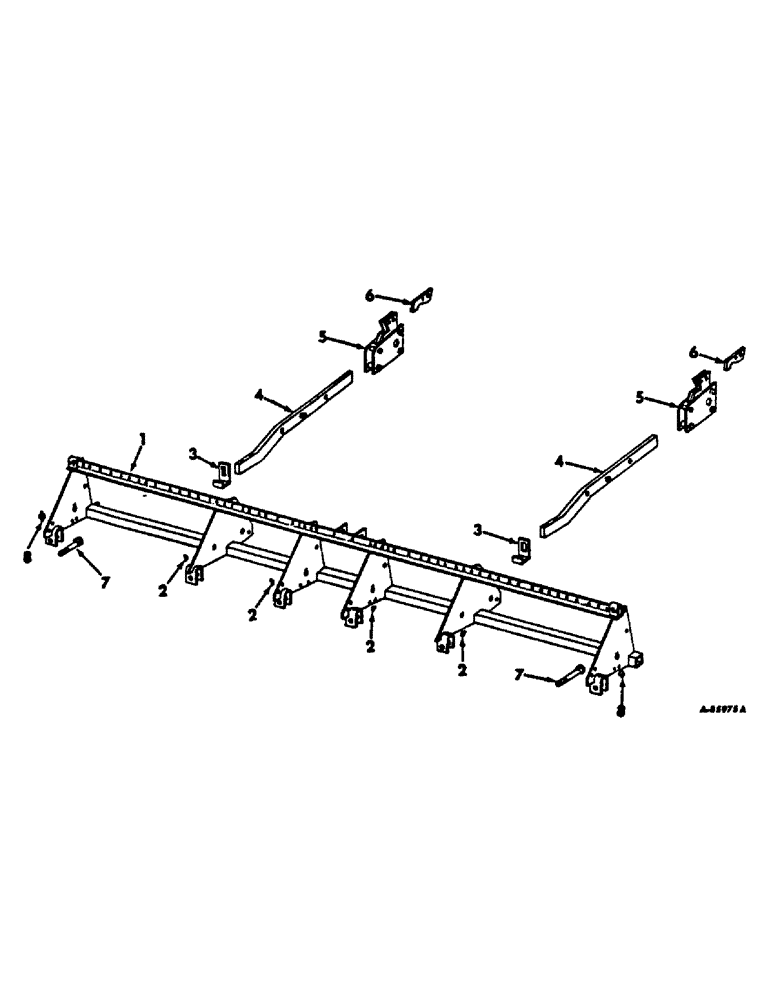

Схема запчастей Case IH 56-SERIES - (N-07) - MAIN FRAME AND CYLINDER BRACKET, FOR 6-ROW PLANTERS, BUILT
2
4
3
5
6
6
2
2
4
7
7
2
5
8
3
8
1

Артикул

Название

Примечание

Количество

1

484345R94

FRAME ASSY, main

1шт.

21632R1

COTTER PIN

PIN, 3/16 x z C-Z self-opening cot.

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

2

19964R91

FITTING, 1/4-28 NF angle lub

4шт.

3

484354R1

SUPPORT, cylinder anchor retainer

2шт.

4

484374R11

BRACKET ASSY, cyl

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

484366R91

SUPPORT ASSY, cyl mounting

2шт.

651866R1

PIN, pointed

2шт.

473865R91

LINCH PIN

PIN ASSY, quick attachable cot.

2шт.

6

472316R1

SUPPORT

RETAINER, cyl

2шт.

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN, 1/2 x 1-3/8 C-Z std-hd

2шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

2шт.

7

17847R1

BOLT, 7/8 x 5-1/2 hex-hd mach

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

4шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

2шт.

Выбрано товаров: 18
