Запчасти Case IH 56-SERIES (N-78) - TRANSPORT ATTACHMENT, FOR SIX ROW PLANTERS, BUILT 1966 TO 1972

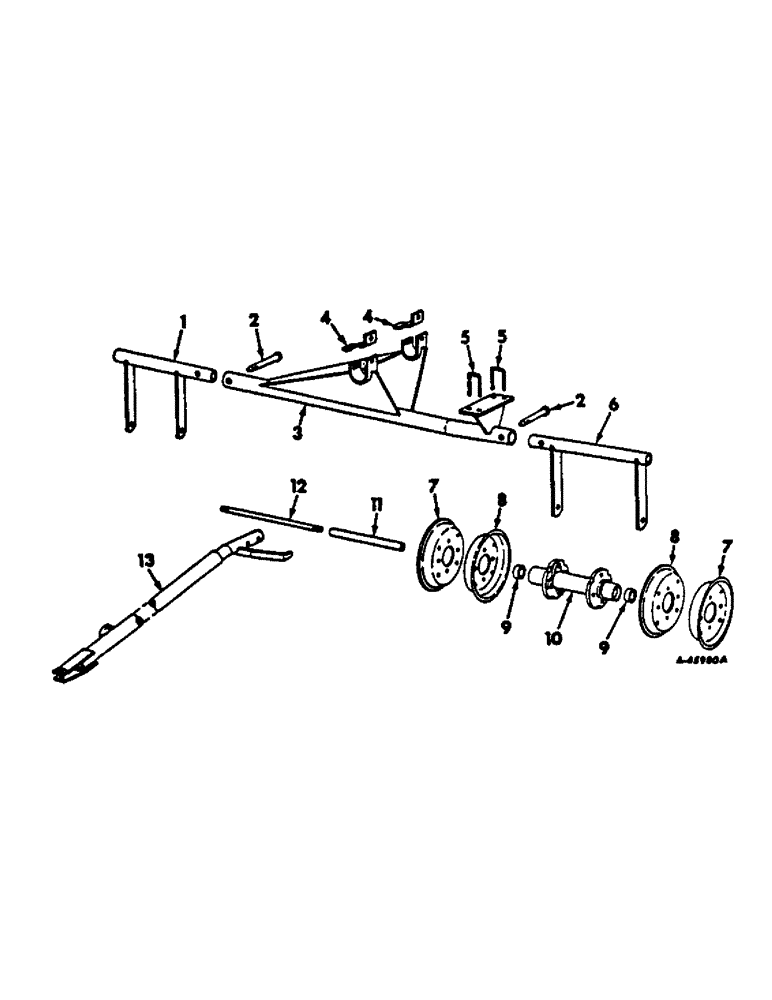

Схема запчастей Case IH 56-SERIES - (N-78) - TRANSPORT ATTACHMENT, FOR SIX ROW PLANTERS, BUILT 1966 TO 1972
2
1
4
13
12
9
10
8
6
5
7
9
11
2
5
3
7
8
4

Артикул

Название

Примечание

Количество

1

484429R91

FRAME ASSY, wheel

1шт.

2

651866R1

PIN, pointed

2шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

2шт.

3

484418R91

FRAME ASSY, transport

1шт.

4

484443R1

CLAMP

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

5

478243R1

BOLT,1/2" - 13 x 3.6"

U

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

13139R1

PIN, 1/4 x 1-3/4 self-opening cot.

2шт.

6

484426R91

FRAME ASSY, wheel

1шт.

7

484469R1

WHEEL W/VALVE HOLE, disk 8.00 x 3.25

4шт.

8

484468R1

WHEEL, 8.00 x 3.25 wheel

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

9

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

ASSY, wheel ball

4шт.

10

484435R1

HUB, transport wheel

2шт.

86837293

SHAFT

1/2-20 x 1 hex-hd cap

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

11

484433R1

PIPE, transport wheel spacer

2шт.

12

484434R1

ROD

axle

2шт.

484032R1

WASHER

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

220081

NUT

3/4-10 hex.

4шт.

13

484436R91

TONGUE ASSY, transport

1шт.

Выбрано товаров: 28
