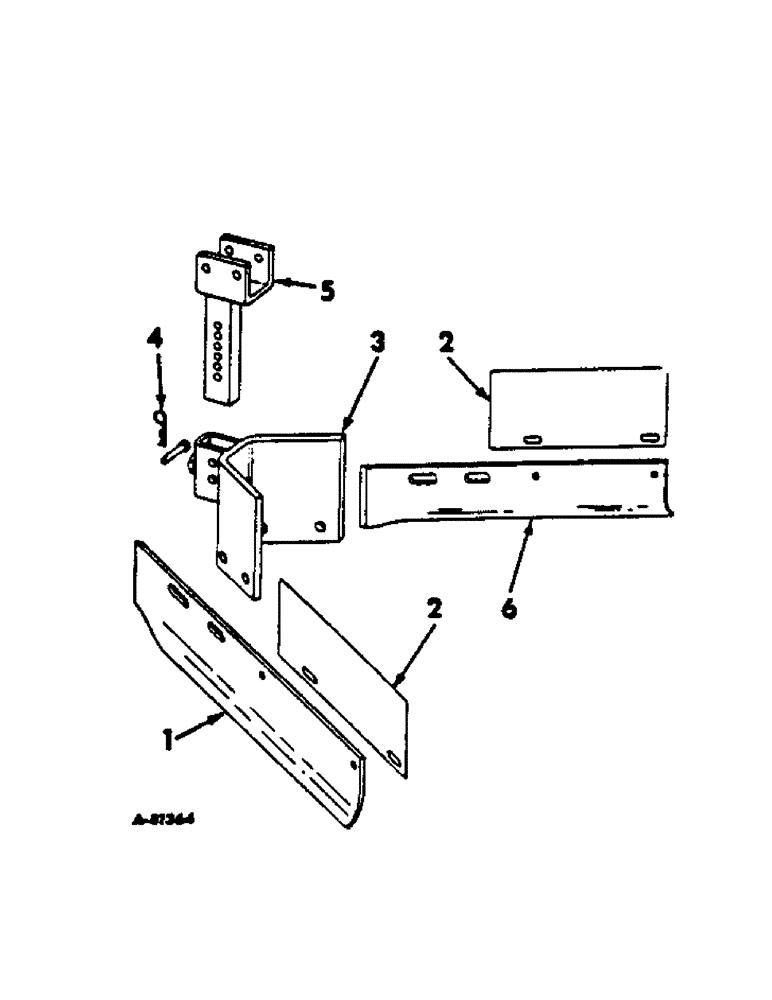

Запчасти Case IH 56-SERIES (N-77[A]) - PARALLEL ADJUSTABLE RUNNER WING, QUANTITIES SHOWN ARE PER ROW

1

469325R1

RUNNER

WING, LH runner

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

469327R1

SHIELD

dirt

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

480400R91

BRACKET ASSY, wing support

1шт.

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN, 1/4 x 1.875 hd type 1

1шт.

22216R1

SCREW

1/2 x 1-1/2 znp sq/hd c/pt set

1шт.

21549R1

WASHER

.281 x .750 x .042

1шт.

102637

NUT,1/2"-13, G5

1шт.

4

473443R1

COTTER PIN

quick attachable cot.

1шт.

5

480402R11

BAR ASSY, runner wings

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

469326R1

RUNNER

WING, RH runner

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
