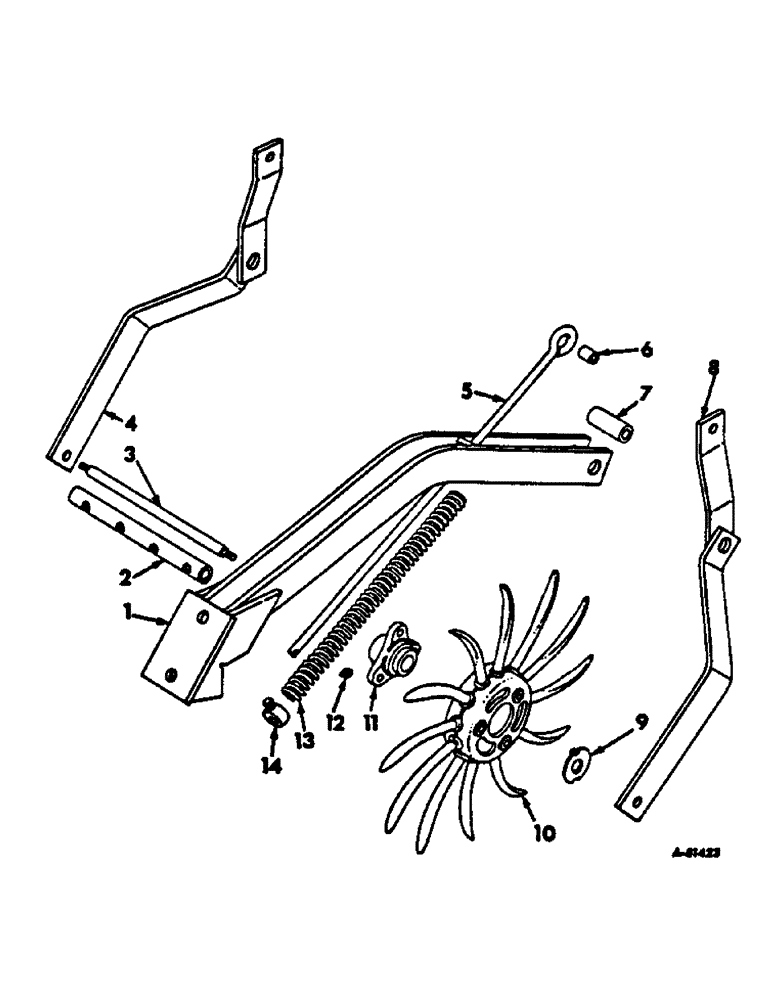

Запчасти Case IH 56-SERIES (N-76) - ROTARY HOE STRIP TILLAGE ATTACHMENT, FOR 2 & 4 ROW PLANTER W/36", 38" & 40" ROWS, BUILT 1966 TO 1970

1

FRAME ASSY, main, discontinued for service

1шт.

17927R1

BOLT,Hex, 5/8" - 11 x 7", Gr 2

5/8-11 x 7 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

517706R1

SLEEVE, bearing

1шт.

Q216

WASHER

1-3/32 x 1-3/4 x 16 ga

3шт.

3

516442R1

SHAFT, weeder wheel

1шт.

102637

NUT,1/2"-13, G5

2шт.

552356R1

WASHER

25/32 x 2-1/4 x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

ARM ASSY, wheel left, discontinued for service

1шт.

5

ROD, lift, discontinued for service

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

6

516560R1

BUSHING, spacer

1шт.

17523R1

BOLT, 1/2-13 x 2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

SPACER, frame pivot, discontinued for service

1шт.

17815R1

BOLT, 5/8-11 x 5 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

ARM ASSY, wheel right, discontinued for service

1шт.

9

516447R1

WASHER, wheel hub wear

2шт.

10

522294R11

WHEEL ASSY, rotary, 12T

4шт.

11

522293R1

HUB, wheel

4шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex-hd mach

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

13

R15254

SPRING, pressure

1шт.

14

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, 110447, set

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

2шт.
