Запчасти Case IH 56-SERIES (N-73) - SAFETY LIGHT UNIT, FOR 2 AND 4-ROW PLANTERS

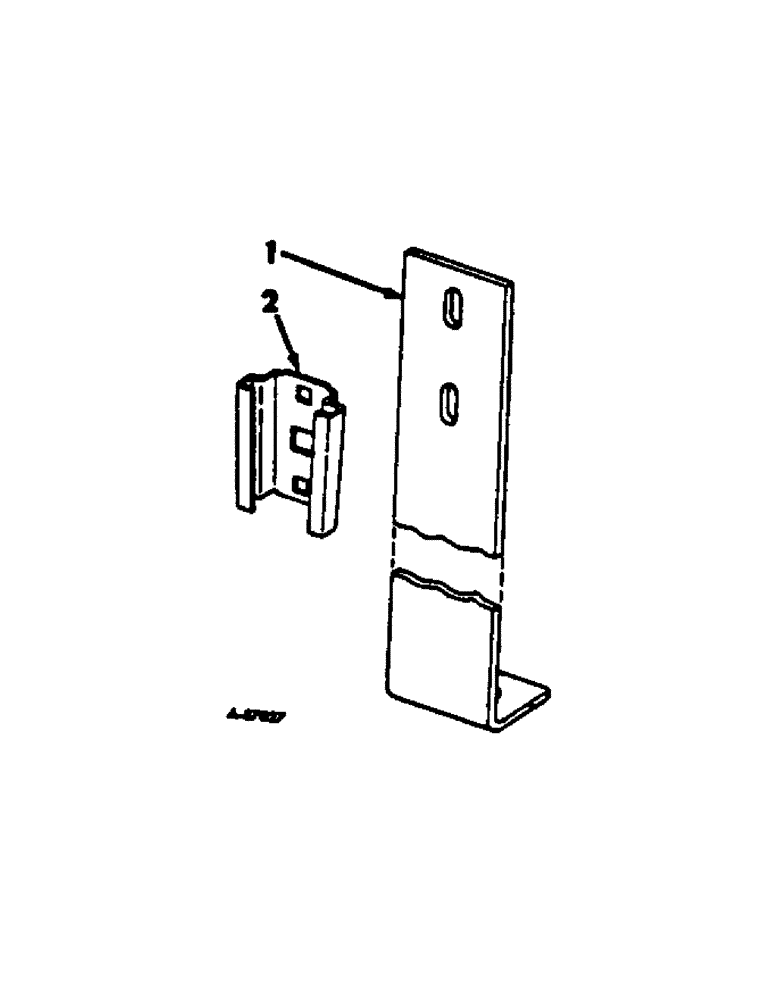

Схема запчастей Case IH 56-SERIES - (N-73) - SAFETY LIGHT UNIT, FOR 2 AND 4-ROW PLANTERS
2
1

Артикул

Название

Примечание

Количество

1

486487R1

SUPPORT TUBE

SUPPORT, safety light

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

398976R1

BRACKET

SOCKET, safety light bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

Выбрано товаров: 10
