Запчасти Case IH 56-SERIES (N-71) - DISK COVERING ATTACHMENT, W/PRECISION BEARINGS, BUILT 1967 TO 1969, QUANTITIES ARE PER ROW

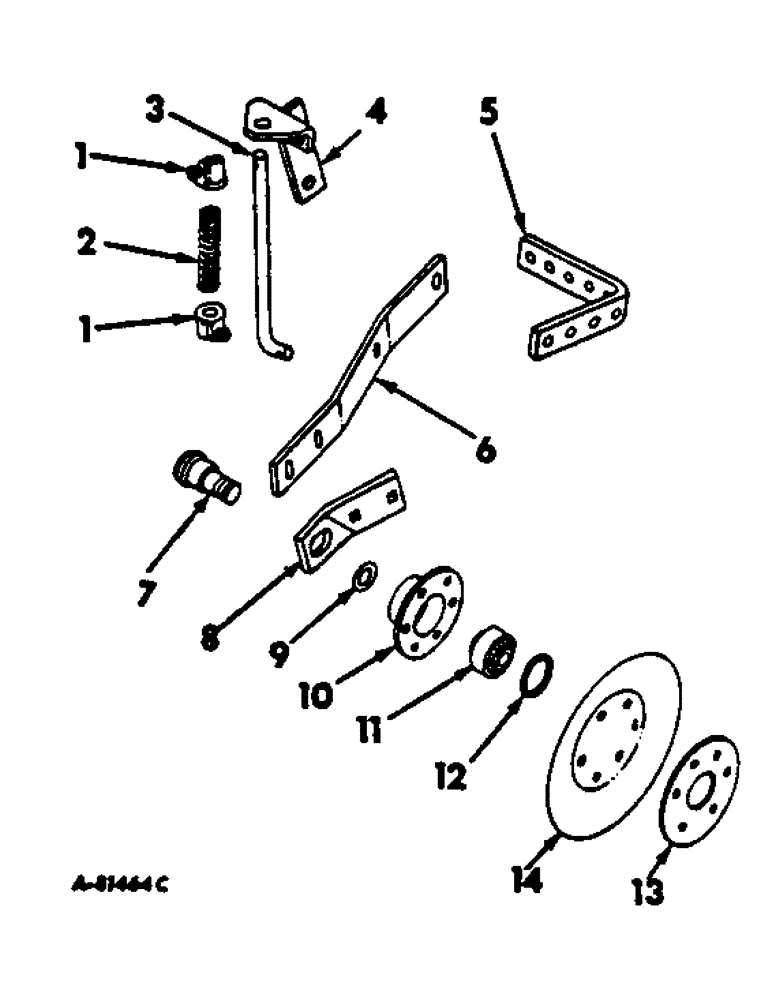

Схема запчастей Case IH 56-SERIES - (N-71) - DISK COVERING ATTACHMENT, W/PRECISION BEARINGS, BUILT 1967 TO 1969, QUANTITIES ARE PER ROW
7
9
6
13
5
1
8
1
12
2
14
4
10
3
11

Артикул

Название

Примечание

Количество

1

517951R11

WEAR PAD

COLLAR W/SET SCREW, spring rod

4шт.

142671

SET SCREW

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

4шт.

2

NLS

NO LONGER SERVICED

spring rod

2шт.

3

464460R2

ROD

pressure spring

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

4

480458R91

BRACKET

ASSY, pivot

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17442R1

BOLT, 1/2 x 1-1/8 C-Z hex-hd mach

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

5

480461R1

BRACKET

attaching

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

6

480462R1

ARM, covering disk

2шт.

7

481379R1

BOLT,5/8" - 11 x 1.8"

covering disk brg

2шт.

8

481377R1

BRACKET, covering disk adapter LH

1шт.

8

481378R1

BRACKET, covering disk adapter RH

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

4шт.

9

350515R1

WASHER

21/32 x 1 x 16 ga

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, covering disk brg

2шт.

11

479838R91

BALL BEARING,17mm ID x 40mm OD x 16.6mm W

covering disk ball

2шт.

12

479844R1

WASHER

ball brg spacing

2шт.

13

480466R1

RETAINER

covering disk

2шт.

14

480465R1

DISC

DISK, 7 in. covering

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

12шт.
