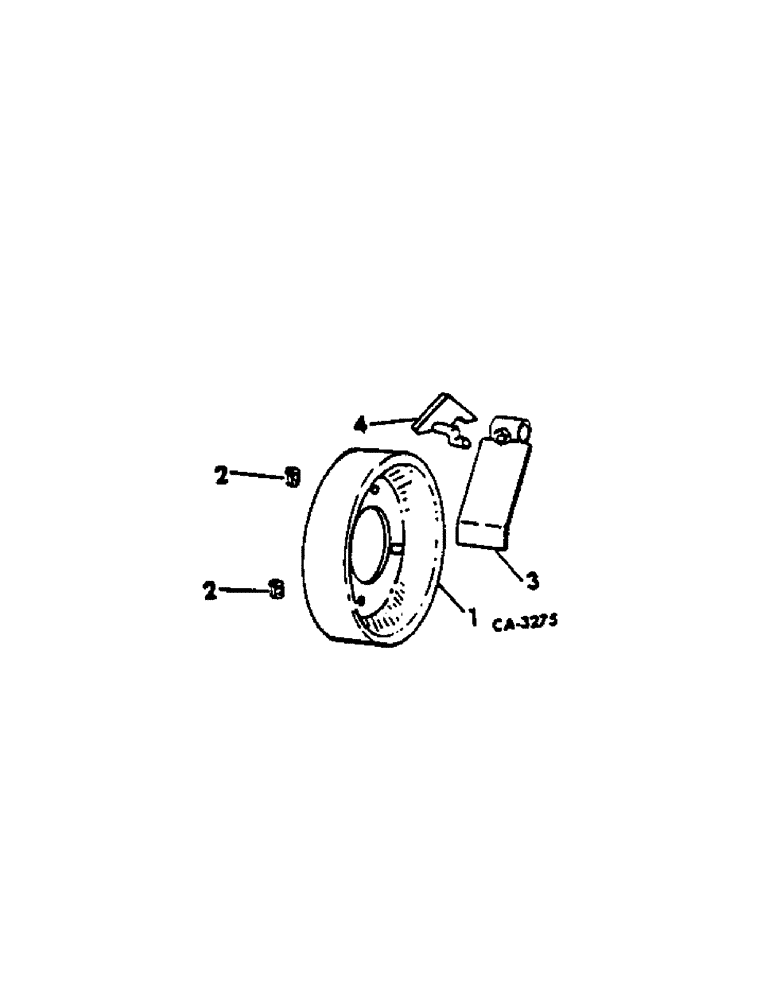

Запчасти Case IH 56-SERIES (N-70[1]) - DEPTH BAND DRUM AND SCRAPER ATTACHMENT MACHINES W/DOUBLE DISK OPENERS QUANTITIES SHOWN ARE PER ROW

1

461951R1

DRUM, depth 11-3/8 in. OD, for 9/16 in. depth adjusting

2шт.

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

4шт.

NUT, 3/8-16 C-Z hex.

4шт.

WASHER, 3/8 C-Z med lock

4шт.

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

480908R1

DRUM, depth 11 in. OD, for 3/4 in. depth adjusting

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1

493540R2

DRUM

depth 10-1/2 in. OD, for 1 in. depth adjusting

2шт.

1

524670R1

DRUM

depth 9-7/8 in. OD, for 1-1/4 in. depth adjusting

2шт.

1

493539R1

DRUM

depth 9-1/2 in. OD, for 1-1/2 in. depth adjusting

2шт.

1

542671R1

DRUM, depth 8-3/8 in. OD, for 2 in. depth adjusting

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

42274H

SPACER

WASHER, 15/2 x 7/8 x 7 ga

4шт.

1

524621R1

DRUM, depth 6-7/8 in. OD, for 2-3/4 in. depth adjusting

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 X 1-1/2 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

525820R1

SPACER,3/8" Pipe x .469"

depth band, for 9/16, 1, 1-1/4 and 2 inch depth band

4шт.

3

471242R11

SUPPORT

SCRAPER ASSY, depth band

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

(Not used)

1шт.
