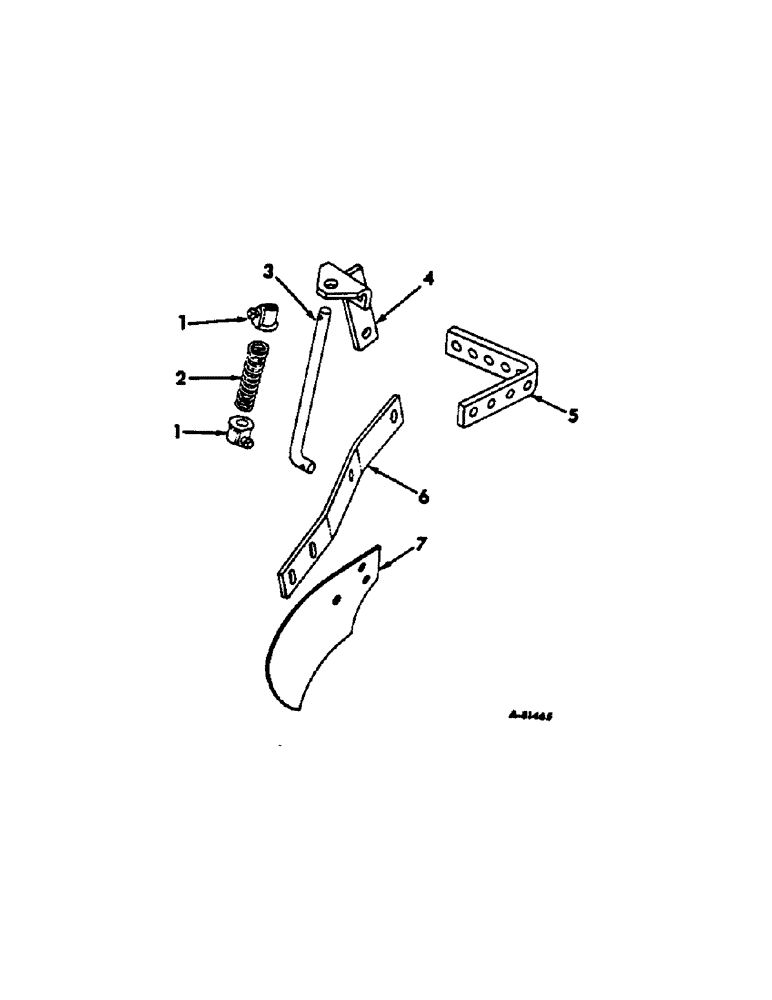

Запчасти Case IH 56-SERIES (N-68) - BLADE COVERING ATTACHMENT, WIDE, QUANTITIES SHOWN ARE PER ROW

1

517951R11

WEAR PAD

COLLAR W/SET SCREW, spring rod

4шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1-2 C-Z sq-hd cup-pt set

4шт.

2

NLS

NO LONGER SERVICED

spring rod

2шт.

3

464460R2

ROD

pressure spring

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

4шт.

607891R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

4

480458R91

BRACKET

ASSY, pivot

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17442R1

BOLT, 1/2 x 1-1/8 C-Z hex-hd mach

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

5

480461R1

BRACKET

attaching

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

480468R1

ARM

covering blade

2шт.

7

621426R2

BLADE

covering LH

1шт.

7

621427R2

BLADE

covering RH

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
