Запчасти Case IH 56-SERIES (N-67) - HYDRAULIC CYLINDER, 3-1/2 X 8 DOUBLE ACTING, HEAVY DUTY

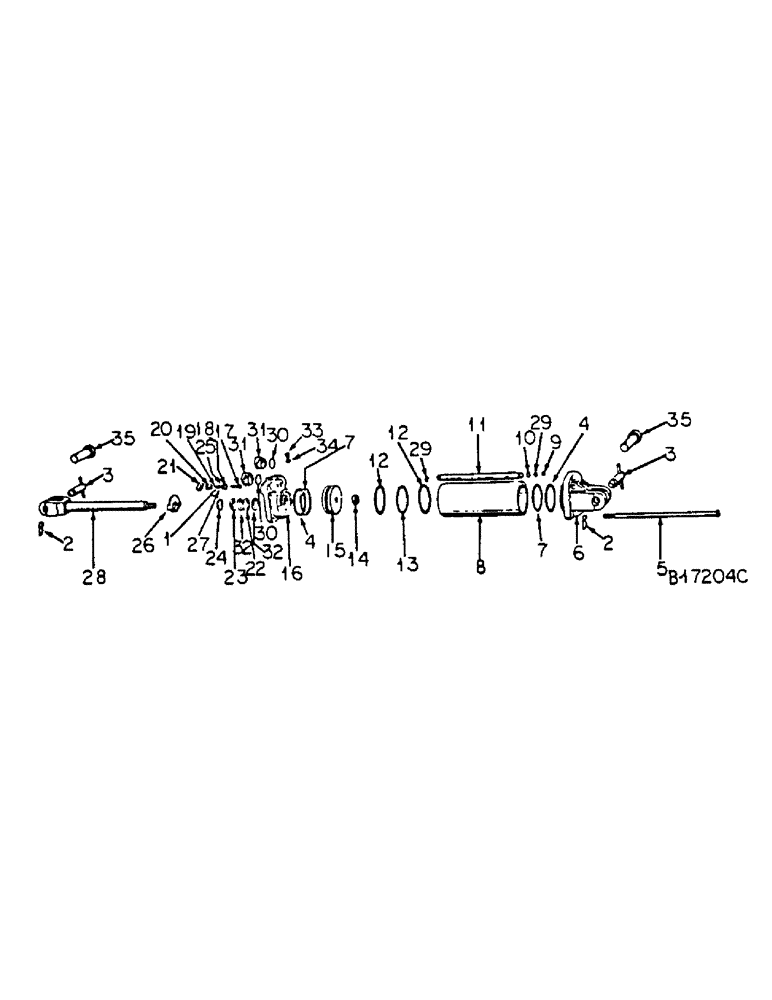

Схема запчастей Case IH 56-SERIES - (N-67) - HYDRAULIC CYLINDER, 3-1/2 X 8 DOUBLE ACTING, HEAVY DUTY
31
7
3
35
6
14
32
28
19
22
5
4
3
10
23
27
15
31
29
35
33
8
2
34
20
7
11
2
17
1
29
18
12
12
4
13
32
26
25
21
21
30
16
30
9

Артикул

Название

Примечание

Количество

403842R93

CYLINDER ASSY, hydraulic

1шт.

1

404026R1

BACK-UP RING

o-ring back-up

1шт.

2

520175R1

CLIP

PIN, quick attachable cot.

2шт.

3

(Not used)

1шт.

4

404015R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

5

404022R1

ROD,5/8" - 11 x 14"

tie

4шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

8шт.

6

547662R1

HEAD

rear

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8, front & rear head

2шт.

8

404021R1

SLEEVE, cyl

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, piston rod

1шт.

11

404023R1

TUBE

cyl return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 1/8, piston

1шт.

14

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC hex lock

1шт.

15

404019R1

PISTON

1шт.

16

404014R1

HEAD

cyl front

1шт.

17

404029R1

LOCK VALVE

VALVE ASSY, limit stop

1шт.

18

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, limit stop valve housing

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16, limit stop valve housing

1шт.

20

404024R91

HOUSING

ASSY, limit stop valve, includes ref. nos. 1, 19 and 27

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

400744R1

RING

quad

1шт.

23

383770R1

WASHER

WIPER, piston rod

1шт.

24

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

25

404028R1

BACK-UP RING

limit stop valve housing o-ring

1шт.

26

404034R1

CLAMP

ASSY, stroke limit

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

1шт.

27

404027R1

RETAINER

limit stop valve o-ring

1шт.

28

547661R1

ROD

ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, return tube

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

31

9410360

PLUG

7/8-14 str thd o-ring boss

2шт.

32

403622R1

BACK-UP RING

WASHER, quad ring back-up

2шт.

33

404033R1

PLUG

front head

2шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

35

61571C1

PIN

pivot

2шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.

2754240R3

PRODUCT GRAPHIC, hyd cyl

1шт.

527324R91

STRIPPER PACKAGE

1шт.

PACKAGE, o-ring service, consists of (1) o-ring 21590R1, (1) o-ring 364839R1, (1) ring 400744R1, (2) o-ring 343940R1, (2) washer 371218R2, (2) washer 375936R1, (2) o-ring 377952R1, (1) o-ring 378827R1, (1) o-ring 380794R1, (1) wiper 383770R1, (2) washer 403622R1, (2) washer 404015R1, (1) washer 404026R1, (1) washer 404028R1, (1) o-ring 606271C1

1шт.

Выбрано товаров: 44
