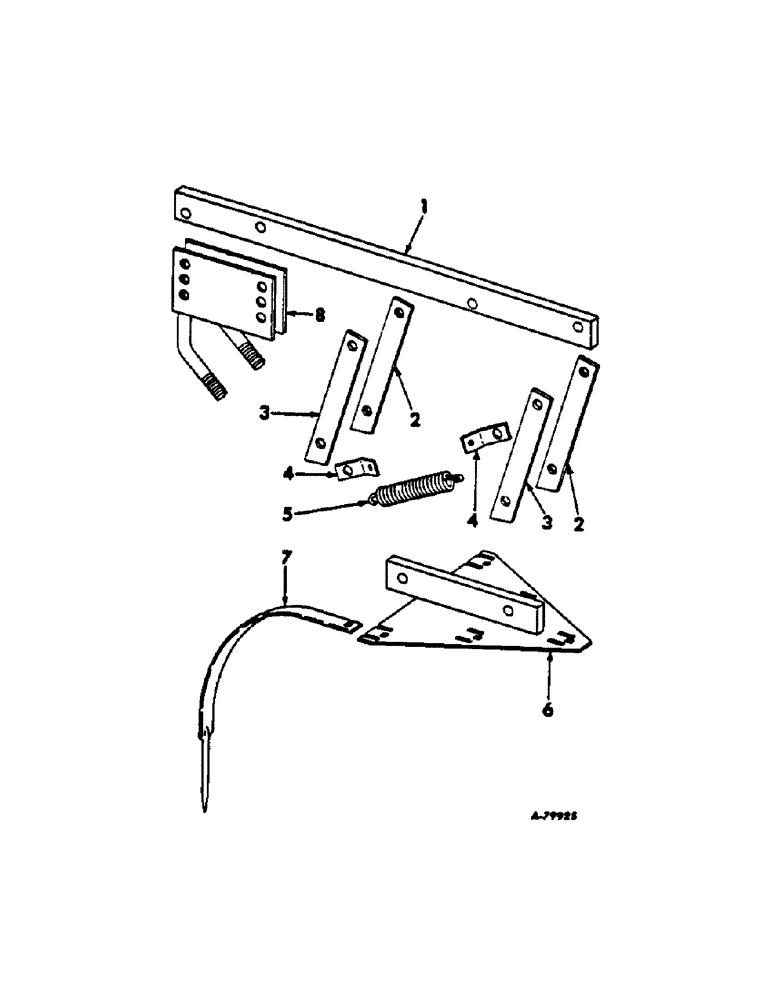

Запчасти Case IH 56-SERIES (N-66[A]) - SPRING TOOTH TILLAGE ATTACHMENT FOR 2 & 4-ROW PLANTERS, ONE PER ROW

1

473582R1

BAR, attaching

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

473584R1

STRAP, pivot

2шт.

3

473583R1

STRAP, pivot

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

473585R1

ANCHOR, spring

4шт.

5

635503R1

SPRING,148.8mm Free Length

2шт.

6

473577R91

PLATE ASSY, tooth attaching

1шт.

7

16448B

SPRING

TOOTH, weeder

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

8

473580R91

PLATE ASSY, adjusting

1шт.
