Запчасти Case IH 56-SERIES (N-65) - HYDRAULIC CYLINDER, 3-1/2 X 8 IN. DOUBLE ACTING

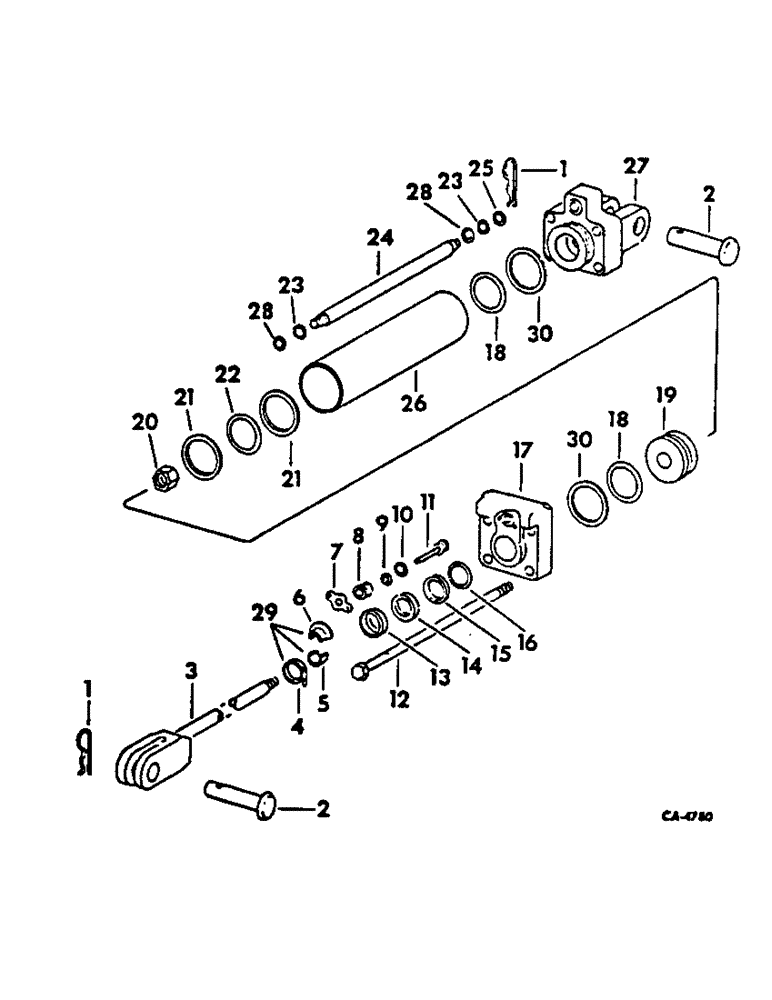

Схема запчастей Case IH 56-SERIES - (N-65) - HYDRAULIC CYLINDER, 3-1/2 X 8 IN. DOUBLE ACTING
18
3
7
28
28
23
29
18
8
25
21
21
13
5
27
6
2
19
14
23
11
2
1
4
16
10
17
9
22
15
30
12
1
24
30
20
26

Артикул

Название

Примечание

Количество

371292R95

CYLINDER

ASSY, 3-1/2 x 8 in. hydraulic

1шт.

1

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

2

61571C1

PIN

cylinder pivot

2шт.

3

60784C91

ROD

ASSY, piston

1шт.

4

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

5

360372R1

COLLAR

stroke limit plain half

1шт.

6

361010R1

COLLAR

stroke limit flanged half

1шт.

7

361009R1

PLATE

limit stop vavle retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

8

361007R11

RETAINER

ASSY, limit stop valve

1шт.

9

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

11

361006R11

VALVE

ASSY, limit stop

1шт.

12

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie, replaces tie rod, 60783C1

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

4шт.

13

354049R1

RETAINER

piston rod dust seal

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

15

383669R1

BACK-UP RING

rod seal back-up

1шт.

16

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

piston rod gland

1шт.

17

60786C91

HEAD

ASSY, cylinder front

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

2шт.

18

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

19

361003R1

HEAD

piston

1шт.

20

9412368

NUT

3/4-16 hex. piston rod lock

1шт.

21

375936R1

BACK-UP RING

WASHER, piston head back-up

2шт.

22

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

24

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

25

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

27

60782C1

HEAD

cylinder rear

1шт.

28

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

1шт.

29

375426R91

COLLAR

ASSY, stroke limit

1шт.

392503R1

PIN

SCREW, thumb

1шт.

30

404015R1

BACK-UP RING

WASHER, back-up

2шт.

363138R94

PACKAGE

1шт.

PACKAGE, hydraulic cylinder o-ring service, consists of (1) o-ring 21590R1, (2) o-ring 343940R1, (1) o-ring 350429R1, (2) o-ring 377952R1, (1) o-ring 378827R1, (1) retainer 354049R1, (1) ring 354047R1, (1) seal 354048R1, (2) washer 375936R1, (2) washer 371218R2, (2) washer 404015R1, (1) washer 383669R1

1шт.

Выбрано товаров: 37
