Запчасти Case IH 56-SERIES (N-61) - HYDRAULIC EQUIPMENT, FOR 6 ROW PLANTERS, BUILT 1967 TO 1972

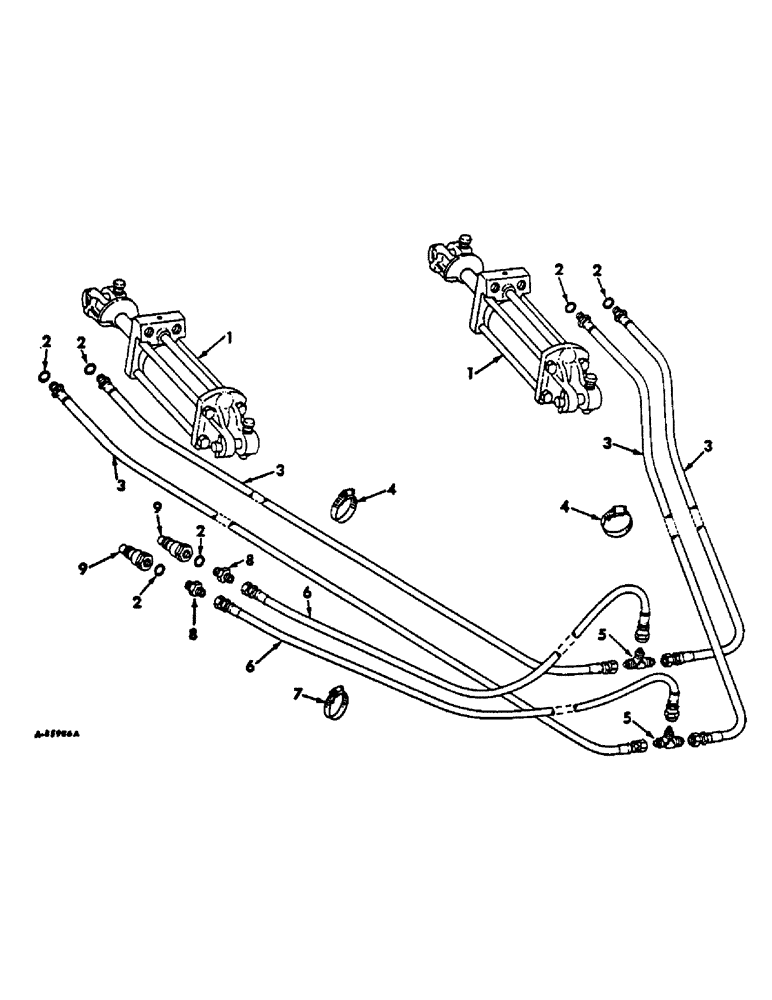

Схема запчастей Case IH 56-SERIES - (N-61) - HYDRAULIC EQUIPMENT, FOR 6 ROW PLANTERS, BUILT 1967 TO 1972
2
8
3
1
3
2
6
3
5
8
3
2
1
4
9
9
4
5
2
2
2
6
7

Артикул

Название

Примечание

Количество

1

371292R95

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, for components see list of parts under details of hydraulic cylinder

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

3

464046R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder rear, 1/2 ID x 75 in. long

4шт.

4

995223R1

CLAMP

HOSE

2шт.

5

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way

2шт.

6

560193R92

HOSE

ASSY, hydraulic cylinder front, 1/2 ID x 86 in. long

2шт.

7

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP, hose

1шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

2шт.

9

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male

2шт.

Выбрано товаров: 9
