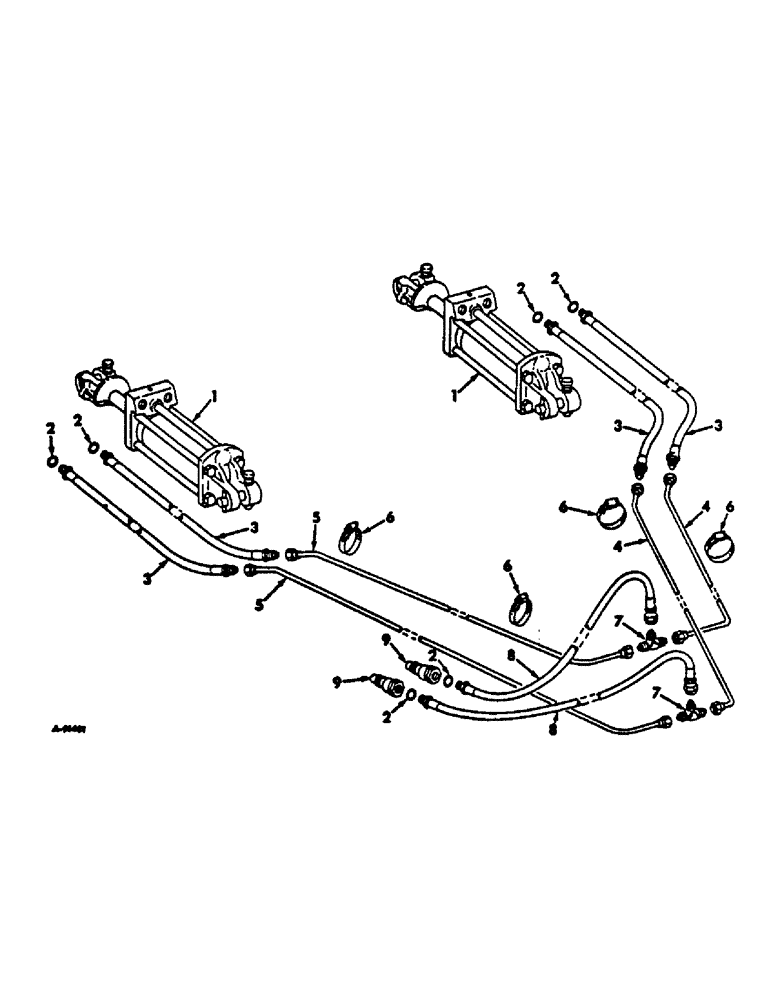

Запчасти Case IH 56-SERIES (N-60) - HYDRAULIC EQUIPMENT, FOR 6-ROW PLANTERS, BUILT 1966 TO 1967

1

371292R95

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, for components see list of parts under details of hydraulic cylinder

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

3

653411R91

HOSE ASSY, hydraulic cylinder rear, 1/2 ID x 36 in. long

4шт.

4

484384R11

TUBE ASSY, front cylinder LH

2шт.

5

484385R11

TUBE ASSY, front cylinder RH

2шт.

6

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, tube

4шт.

7

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube

2шт.

8

484449R91

HOSE ASSY, hydraulic cylinder front, 1/2 ID x 60 in. long

2шт.

9

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male

2шт.
