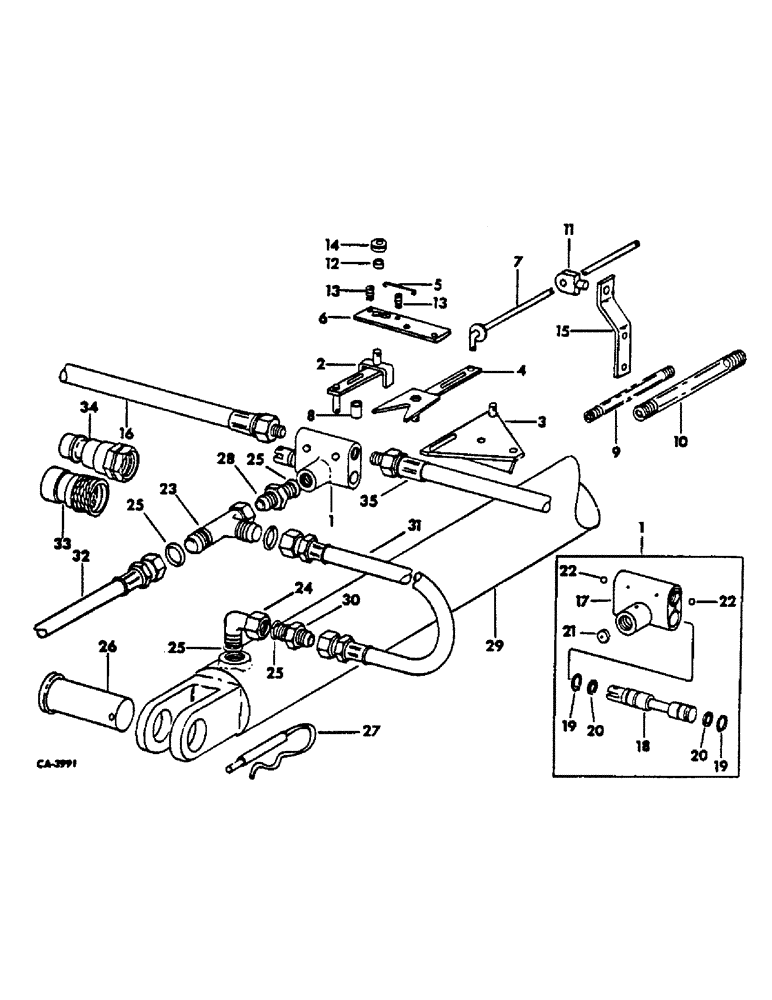

Запчасти Case IH 56-SERIES (N-57) - HYDRAULIC MARKER ALTERNATOR & CONNECTIONS, 1971 TO 1974

1

546861R92

VALVE

ASSY, selector

1шт.

2

546854R1

ARM

ASSY, rocker

1шт.

22922R1

LOCK PIN,1/4" x 3/4", Slotted

Pin, 1/4" x 3/4", Slotted

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

3

548081R1

PLATE ASSY

1шт.

4

546856R2

ARM

ASSY

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

5

546851R1

SPRING

1шт.

6

546857R1

SUPPORT

bellcrank

1шт.

180089

SPRING

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

548082R1

ROD ASSY, alternator

1шт.

50793H

WASHER

13/32 x 7/8 x 11 ga

2шт.

21819R1

PIN, 3/16 x 3/4 C-Z self-opening cot.

2шт.

8

546847R1

ROLLER

1шт.

9

546836R1

SPRING

override

1шт.

10

546835R3

SPRING

compression

1шт.

11

548084R1

PIVOT

trunnion

1шт.

496-21047

WASHER

15/32 x 15/16 x 16 ga C-Z

1шт.

21819R1

PIN, 3/16 x 3/4 C-Z cot.

1шт.

12

546839R1

BUSHING

1шт.

13

546846R1

STUD

2шт.

14

546850R1

PULLEY

ROLLER

1шт.

15

547706R1

ARM, valve actuator

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

16

461166R91

HOSE ASSY.

HOSE ASSY, 1/2 ID x 100 in. hydraulic RH, 2 for 8 row

1шт.

16

372437R91

HOSE

ASSY, 1/2 ID x 112 in. hydraulic RH, 2 for 12 row

1шт.

17

VALVE, selector, not serviced separately, order valve assy, 546861R92

1шт.

18

SPOOL, selector valve, not serviced separately, order valve assy, 546861R92

1шт.

19

549242R1

RING

retaining

2шт.

20

403519R1

O-RING,13.94mm ID x 2.62mm Width

9/16 x 3/4 x 3/32 treated

2шт.

21

546844R1

WASHER

restrictor

1шт.

22

663033R1

BALL

9/16 diameter

2шт.

23

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 hyd 37 deg flared tube str thrd 90 deg swivel

1шт.

24

371357R91

ELBOW

7/8-14 x 90 deg adjustable

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

9шт.

26

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd

4шт.

27

520175R1

CLIP

PIN, 3/16 quick-attachable cot.

4шт.

28

493792R2

UNION

RESTRICTOR

1шт.

29

547993R92

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.

30

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

1шт.

31

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 1/2 ID x 18-1/4 in. hyd

1шт.

32

491957R1

HOSE ASSY, 1/2 ID x 95 in. hydraulic

1шт.

33

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, quick attachable female

1шт.

34

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male

1шт.

35

653348R91

FLEXIBLE HOSE

HOSE ASSY, 1/2 ID x 155 in. hydraulic LH, 2 for 8 row

1шт.

35

463076R91

HOSE ASSY, 1/2 ID x 180 in. hydraulic LH, 2 for 12 row

1шт.
