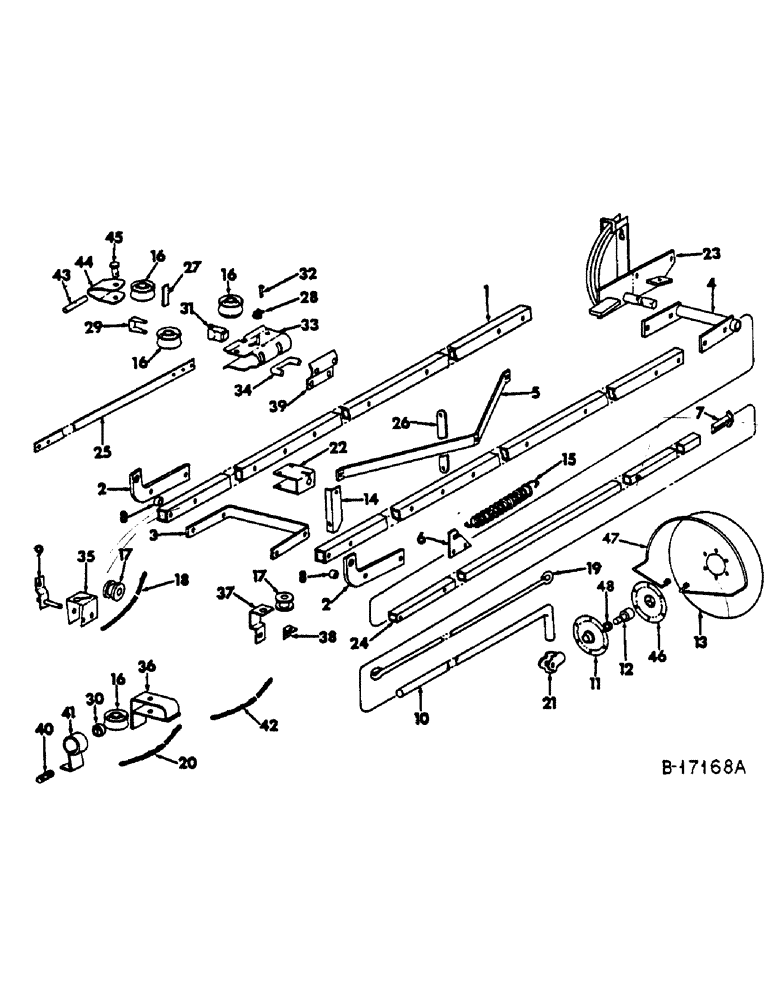

Запчасти Case IH 56-SERIES (N-53) - MARKER ATTACHMENT, FOR 4-ROW PLANTERS, BUILT 1967 TO 1971

1

489754R3

TUBE

marker

4шт.

2

489755R1

BRACKET, LH

2шт.

2

489756R1

BRACKET, RH

2шт.

3

489757R1

BRACE

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

489758R2

PIPE

ASSY

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

5

489761R1

SUPPORT

BRACE

2шт.

6

489762R1

ANCHOR, spring

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd cap

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

7

489764R1

BLOCK

2шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

2шт.

Q3808

PIN, 7/8 x 5 std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

8

478176R1

BUSHING

marker pivot

2шт.

9

478152R92

BRACKET ASSY, outer pivot chain

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

2шт.

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach

2шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

478033R1

ROD

marker disk clamp

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

11

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk furrow brg inner

2шт.

12

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

2шт.

13

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

14

489765R1

ANGLE, spring support LH

1шт.

14

489766R1

ANGLE, spring support RH

1шт.

18821R1

BOLT

5/8 x 1-1/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

15

490195R1

SPRING

2шт.

16

625071R1

PULLEY

SHEAVE, chain roller

5шт.

480679R1

WASHER

dirt seal felt

2шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

97865H

WASHER

9/32 x 7/8 x 16 ga C-Z

1шт.

17

625036R1

PULLEY

ROLLER, lift chain

3шт.

21805R1

PIN

5/8 x 2-1/2 C-Z std-hd

3шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z cot.

3шт.

18

489767R91

CHAIN (AG)

CHAIN, marker

2шт.

19

489768R1

ROD

marker brace

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20

489770R91

CHAIN, marker

1шт.

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

6шт.

520175R1

CLIP

PIN, quick attachable cot.

6шт.

21

478032R1

CLAMP

axle

2шт.

22

489772R1

CHANNEL, chain bracket LH

1шт.

22

489773R1

CHANNEL, chain bracket RH

1шт.

23

489774R1

PULLEY

ASSY, LH

1шт.

23

489775R1

PULLEY

ASSY, RH

1шт.

24

489784R1

TUBE ASSY, LH

1шт.

24

489786R1

TUBE

ASSY, RH

1шт.

25

472114R1

BAR, jockey

3шт.

26

489787R1

LINK

2шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

4шт.

586591R1

COTTER PIN

PIN, quick attachable cot.

4шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

27

486997R1

ARM

switcher

1шт.

28

481929R1

SPRING

snubber

1шт.

29

486980R1

YOKE

CLEVIS, switcher arm

1шт.

30

481925R2

BALL

marker chain

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

31

481926R1

HOLDER

marker chain

1шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 C-Z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

32

486981R1

PIN

marker clevis

1шт.

33

487616R1

CASE

ASSY, idler pulley

1шт.

34

484447R1

ROD

idler pulley pivot

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

4шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 C-Z std-hd

1шт.

35

489793R1

BRACKET, LH

1шт.

35

489794R1

BRACKET, RH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

36

487621R1

CASE ASSY, pulley

2шт.

37

487624R1

SUPPORT

1шт.

38

487625R1

ANGLE, pulley support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

39

487620R1

SUPPORT, marker case

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1/2-13 C-Z hex.

2шт.

40

487619R1

BAR, chain clip

1шт.

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

41

489788R1

GUIDE, chain

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

42

489769R91

CHAIN, marker

1шт.

23226R1

PIN, 1/2 x 2-1/2 C-Z std-hd

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

3шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

43

472375R1

PIN

pivot

1шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

44

472374R1

BRACKET

pulley

1шт.

45

474110R1

PIN

marker sheave

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

1шт.

46

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk furrow brg outer

2шт.

47

113223C1

GUARD

marker disk

2шт.

48

480679R1

WASHER

dirt seal

2шт.
