Запчасти Case IH 56-SERIES (N-51) - MARKER ATTACHMENT, FOR 4-ROW PLANTERS, BUILT 1966 TO 1967

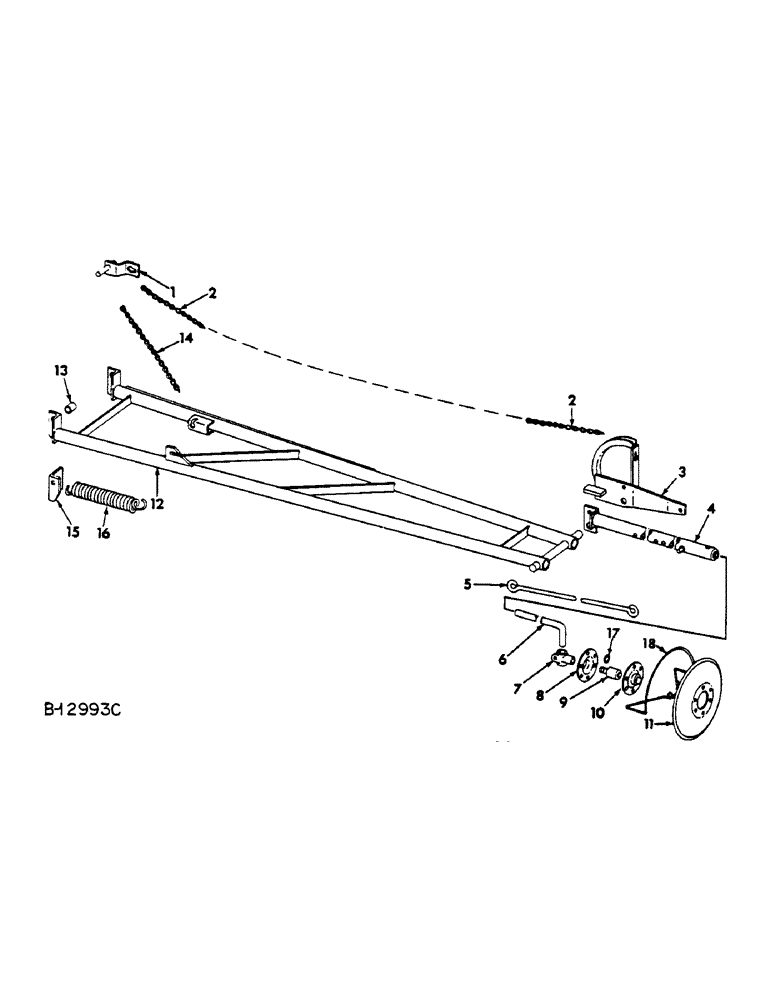

Схема запчастей Case IH 56-SERIES - (N-51) - MARKER ATTACHMENT, FOR 4-ROW PLANTERS, BUILT 1966 TO 1967
17
16
18
2
14
8
6
2
1
3
9
13
7
11
10
12
5
4
15

Артикул

Название

Примечание

Количество

1

478152R91

BRACKET ASSY, outer pivot chain

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

2

478156R1

CHAIN, actuator

2шт.

17444R1

BOLT, 1/4-20 x 1-1/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

2шт.

Q286

WASHER, 9/32 x 1 x 18 ga

2шт.

3

478157R91

PULLEY ASSY, left

1шт.

3

478158R91

PULLEY ASSY, right

1шт.

478172R1

PIN, 3/4 x 7/8 std-hd

2шт.

520175R1

CLIP

PIN, quick-attachable cot.

2шт.

4

478165R91

PIPE ASSY, marker left

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

1шт.

17627R1

BOLT

1/2-13 x 3 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

3шт.

13094R1

PIN, 3/16 x 1/4 self-opening cot. 3/16" x 1 1/4"

1шт.

110452

SET SCREW

1/2 x 1-1/2 sq-hd cup-pt set

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

4

478166R91

PIPE ASSY, right

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

1шт.

17627R1

BOLT

1/2 x 3 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

3шт.

110452

SET SCREW

1/2 x 1-1/2 sq-hd cup-pt set

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

478171R1

ROD, marker

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

6

478033R1

ROD

marker disk clamp

2шт.

7

478032R1

CLAMP

axle

2шт.

15073R1

BOLT, 1/2-13 x 2 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

102894

SET SCREW

3/8-16 x 3/4 sq-hd cup-pt set

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk furrow brg inner

2шт.

9

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

2шт.

10

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk furrow brg outer

2шт.

11

469372R1

DISC,13"

DISK, 13 in.

2шт.

120376

NUT,5/16"-18, G5

12шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 cd or zn-pltd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

12

478142R93

FRAME ASSY, main pipe left

1шт.

12

478143R93

FRAME ASSY, main pipe right

1шт.

478172R1

PIN, 3/4 x 7/8 std-hd

2шт.

PO20069

PIN, 7/8 x 4-7/8 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

6шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

4шт.

13

478176R1

BUSHING

marker pivot

2шт.

14

478155R1

CHAIN, lift

2шт.

478172R1

PIN, 3/4 x 7/8 std-hd, for planter latch brkt

2шт.

520175R1

CLIP

PIN, quick attachable cot., for planter latch brkt

2шт.

15

479818R1

ANGLE, spring support LH

1шт.

15

479819R1

ANGLE, spring support RH

1шт.

17450R1

BOLT, 5/8-11 x 1-1/4 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

PO10

SPRING

2шт.

17

480679R1

WASHER

dirt seal

2шт.

18

113223C1

GUARD

marker disk

2шт.

Выбрано товаров: 61
