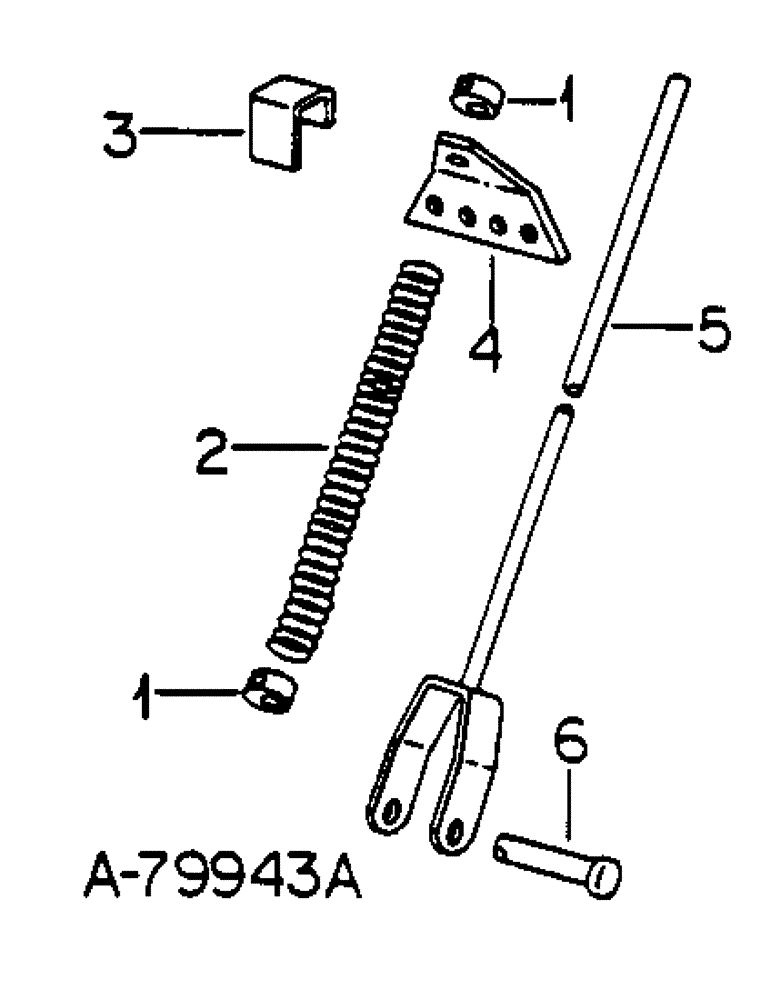

Запчасти Case IH 56-SERIES (N-46) - COMPLETING PACKAGE, LIFT RODS, 4 AND 6 ROW PLANTERS, QUANTITIES SHOWN ARE PER ROW

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW

1шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

2шт.

2

479178R1

VALVE SPRING

SPRING, pressure (replaces 477178R1)

1шт.

3

545298R1

CHANNEL, marker chain guide, w/o fertilizer

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

472324R1

BRACKET, lift rod, w/o fertilizer

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

472325R11

ROD ASSY, lift, w/o fertilizer, 35-1/2 in. long

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

1шт.

5

489221R1

ROD ASSY, lift, w/o fertilizer, 39 in. long, 6 row planters, machines built, Serial Range: 1966-1975

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

1шт.

5

472385R11

ROD

ASSY, lift, w/fertilizer

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

1шт.

6

21942R1

HEADED PIN,1/2" x 3 3/4"

PIN, 1/2 x 3-3/4 hd type 1, replaces 472387R1

1шт.

520175R1

CLIP

PIN, quick attachable cot., w/fertilizer

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-open cot., w/out fertilizer

1шт.
