Запчасти Case IH 56-SERIES (N-45) - MARKER UNIT, DISK TYPE, FOR 6 ROW PLANTERS, BUILT 1975 AND SINCE

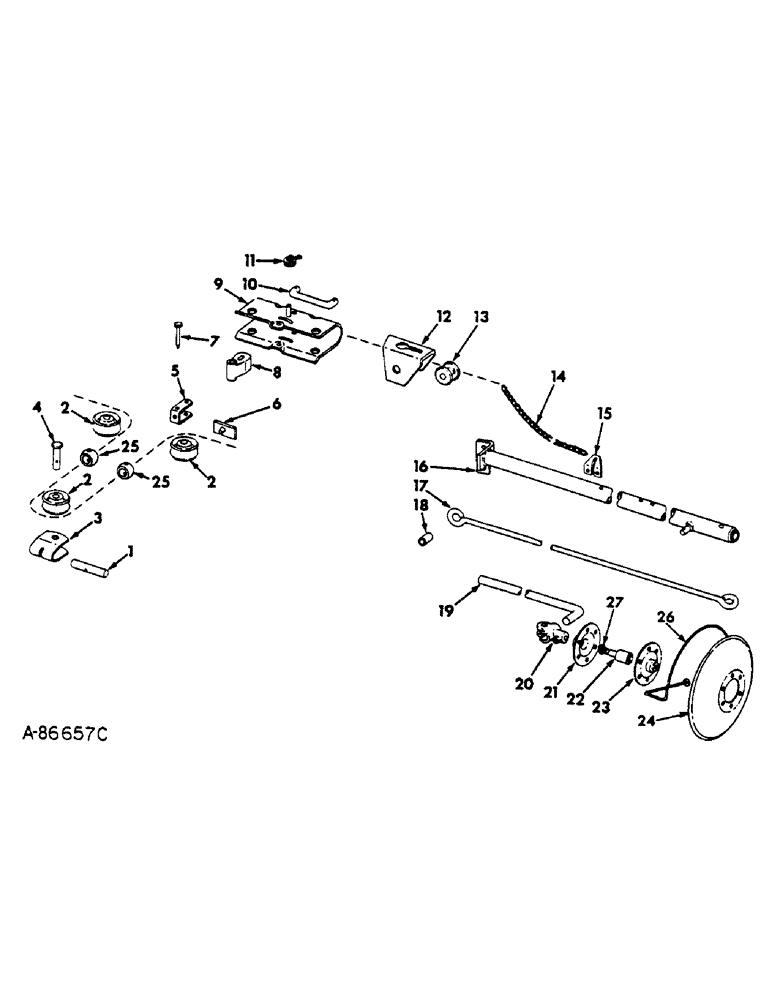

Схема запчастей Case IH 56-SERIES - (N-45) - MARKER UNIT, DISK TYPE, FOR 6 ROW PLANTERS, BUILT 1975 AND SINCE
2
10
25
17
3
13
4
2
15
23
7
21
14
5
19
27
26
24
22
12
1
18
9
20
8
2
16
6
11
25

Артикул

Название

Примечание

Количество

1

472375R1

PIN

pivot

1шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

2

625071R1

PULLEY

SHEAVE, chain roller

3шт.

3

472374R1

BRACKET

pulley

1шт.

4

474110R1

PIN

marker sheave

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

1шт.

5

486980R1

YOKE

CLEVIS, holder switching

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 C-Z std-hd

1шт.

97865H

WASHER

9/32 x 7/8 x 16 ga C-Z

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

6

486997R1

ARM

switcher

1шт.

7

486981R1

PIN

marker clevis

1шт.

8

481926R1

HOLDER

main chain

1шт.

22749R1

PIN,5/16" x 2 1/8"

5/16 x 2-1/8 C-Z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

9

481931R1

CASE

idler pulley

1шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

10

484447R1

ROD

idler pulley pivot

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

11

493533R1

SPRING

snubber

1шт.

12

484280R1

SUPPORT

BRACKET, latch LH

1шт.

12

484281R1

BRACKET

latch RH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16-14 x 1-1/4 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

625036R1

PULLEY

ROLLER, lift chain

2шт.

21960R1

PIN, 1/2 x 2-15/16 C-Z std-hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

14

480058R2

CHAIN (AG)

CHAIN, marker

1шт.

15

464003R1

CLIP

marker chain

2шт.

180089

SPRING

SCREW, 5/16-18 x 2-1/4 C-Z hex-hd cap

4шт.

122376

NUT, 5/16-18 C-Z hex.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

478165R91

PIPE ASSY, marker right hand

1шт.

16

478166R91

PIPE ASSY, marker left hand

1шт.

22062R1

PIN, 7/8 x 4-7/8 C-Z std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

22216R1

SCREW

1/2-13 x 1-1/2 C-Z sq-hd cup-pt set

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

17

478171R1

ROD, marker

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

1шт.

22216R1

SCREW

1/2-13 x 1-1/2 C-Z sq-hd cup-pt set

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18

478176R1

BUSHING

brace rod

2шт.

19

478033R1

ROD

marker disk clamp

2шт.

20

478032R1

CLAMP

axle

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

4шт.

21

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

22

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

2шт.

23

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

24

479473R1

DISC

DISK, 11 in. marker

2шт.

120376

NUT,5/16"-18, G5

12шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

25

481925R2

BALL

marker chain button

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

26

113223C1

GUARD

marker disk

1шт.

27

480679R1

WASHER

dirt seal

2шт.
