Запчасти Case IH 56-SERIES (N-44[A]) - PRESS WHEEL, OPEN CENTER TYPE, QUANTITIES SHOWN ARE PER ROW

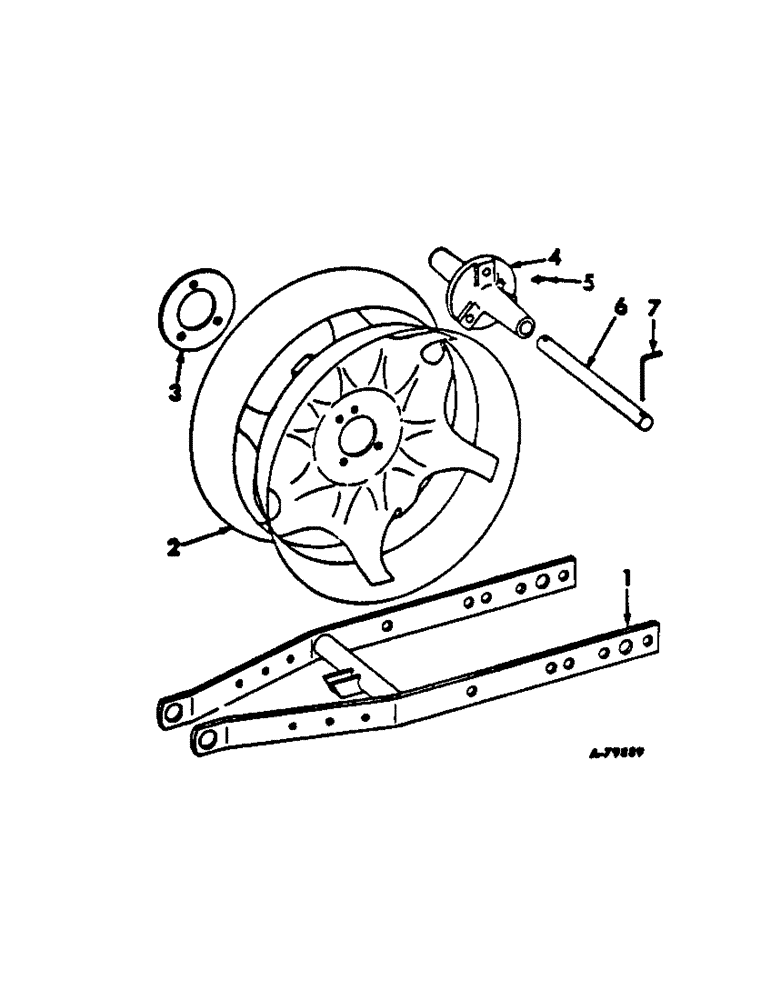

Схема запчастей Case IH 56-SERIES - (N-44[A]) - PRESS WHEEL, OPEN CENTER TYPE, QUANTITIES SHOWN ARE PER ROW
7
5
3
2
1
6
4

Артикул

Название

Примечание

Количество

1

472101R92

FUNNEL

FRAME ASSY, press wheel

1шт.

2

486609R1

WHEEL

ASSY, press

1шт.

3

464466R1

RETAINER

WASHER, press wheel

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

472106R1

HUB

press wheel

1шт.

5

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

6

461911R1

PIN

AXLE, press wheel

1шт.

If axle set up is different (having bearings) has a Gandy unit and must go to Gandy for parts mg 6/96

1шт.

7

461912R2

PIN

axle retaining

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

Выбрано товаров: 13
