Запчасти Case IH 56-SERIES (N-43) - MARKER UNIT, DISK TYPE, FOR 6-ROW PLANTERS, BUILT 1966 TO 1975

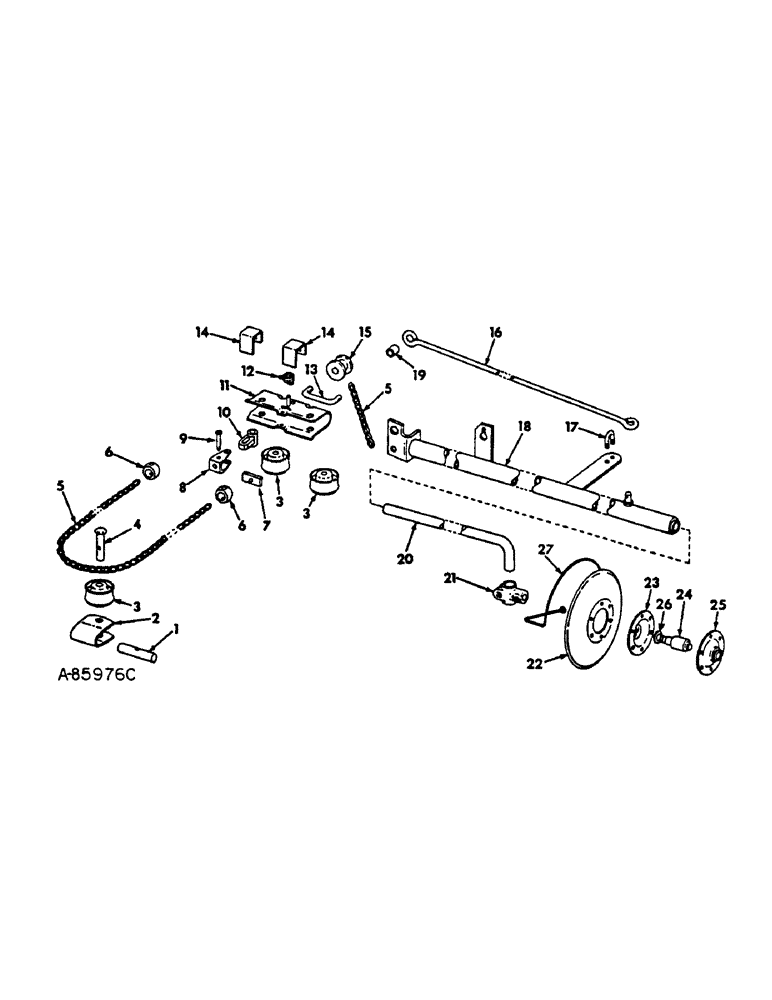

Схема запчастей Case IH 56-SERIES - (N-43) - MARKER UNIT, DISK TYPE, FOR 6-ROW PLANTERS, BUILT 1966 TO 1975
27
19
1
6
21
6
3
14
16
9
3
25
20
18
8
12
15
11
24
5
26
5
14
10
23
4
3
22
7
2
13
17

Артикул

Название

Примечание

Количество

1

472375R1

PIN

pivot

1шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

2

472374R1

BRACKET

PULLEY

1шт.

3

625071R1

PULLEY

SHEAVE, chain roller

3шт.

4

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 C-Z std-hd

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

1шт.

5

484383R91

CHAIN (AG)

CHAIN, marker

1шт.

6

493785R1

BALL

marker chain button

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

7

486997R1

ARM

switcher

1шт.

8

486980R1

YOKE

CLEVIS, holder switching arm

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 C-Z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

97865H

WASHER

9/32 x 3/4 x 16 ga

1шт.

9

486981R1

PIN

1/4 x 2-3/32 marker clevis

1шт.

10

481926R1

HOLDER

marker chain

1шт.

22749R1

PIN,5/16" x 2 1/8"

5/16 x 2-1/8 std-hd

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

11

481931R1

CASE

ASSY, idler pulley

1шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

12

493533R1

SPRING

snubber

1шт.

13

484447R1

ROD

idler pulley pivot

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

14

545298R1

CHANNEL, marker chain guide

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

625036R1

PULLEY

ROLLER, lift chain

2шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 std-hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

16

484446R1

ROD, marker brace

2шт.

17

23272K

BOLT,3/8" - 16 x 1 3/8"

marker brace bar U

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

18

484378R91

TUBE ASSY, marker LH

1шт.

18

484379R91

TUBE ASSY, marker RH

1шт.

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

19

478176R1

BUSHING

brace rod

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

20

478033R1

ROD

marker disk clamp

2шт.

21

478032R1

CLAMP

axle

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 2 C-Z sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

4шт.

22

479473R1

DISC

DISK, 11 in. marker

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

22216R1

SCREW

1/2 x 1-1/2 C-Z sq-hd cup-pt set

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

23

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

24

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

2шт.

25

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

26

480679R1

WASHER

dirt seal felt

2шт.

27

113223C1

GUARD

marker disk

1шт.

Выбрано товаров: 62
