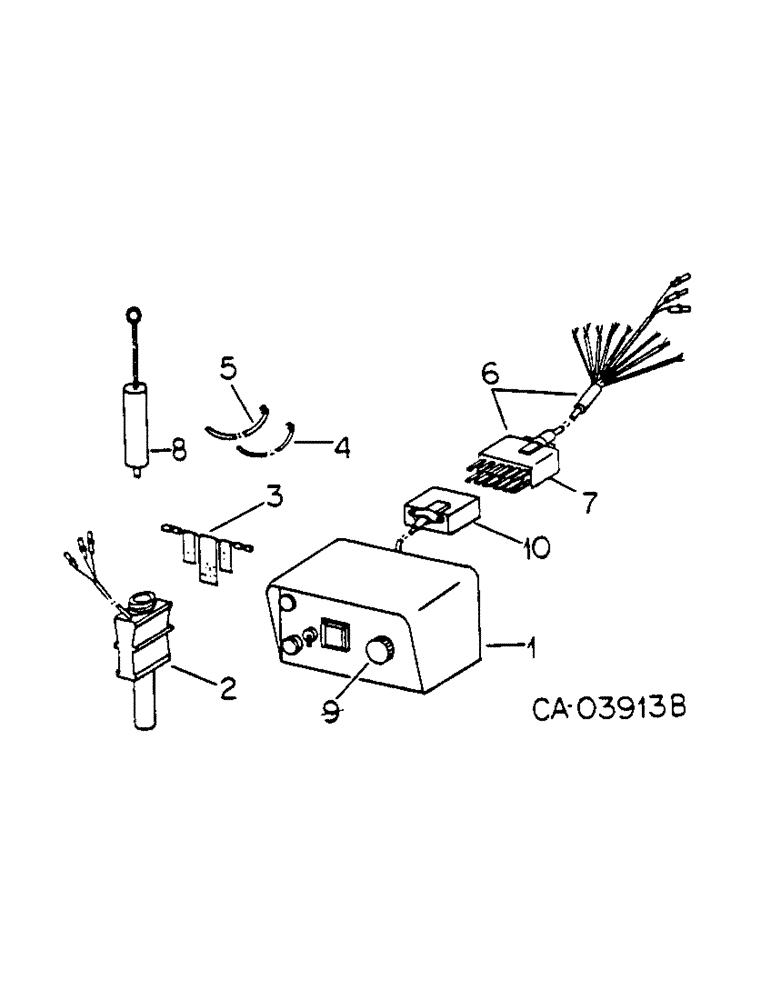

Запчасти Case IH 56-SERIES (N-36) - SEED FLOW MONITOR EQUIPMENT

1

R60709C1

PANEL

CONSOLE ASSY, seed flow monitor, renewed, only serviceable items are fuse, 106652, female socket, 128814C1 and buzzer, 128816C1

1шт.

2

60853C1

SENSOR

large seed, used w/seed tube 541876R1

1шт.

2

60857C1

BOOT

SENSOR, seed, used w/seed tube 472240R2

1шт.

3

58557C1

ELECTRICAL WIRE

WIRE, shortening

1шт.

4

58555C1

FASTENER

TIE WRAP, 7 in.

1шт.

5

58556C1

CABLE TIE

TIE WRAP, 14 in.

1шт.

6

57684C91

HARNESS

ASSY, planter, 4 row

1шт.

6

57685C91

HARNESS

ASSY, planter, 6 row

1шт.

7

128813C1

CONNECTOR,ELECTRIC

PLUG, male connector socket

1шт.

8

128817C1

BRUSH, COMMUTATOR

BRUSH, sensor cleaning

1шт.

9

128816C1

BUZZER

sonalert

1шт.

10

128814C1

SOCKET

female connector

1шт.

133924C1

DECAL

PRODUCT GRAPHIC, seed flow monitor control panel

1шт.
