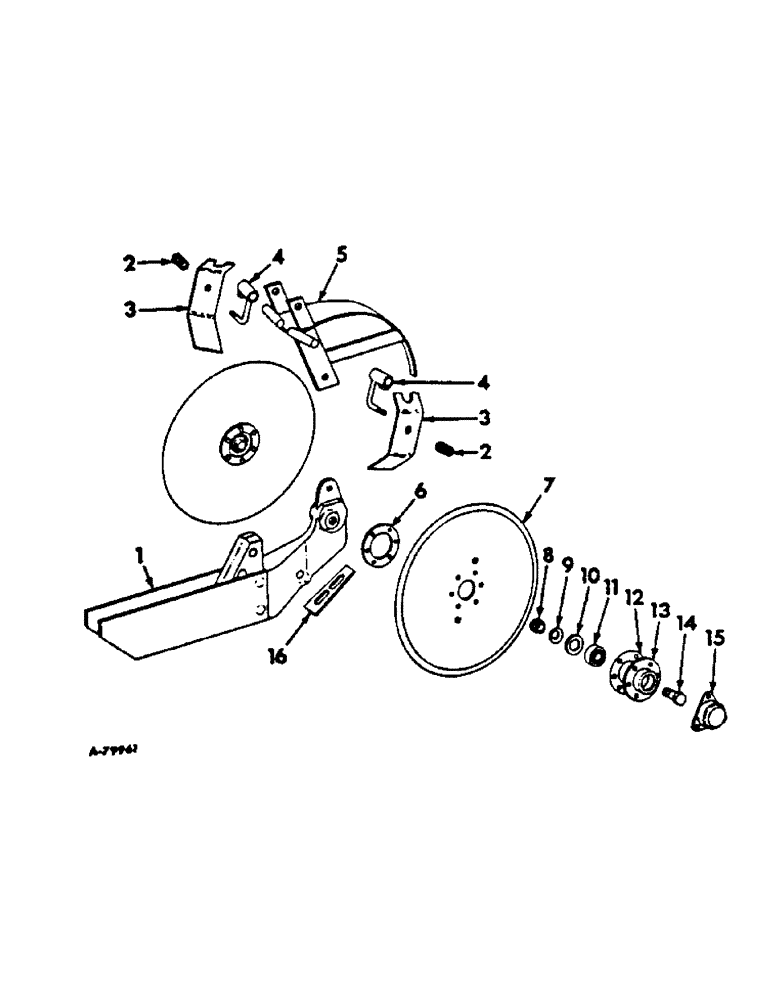

Запчасти Case IH 56-SERIES (N-34) - DOUBLE DISK OPENER AND SCRAPER, QUANTITIES SHOWN ARE PER ROW

1

474444R91

OPENER

RUNNER W/RIVETS, double disk, drill

1шт.

1

474341R91

OPENER

RUNNER ASSY, double disk, hill drop, machines built, Serial Range: 1966-1973

1шт.

20156R1

RIVET, 3/8 x 2-5/16 74 deg csk-hd

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2-13 x 2-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

6633

SPRING

2шт.

3

471240R1

SUPPORT

SCRAPER, disk

2шт.

4

474344R91

SPACER

ASSY, scraper

2шт.

120376

NUT,5/16"-18, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 znd sq-hd cup-pt set

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

4шт.

5

474337R12

GUARD

ASSY, double disk opener

1шт.

18893R1

BOLT, 5/16 x 1 C-Z sq-hd mach

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 C-Z hex-hd mach

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 CDP hex. lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

464480R1

WASHER

WASHER, reinforcement

2шт.

7

471235R1

DISC

DISK, opener

2шт.

8

602988R1

SPACER

seal retainer

2шт.

9

464628R1

SEAL

2шт.

10

602994R1

FLANGE

corrosion prevention

2шт.

11

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, ball

2шт.

12

602992R1

GASKET

disk

2шт.

13

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk brg

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, brg disk LH thd

1шт.

14

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, brg disk RH thd

1шт.

15

464483R1

CYLINDER END CAP

CAP, disk brg

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

6шт.

16

478203R1

BAR

SCRAPER, inside

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

541505R91

DISC

DISK BEARING HOUSING ASSY, composed of (1) bearing 465004R91, (1) disk 471235R1, (1) flange 602994R1, (1) gasket 602992R1, (1) housing 602989R1, (3) screw 180016, (1) seal 464628R1, (1) spacer 602988R1, (3) washer 120380, (1) washer 464480R1

1шт.
