Запчасти Case IH 56-SERIES (N-33[1]) - RUNNER OPENER QUANTITIES SHOWN ARE PER ROW

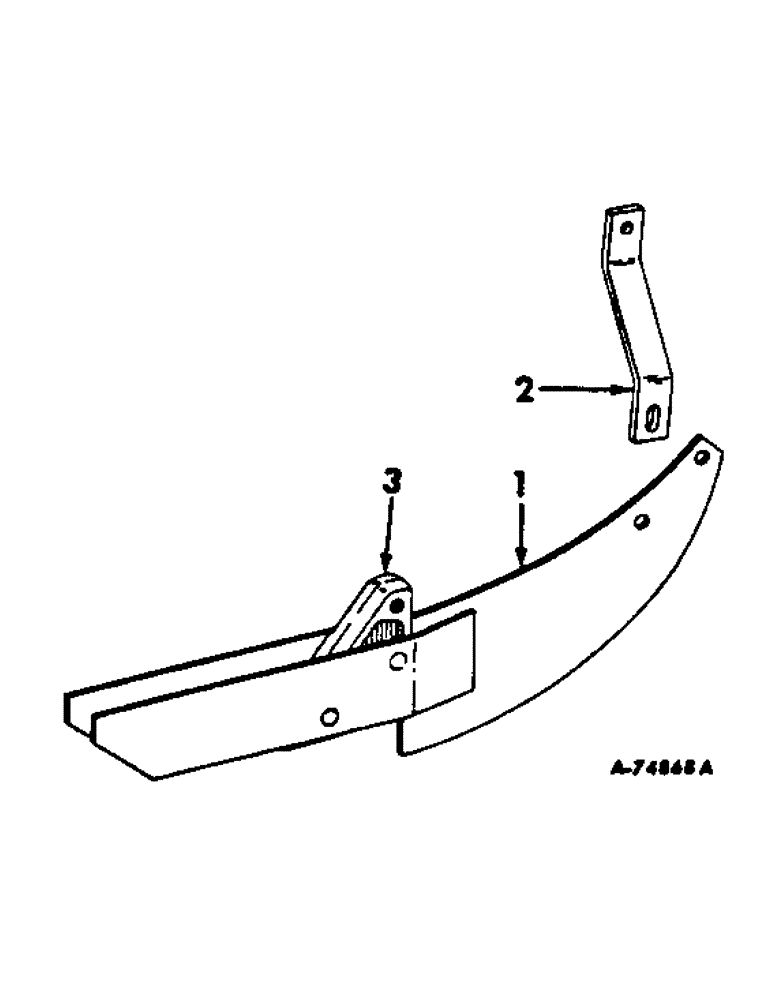

Схема запчастей Case IH 56-SERIES - (N-33[1]) - RUNNER OPENER QUANTITIES SHOWN ARE PER ROW
1
2
3

Артикул

Название

Примечание

Количество

1

472259R92

RUNNER

W/FROG AND RIVETS, drill

1шт.

1

472260R92

OPENER

RUNNER W/FROG AND RIVETS, hill drop

1шт.

2

472261R1

BRACE, runner

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

3

472258R1

FROG, runner

1шт.

20156R1

RIVET, 3/8 x 2-5/16 74 deg csk-hd

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2-13 x 2-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Выбрано товаров: 13
