Запчасти Case IH 56-SERIES (N-31) - HILL DROP AND DRILL UNITS, QUANTITIES SHOWN ARE PER ROW, MACHINES BUILT 1975 AND SINCE

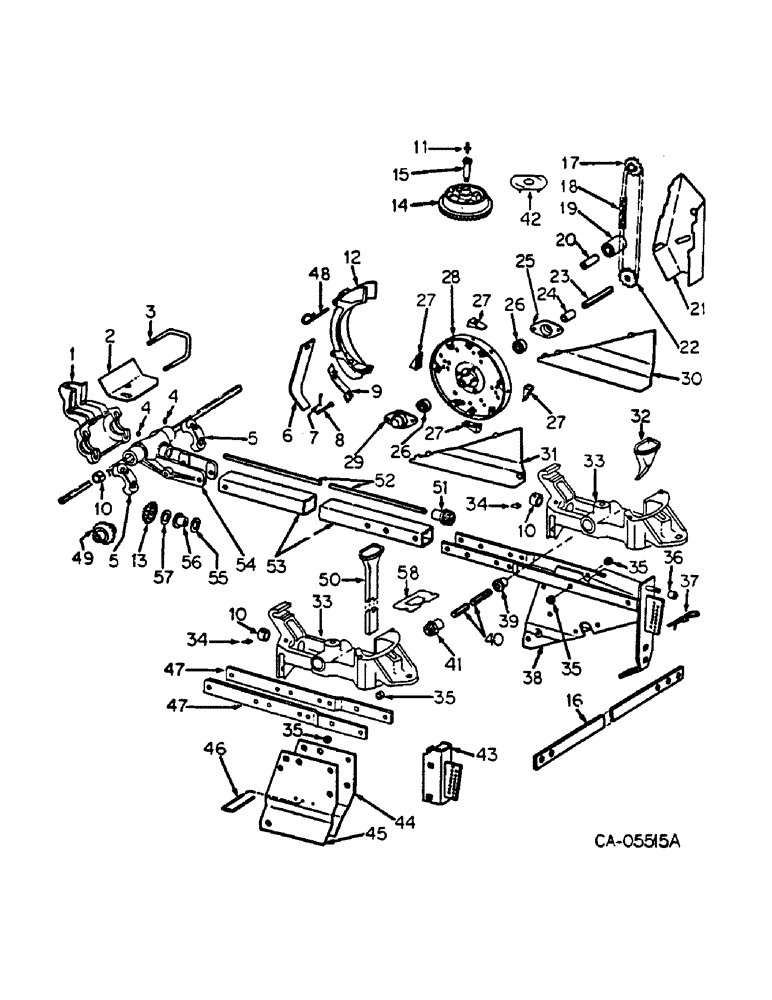

Схема запчастей Case IH 56-SERIES - (N-31) - HILL DROP AND DRILL UNITS, QUANTITIES SHOWN ARE PER ROW, MACHINES BUILT 1975 AND SINCE
26
35
3
27
37
25
5
39
33
36
33
29
15
34
20
44
42
27
6
52
54
58
34
21
13
35
28
30
4
1
40
16
31
19
23
47
48
24
35
14
22
17
47
50
5
18
49
2
41
32
27
11
57
9
46
8
38
43
55
45
35
26
51
56
7
10
53
12
10
4
10
27

Артикул

Название

Примечание

Количество

1

472318R1

BRACKET

drawbar head

1шт.

2

479135R1

SHIELD

miter gear

1шт.

3

525018R1

BOLT,U, 5/8" - 11 x 5 1/8"

V-BOLT, head bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

4

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub, drawbar bracket

2шт.

5

472319R1

CAP, unit drawbar bracket

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

472115R1

SUPPORT

COVER, front valve

1шт.

7

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Hill drop 3/32" x 3/4"

1шт.

8

471198R1

PIN

bottom casing, hill drop

1шт.

9

489471R1

GUIDE

drill, hill drop

1шт.

9

471208R1

GUIDE

drill, hill drop, used only with seed tube, 492771R1

1шт.

20945R1

HEADED PIN,1/4" x 2 3/4"

PIN, 1/4 x 2-3/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

10

454172R1

BUSHING

BEARING, bracket, 1 per bracket

1шт.

11

126098

FITTING

5/16 str drive type lub, ring gear bolt, 1 for drill, 2 for hill drop

1шт.

12

479129R92

VALVE SPRING

SPRING W/RIVETS, seed retaining, hill drop

1шт.

480994R1

RIVET, 3/16 x 1/2 csk-hd tubular

4шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

13/64 x 1/2 x 18 ga C-Z

4шт.

13

472322R2

GEAR WHEEL

GEAR, drill shaft, 18T

1шт.

14

472121R1

GEAR WHEEL

GEAR, ring, 40 teeth, drill

1шт.

14

492649R1

GEAR

ring, 40 teeth, hill drop

1шт.

15

493085R1

STUD,1/2" - 13 x 2 23/64"

BOLT, ring gear hub, drill

1шт.

15

472119R1

STUD,1/2" - 13 x 2 23/64"

BOLT, ring gear hub, hill drop

1шт.

16

472114R1

BAR, jockey, 1-1/2 in. high x 41-13/32 in. long, 1 for two row planters, 3 for four row planters

1шт.

16

473573R1

BAR, jockey, 1-1/2 in. high x 33-13/32 in. long, 5 for six row planters

1шт.

17

477300R21

SPROCKET ASSY, 12T rotor drive, hill drop

1шт.

18

CHAIN, rotor drive, hill drop, use 47 links of 1/2 in. single pitch #190 roller chain from a 10 ft roll marked, 489466R91, one connecting link, 489467R1, and one offset link, 489468R91

1шт.

19

468417R1

ROLLER

rotor drive chain tightener, plastic, hill drop

1шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8-16 x 3-1/2 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga znd

1шт.

22186R1

SQ HOLE WASHER,13/32" x 1 1/2" x .060", Sq Hole

13/32 x 1-1/2 x 16 ga znd sq-hole

1шт.

21751R1

WASHER

13/32 x 1-3/4 x 16 ga znd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

468460R1

SPACER

3/8 x 2.36 strong pipe, rotor chain tightener, hill drop

1шт.

21

481846R2

SHIELD ASSY, rotor chain, hill drop

1шт.

22

471200R2

DRIVE SPROCKET

SPROCKET, rotor 12T, hill drop

1шт.

23

471199R1

SHAFT

rotor, hill drop

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

471201R1

SPACER, rotor shaft sprocket, hill drop

1шт.

25

471203R1

FLANGE, rotor brg open, hill drop

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

59756C91

BEARING ASSY,0.563" ID x 1.375" OD x 0.4331"

ASSY, rotor shaft, hill drop

2шт.

27

468464R1

LUG

seed wheel, plastic, hill drop

4шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

10-24 x 1 C-Z slt-f-hd mach

4шт.

28

492809R91

WHEEL

W/SCREWS, plastic seed, hill drop

1шт.

120619

NUT

10-24 C-Z sq mach screw

8шт.

472692R1

SCREW, C-Z self-tap. binding

3шт.

29

471202R1

FLANGE, rotor brg closed, hill drop

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 type 1

2шт.

30

474186R1

PLATE ASSY.

PLATE, valve lower side RH, hill drop

1шт.

31

474185R1

SIDE ASSY.

PLATE, valve lower side LH, hill drop

1шт.

32

100440C1

TUBE, hill drop seed

1шт.

32

492771R1

TUBE, hill drop large seed

1шт.

33

62242C91

BRACKET

W/BEARING, 454172R1, hopper

1шт.

18899R1

BOLT,Sq Hd, 5/16"-18 x 2 1/2", G2

5/16-18 x 2-1/2 znd sq-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd short-sq-nk crg

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 znd hex-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

34

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF, 2 str lub, in hopper bracket

1шт.

35

472104R1

BUSHING

press wheel frame

2шт.

36

586329R1

SPACER,3/4" Tube x 13/16"

BUSHING, jockey bar

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach, drill

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 znd sq-nk crg, hill drop

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

37

473865R91

LINCH PIN

PIN W/SLT SPRING PIN, depth stop

2шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

2шт.

38

472107R91

RAIL ASSY, seed unit, hill drop

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8-16 x 2-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

39

472118R1

BUSHING

BEARING, hopper bracket, hill drop

2шт.

40

100439C1

SHAFT, seed wheel drive, hill drop

1шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 znd self-opening cot.

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

41

100438C1

GEAR, bevel drive, 10T, hill drop

1шт.

42

492651R1

PLATE

timing, hill drop

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 znd sq-hd mach

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

472234R92

BRACKET ASSY, drill

1шт.

44

472239R5

SHEET

PLATE, rail side right, drill

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

45

472238R5

SHEET

PLATE, rail side left, drill

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

46

472241R1

ANCHOR, seed tube, drill

1шт.

47

489874R1

RAIL, drawbar long, drill

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

48

471207R1

PIN

quick attachable cot.

1шт.

49

472321R3

GEAR

seed drive shaft, l8T

1шт.

50

472240R2

TUBE

drill seed, used w/bean and corn planting equipment

1шт.

50

541876R1

TUBE

drill seed, used w/cotton planting equipment

1шт.

51

472122R2

GEAR WHEEL

GEAR, drive, 10T

1шт.

52

489875R1

SHAFT, drive, drill

1шт.

52

472123R2

ROD

SHAFT, drive, hill drop

1шт.

21979R1

PIN, 1/8 x 1-1/8 C-Z self-opening cot., 2 used w/two row drill and four row hill drop

1шт.

22198R1

WASHER

21/32 x 1-1/4 x .048

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

53

489873R1

DRAWBAR, unit, drill

1шт.

53

472233R1

DRAWBAR, unit, hill drop

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

54

549162R91

BRACKET W/BEARING, 454172R1, unit drawbar

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

1шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2-13 x 4-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

55

477313R1

WASHER

WASHER, gear wear

1шт.

56

473850R1

BUSHING

insert

1шт.

57

472323R1

WASHER

gear wear

2шт.

58

134060C1

ADAPTER

seed tube, used w/seed tube 472240R2

1шт.
