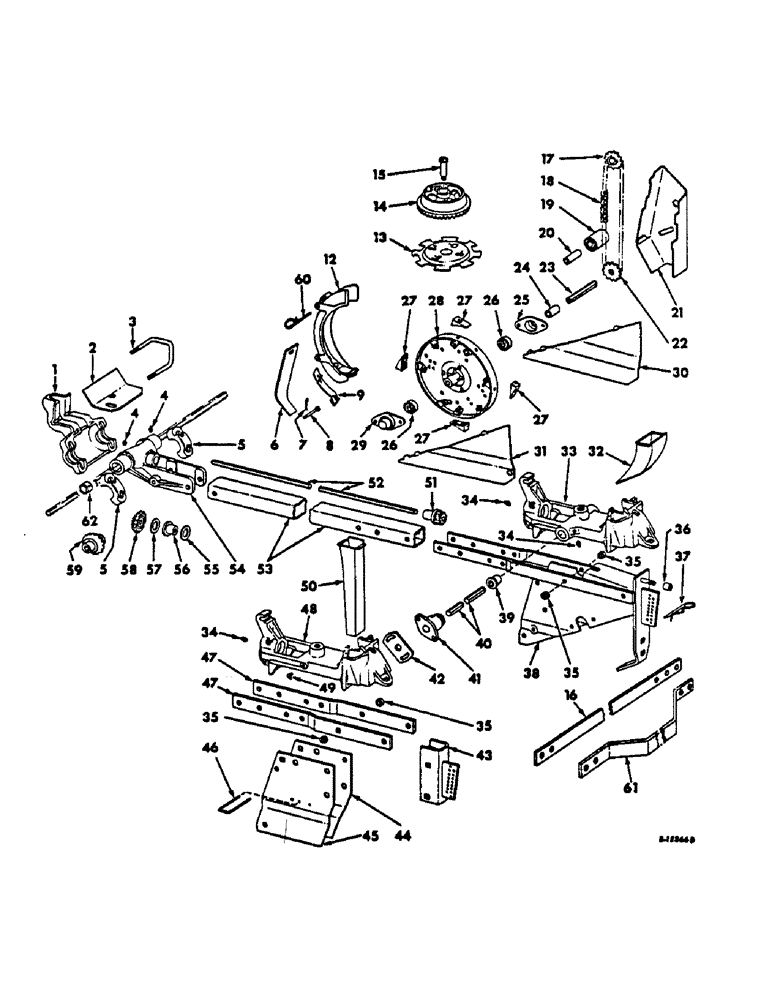

Запчасти Case IH 56-SERIES (N-28) - HILL DROP AND DRILL UNITS, QUANTITIES SHOWN ARE PER ROW, MACHINES BUILT 1966 TO 1975

1

472318R1

BRACKET

drawbar head

1шт.

2

479135R1

SHIELD

miter gear

1шт.

3

525018R1

BOLT,U, 5/8" - 11 x 5 1/8"

V-BOLT, head bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

4

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub, drawbar bracket

2шт.

5

472319R1

CAP, unit drawbar bracket

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

472115R1

SUPPORT

COVER, front valve

1шт.

7

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Hill drop 3/32" x 3/4"

1шт.

8

471198R1

PIN

bottom casing, hill drop

1шт.

9

472127R1

DEFLECTOR, drill tube, hill drop, 1966 to 1968, used with 479129R91 only

1шт.

9

489471R1

GUIDE

drill, hill drop, 1968 and since

1шт.

20945R1

HEADED PIN,1/4" x 2 3/4"

PIN, 1/4 x 2-3/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

10

(Not used in this application)

1шт.

11

(Not used in this application)

1шт.

12

479129R92

VALVE SPRING

SPRING W/RIVETS, seed retaining, hill drop

1шт.

480994R1

RIVET, 3/16 x 1/2 C-Z csk-hd tubular

4шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

13/64 x 1/2 x 18 ga C-Z

4шт.

13

472128R1

PLATE, accumulator, hill drop

1шт.

14

472121R1

GEAR WHEEL

GEAR, ring, 40 teeth

1шт.

15

479132R1

BOLT,1/2" - 13 x 2 23/64"

ring gear hub

1шт.

16

472114R1

BAR, jockey, for 34 to 40 inch row spacing, one used for 2-row planters, 3 used for 4-row planters, 1-1/2 in. high x 41-13/32 in. long

1шт.

16

473573R1

BAR, jockey, for 28 to 32 inch row spacing, one for 2-row planters, 5 for 6-row planters, 1-1/2 in. high x 33-13/32 in. long

1шт.

17

477300R21

SPROCKET ASSY, 12T rotor drive, hill drop

1шт.

18

CHAIN, rotor drive, hill drop, use 47 links of 1/2 in. single pitch #190 roller chain from a 10 ft roll marked, 489466R91, one connecting link, 489467R1, and one offset link, 489468R91

1шт.

19

468417R1

ROLLER

rotor drive chain tightener, plastic, hill drop

1шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8-16 x 3-1/2 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga znd

1шт.

22186R1

SQ HOLE WASHER,13/32" x 1 1/2" x .060", Sq Hole

13/32 x 1-1/2 x 16 ga znd sq-hole

1шт.

21751R1

WASHER

13/32 x 1-3/4 x 16 ga znd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

468460R1

SPACER

3/8 x 2.36 strong pipe, rotor chain tightener, hill drop

1шт.

21

481846R2

SHIELD ASSY, rotor chain, hill drop

1шт.

22

471200R2

DRIVE SPROCKET

SPROCKET, rotor 12T, hill drop

1шт.

23

471199R1

SHAFT

rotor, hill drop

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

471201R1

SPACER, rotor shaft sprocket, hill drop

1шт.

25

471203R1

FLANGE, rotor brg open, hill drop

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

59756C91

BEARING ASSY,0.563" ID x 1.375" OD x 0.4331"

ASSY, rotor shaft, hill drop

2шт.

27

468464R1

LUG

seed wheel, plastic, hill drop

4шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

10-24 x 1 C-Z slt-f-hd mach

4шт.

28

492809R91

WHEEL

W/SCREWS, plastic seed, hill drop

1шт.

120619

NUT

10-24 C-Z sq mach screw

8шт.

472692R1

SCREW, C-Z self-tap. binding

3шт.

29

471202R1

FLANGE, rotor brg closed, hill drop

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

474186R1

PLATE ASSY.

PLATE, valve lower side RH, hill drop

1шт.

31

474185R1

SIDE ASSY.

PLATE, valve lower side LH, hill drop

1шт.

32

472120R1

TUBE

hill drop

1шт.

33

472300R2

BRACKET, hopper, hill drop

1шт.

18898R1

BOLT, 5/16-18 x 2-1/4 C-Z sq-hd mach

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short-sq-nk crg

1шт.

17675R1

BOLT, 1/2-13 x 3-1/2 hex-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing

1шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

34

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF, 2 str lub, in hill drop hopper bracket

2шт.

34

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF, 2 str lub, in drill hopper bracket

1шт.

35

472104R1

BUSHING

press wheel frame

2шт.

36

586329R1

SPACER,3/4" Tube x 13/16"

BUSHING, jockey bar

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach, drill

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 znd sq-nk crg, hill drop

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

37

473865R91

LINCH PIN

PIN W/SLT SPRING PIN, depth stop

2шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

2шт.

38

472107R91

RAIL ASSY, seed unit, hill drop

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8-16 x 2-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

39

472118R1

BUSHING

BEARING, hopper bracket, hill drop

2шт.

40

472124R1

SHAFT, seed wheel drive, hill drop

1шт.

13066R1

Pin, Split (Cotter), 1/8" x 1", self-opening 1/8" x 1"

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

41

472125R1

GEAR

bevel 10T, 7 pitch, hill drop

1шт.

16135DA

WASHER

13/32 x 1 x 4 ga

2шт.

42

479130R1

HUB, timing, hill drop

1шт.

18465R1

BOLT,Sq Hd, 3/8"-16 x 1 1/4", G2

3/8-16 x 1-1/4 C-Z sq-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

43

472234R92

BRACKET ASSY, drill

1шт.

44

472239R5

SHEET

PLATE, rail side right, drill

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

45

472238R5

SHEET

PLATE, rail side left, drill

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

46

472241R1

ANCHOR, seed tube, drill

1шт.

47

472237R1

RAIL, drawbar, drill

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

48

472301R4

BRACKET, hopper, drill

1шт.

18898R1

BOLT, 5/16-18 x 2-1/4 C-Z sq-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z short-sq-nk crg

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

49

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub, in hopper bracket, drill

1шт.

50

472240R2

TUBE

drill

1шт.

51

472122R2

GEAR WHEEL

GEAR, drive, 10T

1шт.

52

472123R2

ROD

SHAFT, drive

1шт.

13079R1

PIN, 1/8 x 1-1/8 self-opening cot.

2шт.

615132R1

WASHER

21/32 x 1-1/8 x 18 ga

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

53

472233R1

DRAWBAR, unit

1шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2-13 x 4-1/2 hex-hd mach

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

54

549162R91

BRACKET W/BEARING, 454172R1, unit drawbar

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

1шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2-13 x 4-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

55

477313R1

WASHER

WASHER, gear wear

1шт.

56

473850R1

BUSHING

insert

1шт.

57

472323R1

WASHER

gear wear

2шт.

58

472322R2

GEAR WHEEL

GEAR, drill shaft, 18T

1шт.

59

472321R3

GEAR

seed drive shaft, 18T

1шт.

60

471207R1

PIN

quick attachable cot.

1шт.

61

SUPPORT, arched jockey, discontinued for service

2шт.

62

454172R1

BUSHING

BEARING, bracket, 1 per bracket

1шт.
