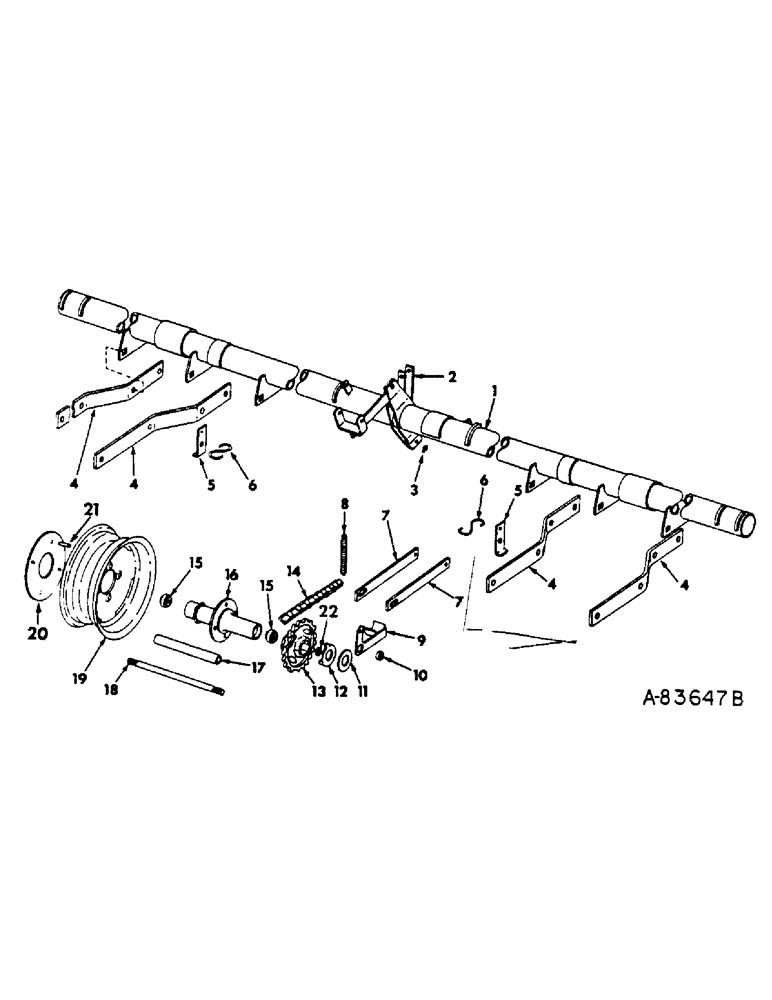

Запчасти Case IH 56-SERIES (N-26) - FRAME AND WHEEL, FOR 6 ROW PLANTERS, MACHINES BUILT 1975 AND SINCE

1

484027R92

FRAME W/CYLINDER BEARING BRACKET, adjustable wheel, 28 to 40 in. row spacing

1шт.

2

472275R2

BRACKET

BEARING, cylinder bracket

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket bearing

1шт.

4

484037R1

ARM, wheel offset

2шт.

4

484038R2

ARM, wheel straight

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

473562R1

ANCHOR, spring

2шт.

6

474374R1

HOOK

S-HOOK

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

472299R1

LINK

transport

2шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

8

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

9

490009R1

ARM

ASSY, chain tightener LH

1шт.

9

490010R1

ARM

ASSY, chain tightener RH

1шт.

10

484033R1

RING

chain tightener

2шт.

11

484034R1

WASHER

retaining

2шт.

12

484035R1

WASHER

sprocket wear

2шт.

13

484030R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

2шт.

14

CHAIN, main drive, use 57 links of 1-1/4 agricultural ext pitch transmission roller chain from 10 ft roll marked 569089R91, 1 offset link, 456929R91, and 1 coupler link, 456980R91

2шт.

15

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

wheel axle ball

4шт.

16

484029R1

HUB

wheel

2шт.

17

484031R2

SPACER

wheel axle

2шт.

18

484036R1

MOUNTING ROD

AXLE, wheel

2шт.

21844R1

WASHER

25/32 x 1-1/8 x 16 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

19

463034R1

RIM

WHEEL ASSY, planter drive, 14 x 5KB, serial no. 9599 and below, rim for 7.50 x 14 or 8.00 x 14 tires

2шт.

387841R91

VALVE

TR-403 tire

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

19

622192R91

WHEEL

planter drive, 15 in., serial no. 9600 and above, for 7.60-15 tire

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

387897R91

VALVE STEM

VALVE, TR-415 tire

2шт.

20

(Not used in this application)

1шт.

21

(Not used in this application)_

1шт.

22

484032R1

WASHER

2шт.
