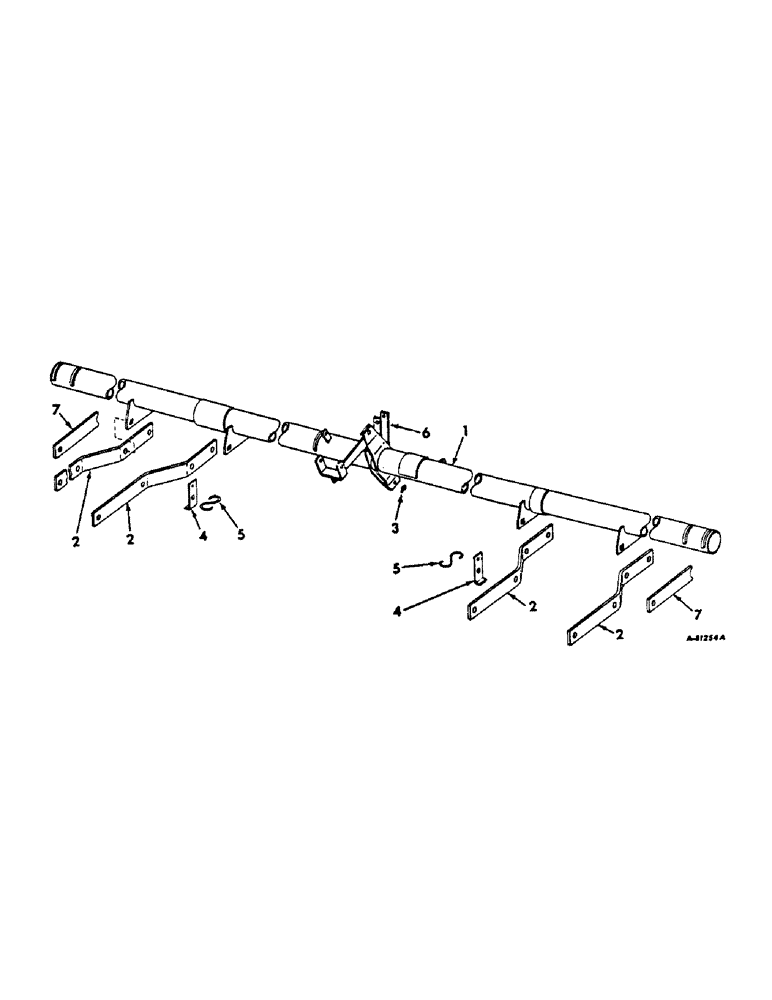

Запчасти Case IH 56-SERIES (N-24) - ADJUSTABLE WHEEL FRAME, FOR 4-ROW PLANTERS

1

479143R93

FRAME W/CYLINDER BRACKET BEARING, adjustable wheel, 28 to 40 in. row spacing

1шт.

21636R1

PIN, 1/4 x 1-1/2 self-opening cot.

2шт.

2

479138R1

BRACKET, wheel arm, serial no. 9599 and below

4шт.

2

141351C1

BRACKET, wheel arm, serial no. 9600 and above

4шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

4

473562R1

ANCHOR, spring

2шт.

5

474374R1

HOOK

S-HOOK

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

472275R2

BRACKET

BEARING, cylinder bracket

1шт.

7

481819R1

BAR, wheel rail brace

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
