Запчасти Case IH 56-SERIES (N-23) - DUAL WHEEL FRAME, FOR 4-ROW PLANTERS, BUILT 1966 TO 1967

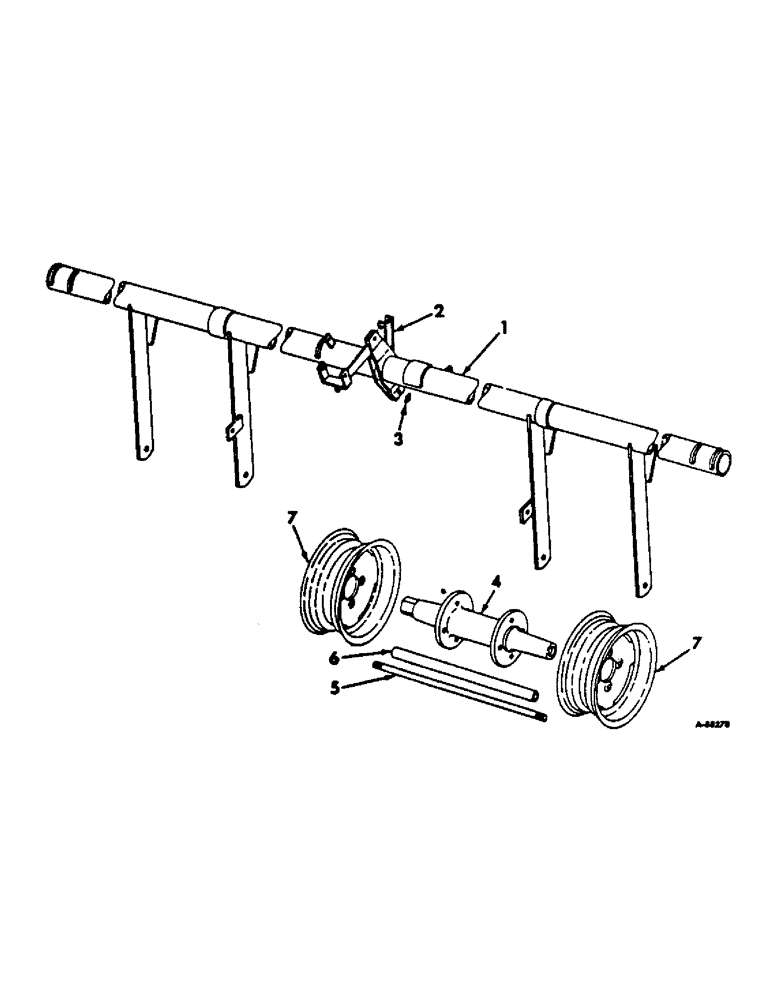

Схема запчастей Case IH 56-SERIES - (N-23) - DUAL WHEEL FRAME, FOR 4-ROW PLANTERS, BUILT 1966 TO 1967
4
7
2
6
1
3
7
5

Артикул

Название

Примечание

Количество

1

FRAME ASSY, dual wheel, 38 to 40 in. row spacing, discontinued for service

1шт.

2

472275R2

BRACKET

BEARING, cylinder bracket

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

4

473560R1

HUB, dual wheel

2шт.

5

473563R1

AXLE, wheel

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

473561R1

TUBE, dual wheel

2шт.

7

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter, 14 x 5J

2шт.

7

455169R92

WHEEL

ASSY, planter, 15 x 4-1/2KB

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

Выбрано товаров: 11
