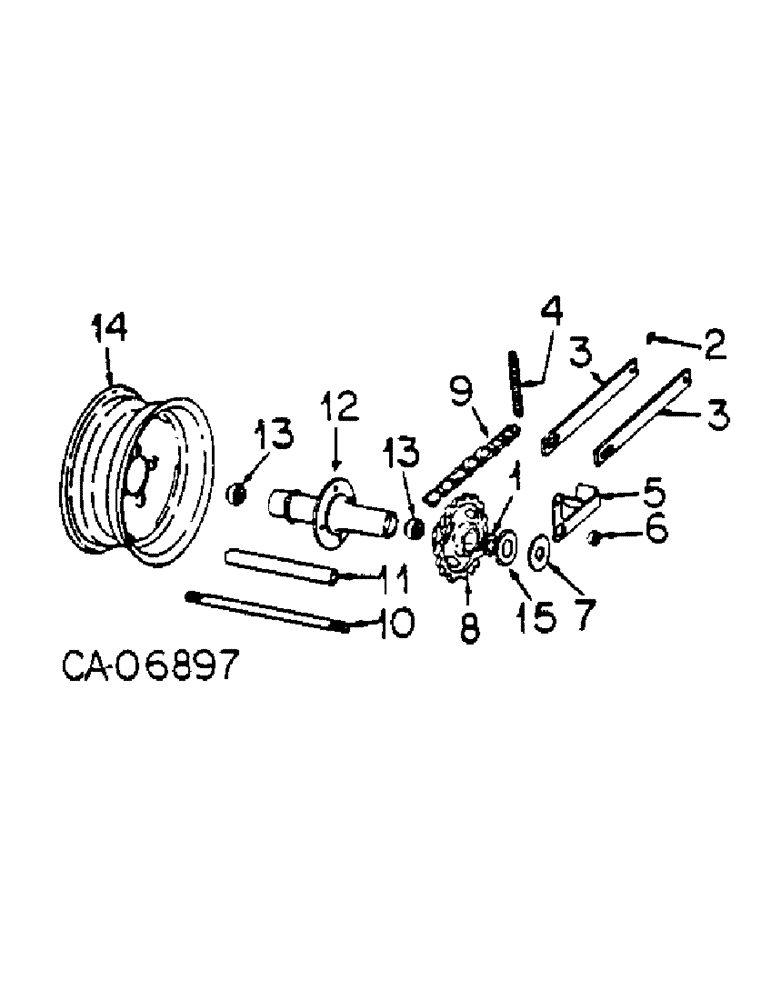

Запчасти Case IH 56-SERIES (N-22) - FRAME AND WHEEL, 4 ROW PLANTERS W/SERIAL NO. 9600 AND ABOVE

1

484032R1

WASHER

2шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cyl bracket arm

1шт.

3

472299R1

LINK

transport

2шт.

21805R1

PIN

5/8 x 2-1/8 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

4

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

21633R1

PIN, 3/16 x 1-1/4 znd self-opening cot.

2шт.

5

490009R1

ARM

ASSY, drive chain tightener LH

1шт.

5

490010R1

ARM

ASSY, drive chain tightener RH

1шт.

6

484033R1

RING

chain tightener

2шт.

7

484034R1

WASHER

retaining

2шт.

8

484030R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

2шт.

9

CHAIN, main wheel drive, use 57 links of 1-1/4 agricultural ext pitch transmission roller chain from a 10 ft roll marked 569089R91, (1) offset link 456929R91, and (1) coupler link 456980R91

1шт.

10

484036R1

MOUNTING ROD

AXLE, wheel

2шт.

21844R1

WASHER

.781 x 1.125 x .054

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

11

484031R2

SPACER

wheel axle

2шт.

12

484029R1

HUB

wheel

2шт.

13

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

spindle ball

4шт.

14

622192R91

WHEEL

planter drive, 15 in., for 7.60-15 tire

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

387897R91

VALVE STEM

VALVE, TR-415 tire

2шт.

15

484035R1

WASHER

wear

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga znd

2шт.
