Запчасти Case IH 56-SERIES (N-18) - HITCH, FOR TWO AND FOUR ROW PLANTERS, SIX ROW PLANTERS BUILT 1975 & SINCE

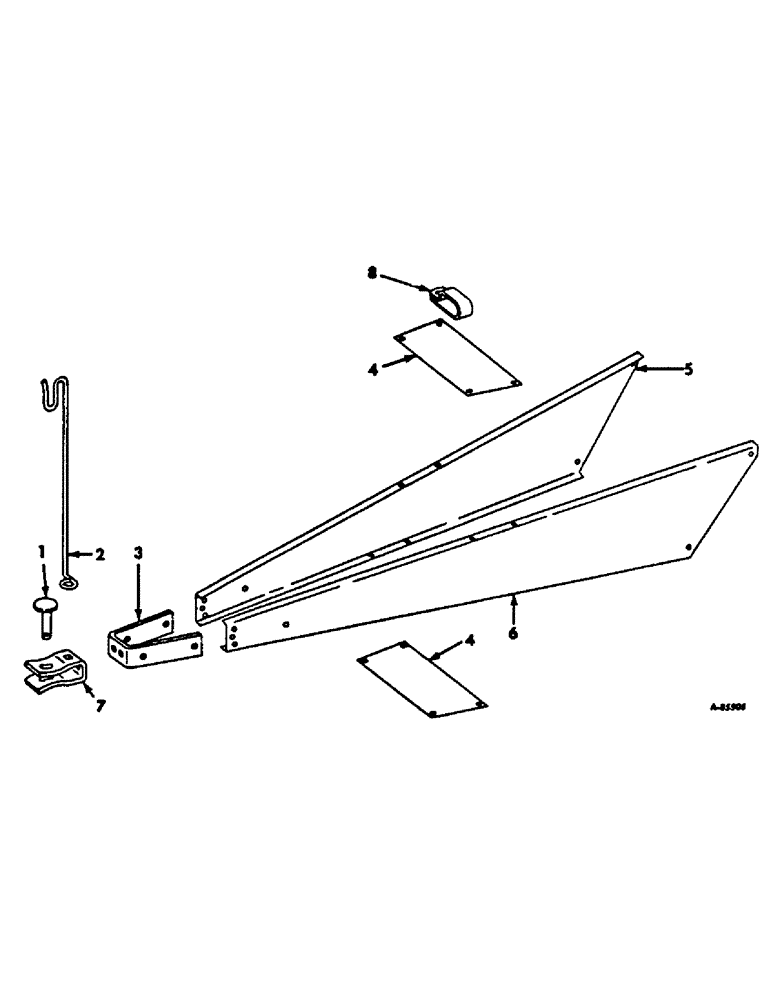

Схема запчастей Case IH 56-SERIES - (N-18) - HITCH, FOR TWO AND FOUR ROW PLANTERS, SIX ROW PLANTERS BUILT 1975 & SINCE
8
3
6
5
1
4
2
7
4

Артикул

Название

Примечание

Количество

1

480791R1

PIN

hitch

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

2

651793R2

SUPPORT

hydraulic hose

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

3

472232R1

BRACKET, clevis

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

24864R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

24534R1

NUT, 1/2-13 znd ESNA lock type 8 1/2"-13, GC

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga znd

1шт.

120387

WASHER,3/8" x 3/4" x .060"

.375 x .750 x .054

1шт.

4

472230R1

BAR

SHEET, hitch tie

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

472227R92

TRAILER HITCH

HITCH ASSY, right

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

472226R92

HITCH ASSY, left

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

484505R2

YOKE

CLEVIS, hitch bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 znd type 8 hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

368243R1

CLAMP, hyd hose, for 2-row planters

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

1шт.

Выбрано товаров: 33
