Запчасти Case IH 56-SERIES (N-17[A]) - HITCH PLATES FOR 2 AND 4 ROW PLANTERS BUILT 1966 TO 1975

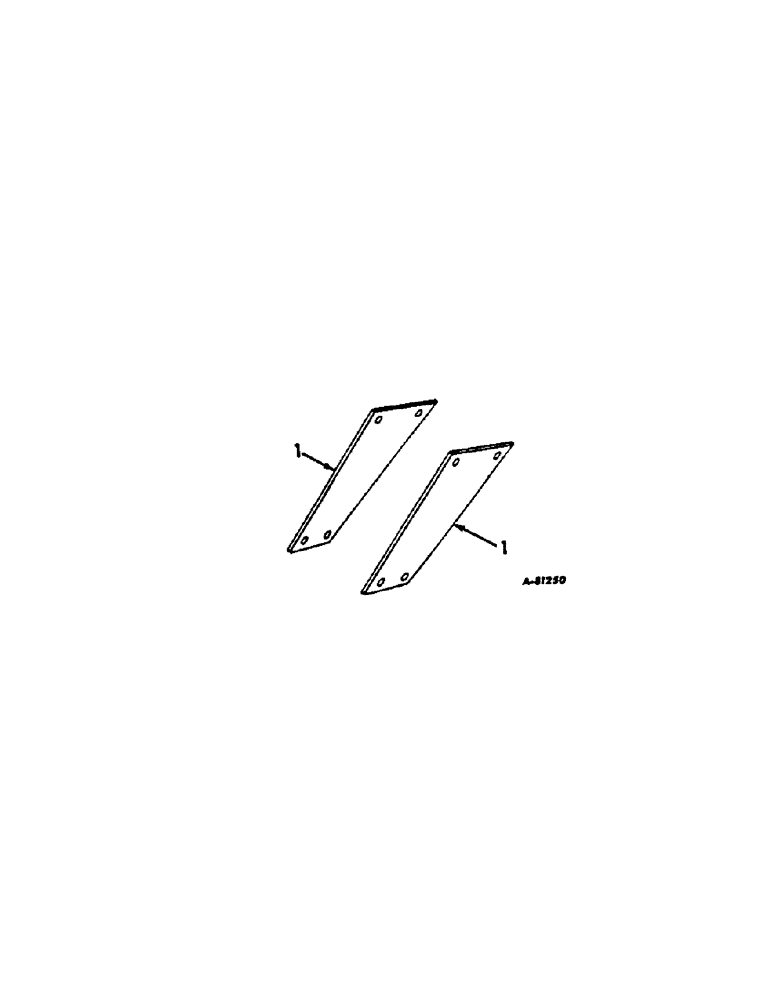

Схема запчастей Case IH 56-SERIES - (N-17[A]) - HITCH PLATES FOR 2 AND 4 ROW PLANTERS BUILT 1966 TO 1975
1
1

Артикул

Название

Примечание

Количество

1

479611R1

PLATE, hitch adjusting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

Выбрано товаров: 4
