Запчасти Case IH 56-SERIES (N-15) - DRIVE UNIT, FOR 6-ROW PLANTERS, MACHINES BUILT 1975 AND

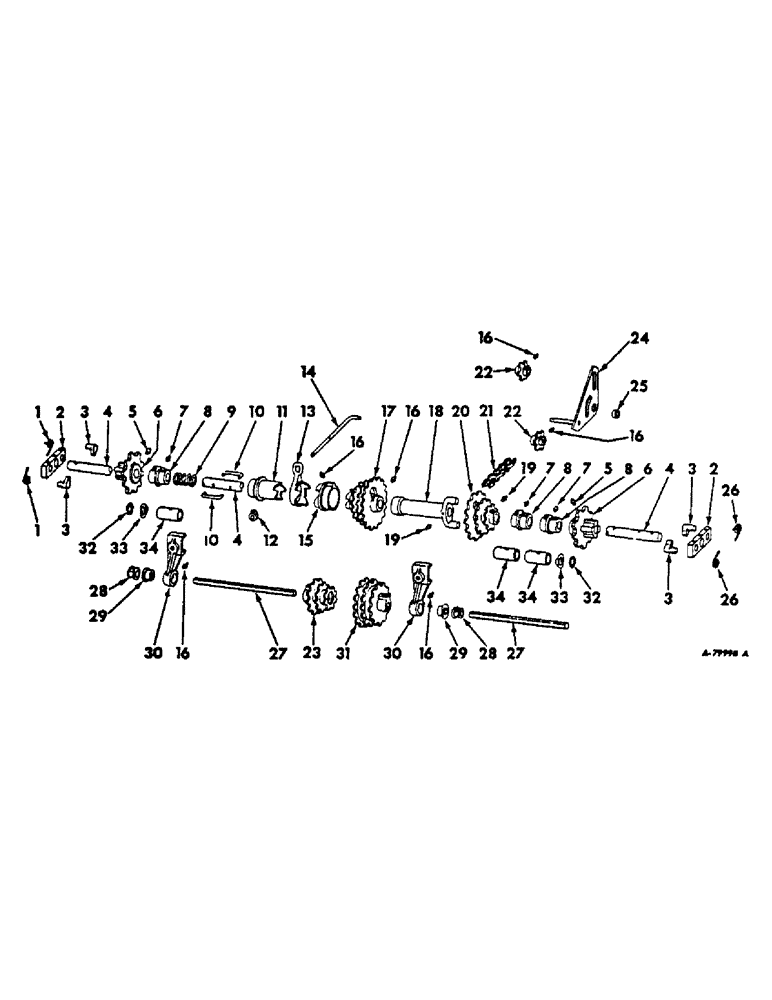

Схема запчастей Case IH 56-SERIES - (N-15) - DRIVE UNIT, FOR 6-ROW PLANTERS, MACHINES BUILT 1975 AND
13
8
3
6
5
4
32
15
19
3
28
8
16
16
34
20
30
3
19
7
27
7
25
33
10
11
33
3
29
31
8
18
7
16
26
21
2
30
17
22
16
34
26
23
22
16
34
12
14
24
4
32
1
2
16
5
9
1
27
29
6
28
4
10

Артикул

Название

Примечание

Количество

1

472721R1

SPRING

wheel ratchet LH

2шт.

2

472328R1

CARRIER

pawl

2шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 C-Z std-hd

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

2шт.

3

472329R1

PAWL

drive sprocket

4шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

4шт.

4

481813R2

ROD

main drive

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

4шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub, in main wheel driven sprocket

2шт.

6

484026R1

DRIVE SPROCKET

SPROCKET, main wheel drive, 10T, serial no. 9600 and above

2шт.

6

479140R1

DRIVE SPROCKET

SPROCKET, main wheel drive, 10T, serial no. 9599 and below

2шт.

7

66584D

FITTING

3/16 drive type str lub

3шт.

8

481812R11

BEARING ASSY

ASSY, main drive shaft

3шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

3шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

9

269182R1

SPRING

clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

10

PO23196

KEY

clutch

2шт.

11

472334R3

DRIVE ASSY.

DRIVER, clutch, serial no. 9599 and below

1шт.

11

113262C1

BLOCK DRIVER

DRIVER, clutch, serial no. 9600 and above

1шт.

12

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, control

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

1шт.

13

472332R3

CAM

clutch

1шт.

14

473331R2

ROD, throwout

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

15

472333R3

BUSHING,2.165" ID x 3" OD x 1.93"

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

16

66584D

FITTING

3/16 str drive type lub

4шт.

17

472335R2

DRIVE SPROCKET

SPROCKET, main drive, 18T, 16T, 13T, serial no. 9599 and below

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

21827R1

PIN, 1/4 x 1-1/4 C-Z light coiled spring

1шт.

17

141248C1

SPROCKET ASSY.

SPROCKET, main drive, 18T, 16T, 13T, serial no. 9600 and above

1шт.

18

472433R2

COUPLING

CONNECTOR, drive sprocket

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, drive sprocket connector and fertilizer drive sprocket

2шт.

20

472434R1

SPROCKET ASSY.

SPROCKET, fertilizer drive, 17T, 12T and 8T

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

21

CHAIN, drill shaft drive, use 39 links of 1 in. extended pitch agricultural roller chain from 10 ft. roll marked 569088R91, (1) 457113R91 straight connecting link and (1) 457114R91 offset connecting link

1шт.

22

472344R2

DRIVE SPROCKET

SPROCKET, 6T idler

2шт.

23

472337R1

SPROCKET ASSY.

SPROCKET, main drill shaft, 12T, 10T, 8T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

24

472339R91

PLATE

ASSY, chain tightener

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.

25

622567R1

WASHER

BUSHING, chain tightener

1шт.

26

472722R1

SPRING

wheel ratchet RH

2шт.

27

480057R1

BAR

ROD, drill

1шт.

28

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, drill shaft

2шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

2шт.

29

625569R1

HUB CAP

BEARING, insert

2шт.

30

472317R1

BRACKET

brg

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

31

473862R1

SPROCKET ASSY.

SPROCKET, main drill shaft

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

32

589937R1

WASHER

wear

5шт.

33

481810R1

WASHER

keyed

2шт.

34

484060R1

BUSHING

steel back bronzed

3шт.

Выбрано товаров: 67
