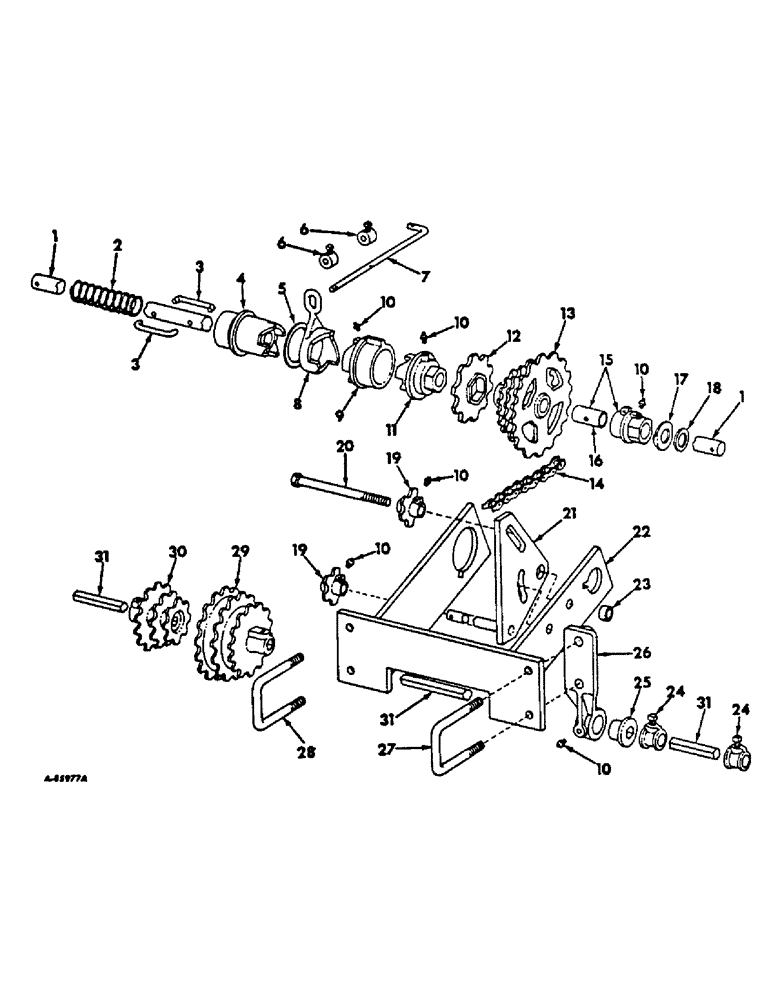

Запчасти Case IH 56-SERIES (N-13) - DRIVE UNIT, FOR 6-ROW PLANTERS, MACHINES BUILT 1966 TO 1975

1

484358R2

ROD MAIN DRIVE

2шт.

21983R1

PIN, 3/16 x 1-3/4 self-opening cot.

4шт.

2

269182R1

SPRING

clutch

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

3

PO23196

KEY

clutch

4шт.

4

472334R3

DRIVE ASSY.

DRIVER, clutch, used w/sprocket driver 484199R1

2шт.

4

113262C1

BLOCK DRIVER

DRIVER, clutch, used w/sprocket driver 113263C1

1шт.

5

479139R1

THRUST WASHER

thrust

2шт.

6

514547R11

COLLAR CLAMP

COLLAR ASSY, control

4шт.

142671

SET SCREW

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

4шт.

7

486972R1

ROD, clutch control

2шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

4шт.

8

472332R3

CAM

clutch

2шт.

9

472333R3

BUSHING,2.165" ID x 3" OD x 1.93"

clutch

2шт.

10

66584D

FITTING

3/16 drive type str lub

12шт.

11

113263C1

BLOCK DRIVER

DRIVER, sprocket brg, replaces 484199R1 by also ordering one clutch driver 113262C1

2шт.

12

484357R1

SPROCKET ASSY.

SPROCKET, main drive, 10T

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

13

482443R1

SPROCKET ASSY.

SPROCKET, main drive, 18T, 16T, 13T

1шт.

21941R1

PIN, 5/16 x 1-7/8 C-Z std-hd

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

14

CHAIN, drill shaft drive, use 39 links of 1 in. extended pitch agricultural roller chain from 10 ft. roll marked 569088R91, 1 straight connecting link 457113R91 and 1 offset side connecting link, 457114R91

2шт.

457114R91

CHAIN LINK

LINK, offset, as extras

2шт.

15

481812R11

BEARING ASSY

ASSY, main drive shaft

2шт.

16

484060R1

BUSHING

steel back bronzed

2шт.

17

481810R1

WASHER

keyed

2шт.

18

589937R1

WASHER

wear

2шт.

19

472344R2

DRIVE SPROCKET

SPROCKET, idler, 6T

4шт.

20

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

1/2-13 x 6 C-Z hex-hd cap

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

4шт.

21

484363R11

PLATE ASSY, tightener mounting

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

22

484359R91

SUPPORT ASSY, clutch

2шт.

23

49335K

SPACER,1/2" X-Strng Pipe x .406"

chain tightener

2шт.

24

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, drill rod

4шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

4шт.

25

625569R1

HUB CAP

BEARING, insert

2шт.

26

484355R1

BRACKET, bearing

2шт.

27

484356R1

BOLT

U

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

28

478243R1

BOLT,1/2" - 13 x 3.6"

U

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

29

473862R1

SPROCKET ASSY.

SPROCKET, drill rod

2шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

22087R1

PIN, 7/8 x 4-3/4 C-Z std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

30

472337R1

SPROCKET ASSY.

SPROCKET, drill rod 12T, 10T, 8T

2шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

22087R1

PIN, 7/8 x 4-3/4 C-Z std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

31

484365R1

ROD, drill

2шт.
