Запчасти Case IH 56-SERIES (N-09) - DRIVE UNIT, FOR 2-ROW PLANTERS

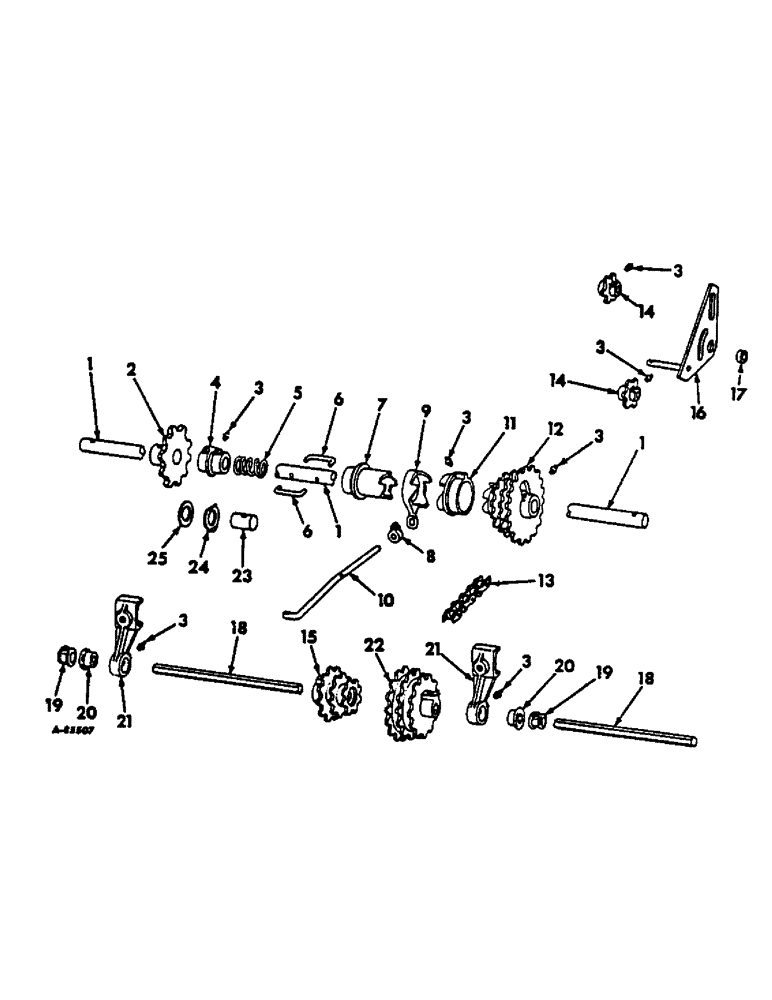

Схема запчастей Case IH 56-SERIES - (N-09) - DRIVE UNIT, FOR 2-ROW PLANTERS
3
20
24
21
16
19
22
1
1
4
19
3
9
3
5
14
10
8
7
11
6
18
25
23
20
3
3
1
2
13
14
6
15
21
3
18
3
12
17

Артикул

Название

Примечание

Количество

1

481917R2

ROD, main drive

1шт.

21982R1

PIN, 3/16 x 1-1/2 C-Z self-opening cot.

2шт.

668752R1

WASHER

.906 x 1.250 x .054

3шт.

2

481916R1

SPROCKET ASSY.

SPROCKET, main wheel driven, serial no. 9599 and below

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

21857R1

PIN, 5/16 x 1-7/8 C-Z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

1шт.

2

141222C1

SPROCKET, main wheel driven, serial no. 9600 and above

1шт.

3

66584D

FITTING

3/16 drive type str lub

7шт.

4

481812R11

BEARING ASSY

W/BUSHING, main drive shaft

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

21761R1

WASHER

.906 x 1.500 x .054

1шт.

5

269182R1

SPRING

clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

6

PO23196

KEY

clutch

2шт.

7

472334R3

DRIVE ASSY.

DRIVER, clutch, serial no. 9599 and below

1шт.

7

113262C1

BLOCK DRIVER

DRIVER, clutch, serial no. 9600 and above

1шт.

8

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, control

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

1шт.

9

472332R3

CAM

clutch

1шт.

10

484893R1

ROD, clutch control

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

3шт.

11

472333R3

BUSHING,2.165" ID x 3" OD x 1.93"

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

12

472335R2

DRIVE SPROCKET

SPROCKET, main drive, 18T, 16T, 13T, serial no. 9599 and below

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

21827R1

PIN, 1/4 x 1-1/4 LT cld-spr

1шт.

12

141248C1

SPROCKET ASSY.

SPROCKET, main drive, 18T, 16T, 13T, serial no. 9600 and above

1шт.

13

CHAIN, drill shaft, use 39 links of 1 in. extended pitch agricultural roller chain from 10 ft. roll marked 569088R91, (1) 457113R91 straight connecting link and (1) 457114R91 offset connecting link

1шт.

14

472344R2

DRIVE SPROCKET

SPROCKET, 6T idler

2шт.

15

472337R1

SPROCKET ASSY.

SPROCKET, main drill shaft, 12T, 10T, 8T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

16

472339R91

PLATE

ASSY, chain tightener

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.

17

622567R1

WASHER

BUSHING, chain tightener

1шт.

18

481918R1

BAR

SHAFT, drill

1шт.

19

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, drill rod

2шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

2шт.

20

625569R1

HUB CAP

BEARING, insert

2шт.

21

472317R1

BRACKET

bearing

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

22

473862R1

SPROCKET ASSY.

SPROCKET, main drill shaft

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 C-Z sq-hd cup-pt set

1шт.

23

484060R1

BUSHING

steel back bronzed

1шт.

24

481810R1

WASHER

keyed

1шт.

25

589937R1

WASHER

wear

1шт.

Выбрано товаров: 57
