Запчасти Case IH 56-SERIES (N-08) - MAIN FRAME AND CYLINDER BRACKET, FOR 6-ROW PLANTERS, BUILT

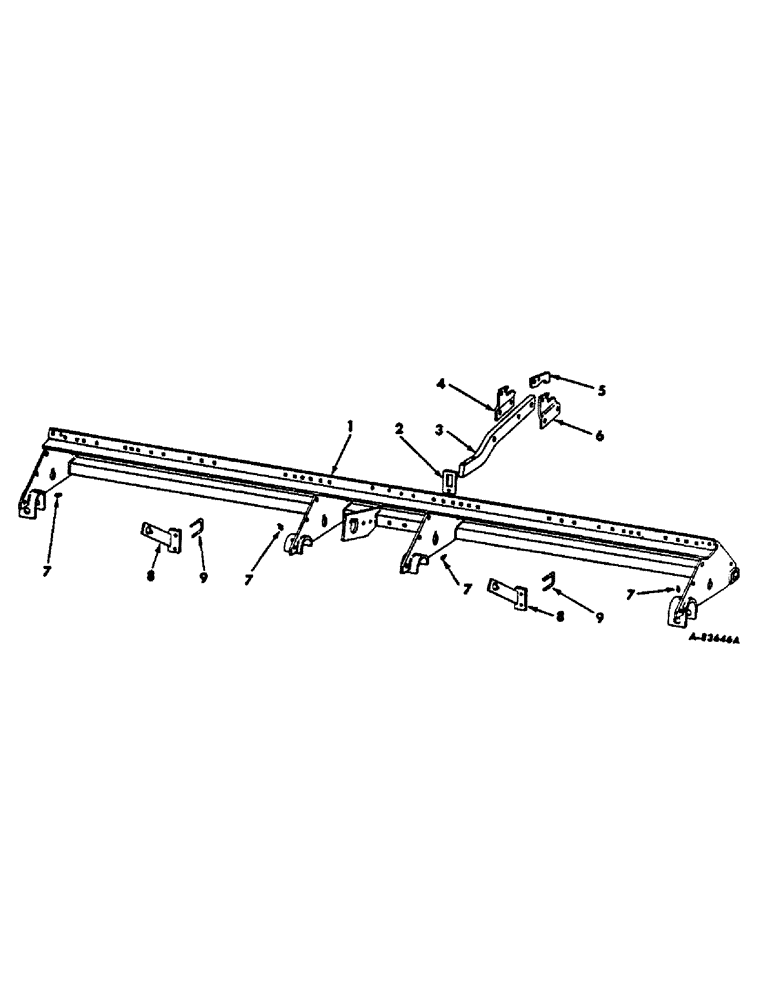

Схема запчастей Case IH 56-SERIES - (N-08) - MAIN FRAME AND CYLINDER BRACKET, FOR 6-ROW PLANTERS, BUILT
9
8
6
7
9
5
8
7
3
4
7
7
1
2

Артикул

Название

Примечание

Количество

1

480049R94

FRAME ASSY, main

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga znd

4шт.

2

472315R1

ANCHOR, cylinder bracket

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

472311R1

BRACKET, cylinder

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

472314R1

SUPPORT, cylinder right

1шт.

23885R1

PIN, 1/2 x 1-3/8 znd std-hd

1шт.

21820R1

PIN, 3/16 x 1-1/8 C-Z self-opening cot.

1шт.

5

472316R3

SUPPORT

RETAINER, cylinder

1шт.

6

472313R1

SUPPORT, cylinder left

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 taper drive thd 45 deg angle lub

4шт.

8

480052R91

SUPPORT ASSY, bearing

2шт.

9

478243R1

BOLT,1/2" - 13 x 3.6"

U-BOLT, brg support

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 24
