Запчасти Case IH 500 (B-11) - WHEELS

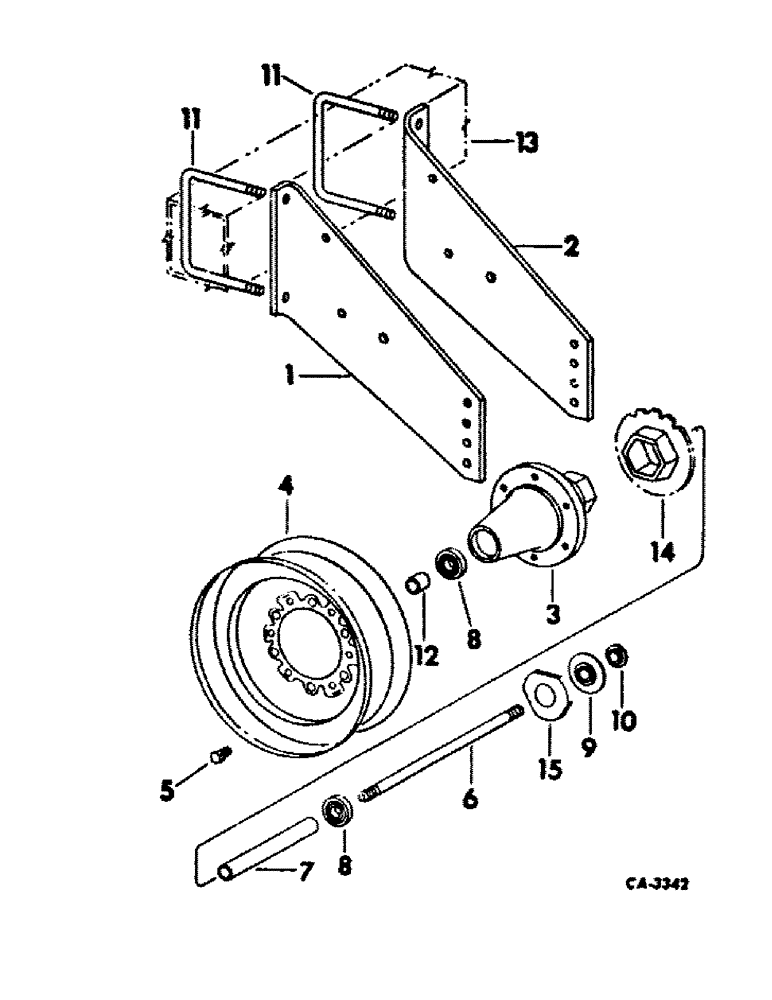

Схема запчастей Case IH 500 - (B-11) - WHEELS
11
10
11
15
3
14
13
1
5
4
6
12
8
7
8
9
2

Артикул

Название

Примечание

Количество

1

58203C2

ARM, wheel LH, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

2

58204C2

ARM, wheel RH, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

3

484029R1

HUB

wheel, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

4

463034R1

RIM

WHEEL, 14 in., for 8.00-14 tire, 2 for 4, 6 and 8 row narrow, 4 for 12 and 16 row

1шт.

4

481344R91

WHEEL

14 in. high floatation, for 9.5L-14 tire, 6 row wide double row and 8 row wide

2шт.

387841R91

VALVE

TR413 tubeless tire

2шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel, 6 per wheel

1шт.

6

484434R1

ROD

AXLE, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per axle

1шт.

280954

NUT,3/4"-10, G5

2 per axle 3/4"-10, G5

1шт.

7

484031R2

SPACER

2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

21844R1

WASHER

25/32 x 1-1/8 x 16 ga znd, 1 per spacer

1шт.

8

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

ball, 4 for 4, 6 and 8 row, 8 for 12 and 16 row

1шт.

9

547956R1

WASHER

retaining, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

10

546463R1

CYLINDER END CAP

BUSHING, 2 for 4, 5 and 8 row, 4 for 12 and 16 row

1шт.

11

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11 wheel arm, 5 x 7, 4 for 4, 6 and 8 row

1шт.

11

1250813C1

U-BOLT

5/8-11 wheel arm, 7 x 7, 8 for 12 and 16 row

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 per u-bolt

1шт.

12

58150C1

SPACER

bearing, 6 row wide double row, 8 row wide, 12 and 16 row

1шт.

13

TOOL BAR, refer to main frame tool bar unit

1шт.

14

546482R1

SPROCKET ASSY.

SPROCKET, 1st wheel, see note A, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

15

547954R1

WASHER

wear, see note A, 2 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

Выбрано товаров: 22
