Запчасти Case IH 500 (YA-13) - AUGERS AND RELATED PARTS, FOR 4 ROW WIDE AND 4 ROW ADJUSTABLE

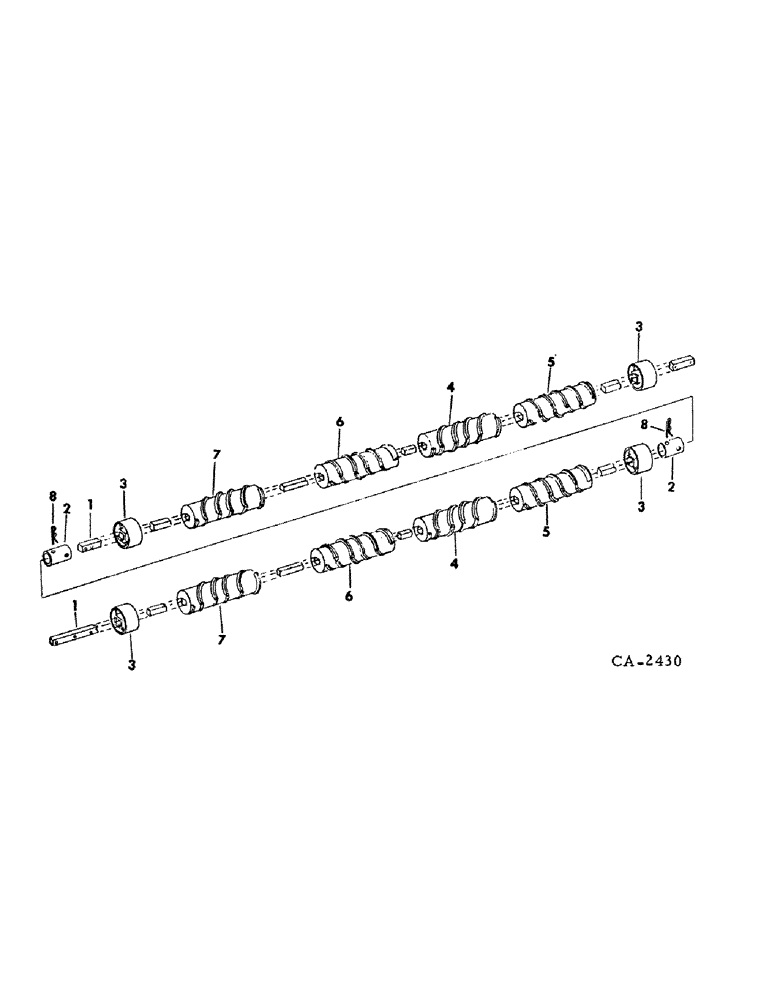

Схема запчастей Case IH 500 - (YA-13) - AUGERS AND RELATED PARTS, FOR 4 ROW WIDE AND 4 ROW ADJUSTABLE
7
4
4
2
6
5
2
1
8
7
3
6
8
1
3
5
3
3

Артикул

Название

Примечание

Количество

1

487632R3

BAR

SHAFT, auger feed

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

6шт.

2

541839R1

SPACER

COUPLING, auger feed shaft, 4 row wide

1шт.

2

57650C1

COUPLING

auger feed shaft, 4 row adjustable

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

3

BEARING, auger, discontinued for service

2шт.

re it 3....see service bulletin s2968, part no longer required. (pt 472417r1) ph 3/25/97

1шт.

4

480152R1

AUGER

low rate right inner short, 4 row adjustable

1шт.

4

480107R1

AUGER

high rate right inner short, 4 row adjustable

1шт.

4

487032R1

AUGER

extra high rate right inner short, 4 row adjustable

1шт.

58456C1

SPACER, .938 x 1.38 x 1

2шт.

5

472421R1

AUGER

low rate right outer

1шт.

5

472425R1

AUGER

high rate right outer

1шт.

5

483534R1

AUGER

extra high rate right outer

1шт.

6

480151R1

AUGER

low rate left inner short, 4 row adjustable

1шт.

6

480106R1

AUGER

high rate left inner short, 4 row adjustable

1шт.

6

487033R1

AUGER

extra high rate left inner short, 4 row adjustable

1шт.

7

472420R1

AUGER

low rate left outer

1шт.

7

472424R1

AUGER

high rate left outer

1шт.

7

483533R1

AUGER

extra high rate left outer

1шт.

8

520177R1

PIN

quick attachable cot.

1шт.

Выбрано товаров: 23
