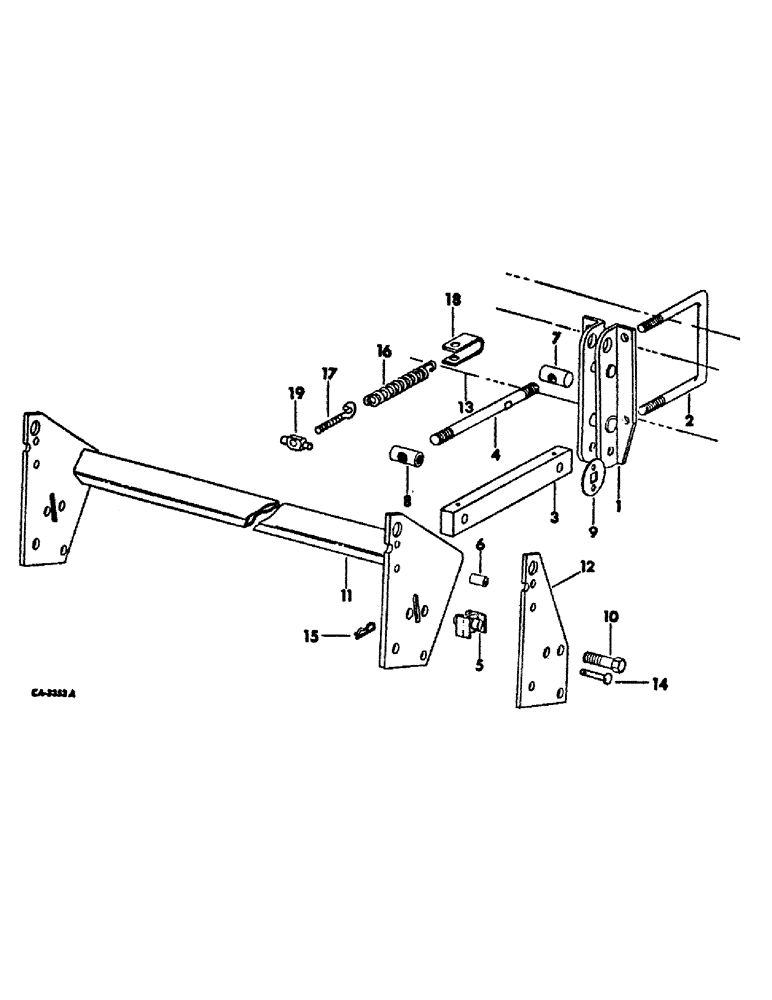

Запчасти Case IH 500 (B-10) - PARALLEL LINKAGE, FOR CENTER UNITS, FOR 12 AND 16 ROW
№
Артикул
Название
Примечание
Количество
1
492936R91
BRACKET
ASSY, head
2шт.
2
1250813C1
U-BOLT
5/8-11, replaces 493837R2
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 znd hex.
8шт.
3
545405R1
BAR
lower parallel link
2шт.
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 STR drive type lub
2шт.
19700R91
FITTING
3/16 45 deg angle drive lub
2шт.
4
523448R1
ROD
upper link
2шт.
5
483287R2
BLOCK
gang stop
2шт.
18811R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2 x 2-3/4 znd hex-hd mach
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
6
483284R1
SPACER
2шт.
7
483285R1
PIVOT ASSY.
SWIVEL, upper link, front
2шт.
8
483286R1
PIVOT ASSY.
SWIVEL, upper link, rear
2шт.
522591R1
PLUG
bolt locking
2шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 znd hex-hd mach
2шт.
9
486998R1
WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk
lower pivot brg
4шт.
10
545406R1
BOLT (SPREADER),Hex, 3/4" - 10 x 3", Cl 1
BOLT, lower link pivot
4шт.
24663R1
LOCK NUT,3/4"-10, G5
NUT, 3/4-10 CDP nylon insert
4шт.
11
59094C1
BAR ASSY, parallel linkage 2-1/2 x 2-1/2 x 82, non-staggered, 12 row narrow
1шт.
11
58188C1
BAR ASSY, parallel linkage 2-1/2 x 2-1/2 x 100, non-staggered, 12 row wide
1шт.
11
58182C1
BAR ASSY, parallel linkage 2-1/2 x 2-1/2 x 120, non-staggered, 16 row
1шт.
11
60839C1
BAR ASSY, parallel linkage 3 x 3 x 82, staggered, 12 row narrow
1шт.
11
60837C2
BAR ASSY, parallel linkage 3 x 3 x 100, staggered, 12 row wide
1шт.
11
60840C1
BAR ASSY, parallel linkage 3 x 3 x 120, staggered, 16 row
1шт.
12
58298C1
PLATE, attaching
2шт.
13
TOOL BAR, refer to main frame tool bar unit
1шт.
14
21950R1
HEADED PIN,3/4" x 2 1/2"
PIN, 3/4 x 2-1/2 znd std-hd
2шт.
15
520175R1
CLIP
PIN, 3/16 quick attachable cot.
2шт.
16
487236R2
SPRING
2шт.
17
542321R1
BOLT,3/8" - 16 x 4"
hook eye
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
18
492935R1
CLEVIS
ANCHOR, spring
2шт.
19
487235R2
PIVOT
trunnion
2шт.
Выбрано товаров: 34
