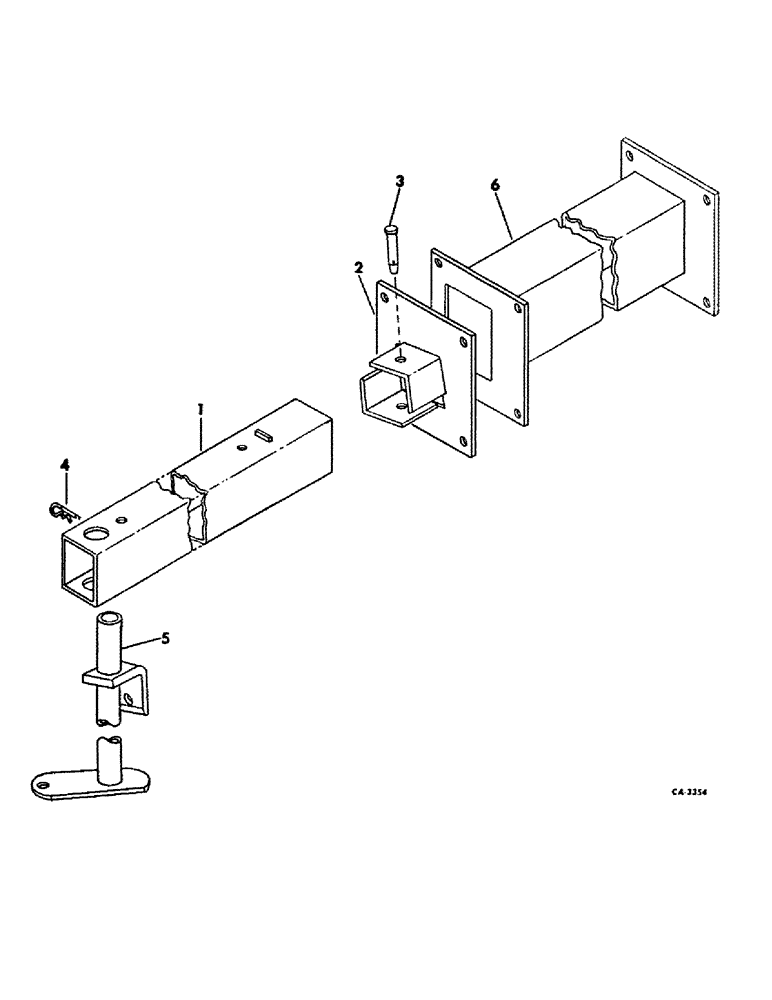

Запчасти Case IH 500 (B-79) - TRANSPORT HITCH ATTACHMENT, 8 ROW WIDE, 12 AND 16 ROW

1

549841R1

TUBE

ASSY, hitch

1шт.

2

549838R1

BRACKET

ASSY, hitch

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

13106

WASHER, 3/4 znd med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

493990R2

PIN

pointed

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

4

473865R91

LINCH PIN

PIN ASSY, quick attachable

1шт.

5

58231C1

STAND

ASSY

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 C-Z std-hd

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

6

TOOL BAR, refer to main frame tool bar unit

1шт.
