(B-78) - QUICK ATTACHABLE HITCH, FOR 3-POINT CATEGORY II & III HITCH

Запчасти Case IH 500 (B-78) - QUICK ATTACHABLE HITCH, FOR 3-POINT CATEGORY II & III HITCH

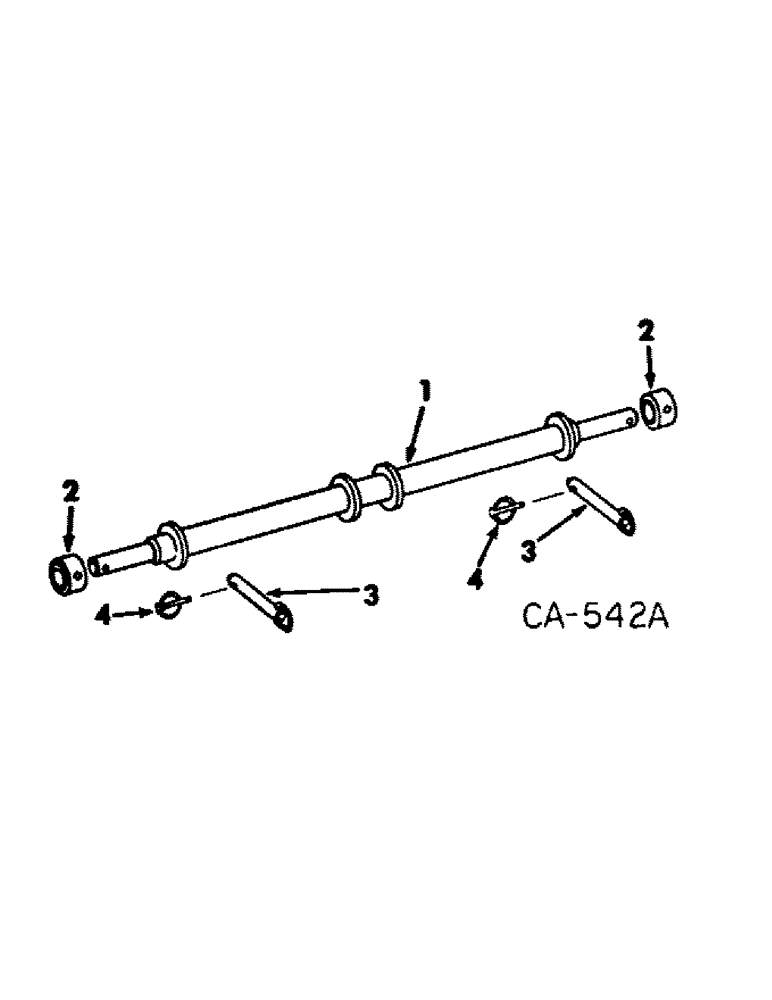

Схема запчастей Case IH 500 - (B-78) - QUICK ATTACHABLE HITCH, FOR 3-POINT CATEGORY II & III HITCH
4
4
2
3
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

483572R92

SPINDLE

ASSY, spreader, category II

1шт.

1

57233C1

SPINDLE

ASSY, spreader, category III

1шт.

2

401233R1

COLLAR

thrust, category III

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

3

113225C1

PIN

ASSY, ball, replaces 517853R21

2шт.

4

373025R91

PIN ASSY.

PIN ASSY, quick attachable

2шт.
