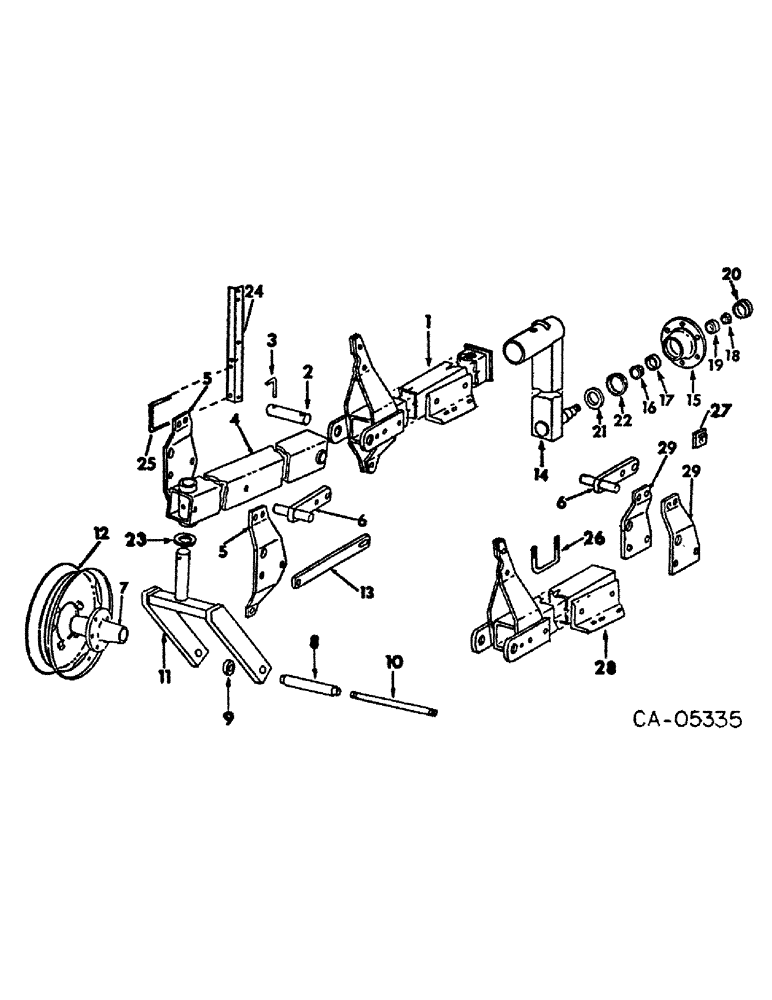

Запчасти Case IH 500 (B-77) - ASSIST WHEELS ATTACHMENT, WITH TRANSPORT ATTACHMENT W/WELDED TRANSPORT TUBE

1

125604C1

TUBE w/TWO BUSHINGS, 583346R1, transport

1шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

1шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9 type 5

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 STR drive type lub

1шт.

2

125682C1

PIN

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

3

491601R2

PIN

pivot lock

2шт.

4

541748R1

TUBE ASSY, assist wheel

2шт.

66584D

FITTING

3/16 drive type STR lub

2шт.

109366

FITTING, 3/16 drive type 30 deg angle lub

2шт.

5

541732R1

PLATE, LH

1шт.

5

541753R1

SUPPORT

PLATE, RH

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

6

59372C1

LINK

ASSY, cylinder

2шт.

551183R1

WASHER, 1.531 x 2.500 x .054 pln

4шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

4шт.

7

541757R1

HUB

wheel

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical hd

12шт.

8

541758R1

TUBE

SPACER, axle rod

2шт.

9

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

10

541759R2

ROD

axle

2шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

11

125563C2

ARM ASSY.

ARM ASSY, wheel

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

12

481344R91

WHEEL

14 in. for 9.50L-14 tire

3шт.

12

463034R1

RIM

WHEEL, 14 in. for 7.50-14 tire

3шт.

13

58023C1

LINK, transport

1шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2.375 pln hd type 5

3шт.

520175R1

CLIP

PIN, quick attachable cot.

3шт.

14

541764R2

AXLE ASSY, wheel

1шт.

541769R1

PIN

pointed

1шт.

517843R1

COTTER PIN

PIN, 3/16 cot.

1шт.

21715R1

WASHER

.906 x 1.750 x .105

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 SLT hex. jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

15

465496R11

HUB

ASSY, 6-bolt wheel

1шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical hd

6шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel hub inner cone

1шт.

17

663558R1

BEARING CUP

BEARING, wheel hub inner cup

1шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone

1шт.

19

651817R1

BEARING CUP

BEARING, wheel hub outer cup

1шт.

20

663906R1

CAP

hub

1шт.

21

654674R91

OIL SEAL

wheel hub oil

1шт.

22

654675R1

RING

1шт.

23

462997R1

WASHER

wear

4шт.

24

58316C1

SUPPORT

safety light

1шт.

25

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11, 5 x 7

1шт.

25

1250813C1

U-BOLT

5/8 in., 7 x 7

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

26

58033C1

BOLT

U-BOLT, 1 in., 5 x 7

4шт.

26

58152C1

BOLT

U-BOLT, 1 in., 7 x 7

4шт.

21929R1

NUT,1"-8, G8

1 type 8

8шт.

27

541782R1

STOP ASSY

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

28

125681C1

TUBE, assist wheels

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

29

541771R1

PLATE, LH

1шт.

29

541772R1

PLATE

RH

1шт.
