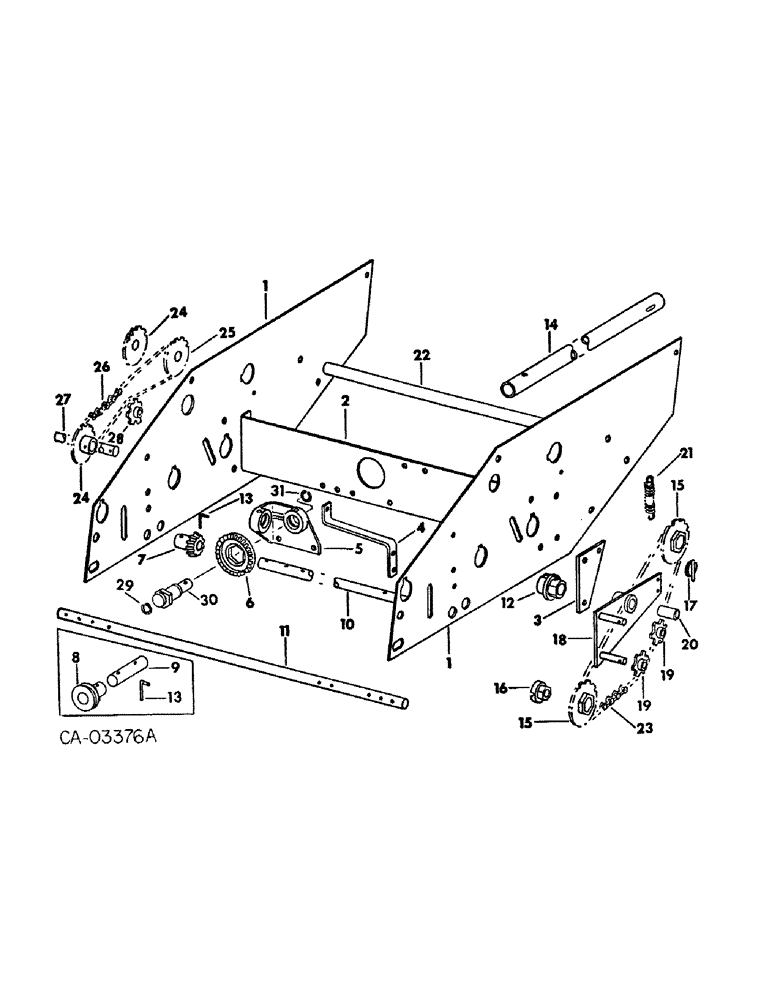

Запчасти Case IH 500 (B-08) - CENTER DRIVE UNIT, QUANTITIES SHOWN ARE PER SEED HOPPER

1

58212C3

PLATE, hopper mounting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

4шт.

20601R1

WASHER

.531 x 1.25 x 11 ga znd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga znd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

58210C1

PLATE, gear box mounting

1шт.

3

58172C1

SUPPORT, chain tightener

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

4

546991R1

BRACKET, sprocket storage

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

546529R2

BOX

GEAR BOX

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

6

128763C1

PINION

GEAR, drum drive, will work for 55580C3 when used w/gear 128760C1

1шт.

7

128760C1

PINION

drum drive, will work for 546287R3 when used w/gear 128763C1

1шт.

8

55579C3

BUSHING

drive, for use w/shaft 546532R1

1шт.

9

546532R1

SHAFT

gear drum drive, for replacement order shaft 128806C1, ring 202306C1, washer Q3835, & ring 659380R1

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 x 90 deg angle short lubrication

1шт.

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 x 90 deg angle lub

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

2шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

2шт.

22481R1

WASHER

1.406 x 2.250 x .054 znd

2шт.

10

141395C1

SHAFT

gear box, replaces 58261C1

1шт.

11

141398C1

COUNTERSHAFT, center, replaces 58265C1

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

12

481812R11

BEARING ASSY

w/BUSHING

3шт.

19700R91

FITTING

3/16 x 45 deg drive lub

3шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

3шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

3шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

3шт.

13

546531R1

PIN

drive

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

14

58173C1

COUPLING

drum drive

1шт.

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, 1/4 x 1.81 znd headed

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

15

546432R1

SPROCKET ASSY.

SPROCKET, 16T, Serial Range: 1973-1978

1шт.

15

134240C1

SPROCKET ASSY.

SPROCKET, 16T, 1978 and since

1шт.

15

546433R1

SPROCKET ASSY.

SPROCKET, 14T, Serial Range: 1973-1978

1шт.

15

134238C1

SPROCKET ASSY.

SPROCKET, 14T, 1978 and since

1шт.

15

546515R1

SPROCKET ASSY.

SPROCKET, 18T, Serial Range: 1973-1978

1шт.

15

134242C1

SPROCKET ASSY.

SPROCKET, 18T, 1978 and since

1шт.

15

546516R1

SPROCKET ASSY.

SPROCKET, 15T, Serial Range: 1973-1978

1шт.

15

134239C1

SPROCKET ASSY.

SPROCKET, 15T, 1978 and since

1шт.

15

546518R1

SPROCKET ASSY.

SPROCKET, 11T, Serial Range: 1973-1978

1шт.

15

134236C1

SPROCKET ASSY.

SPROCKET, 22T, 1978 and since

1шт.

15

134235C1

SPROCKET ASSY.

SPROCKET, 10T, replaces 546514R1

1шт.

15

134234C1

SPROCKET ASSY.

SPROCKET, 8T, replaces 546517R1

1шт.

15

134237C1

SPROCKET ASSY.

SPROCKET, 12T, replaces 484197R2

1шт.

15

134241C1

SPROCKET ASSY.

SPROCKET, 17T, replaces 484196R2

1шт.

16

547955R1

HUB

sprocket drive

2шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

17

373025R91

PIN ASSY.

PIN ASSY, quick attachable

1шт.

18

58272C2

PLATE

ASSY, chain tightener

1шт.

20691R1

FITTING,3/16" x .47" lg, Drive

3/16 STR drive type short lub

1шт.

22942R1

PIN, 1/4 x 3/4 znd cot.

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga znd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

19

472344R3

SPROCKET

idler

2шт.

20

548537R1

BUSHING

1шт.

21

PO7

SPRING

1шт.

22942R1

PIN, 1/4 x 3/4 znd cot.

1шт.

22

58032C1

TUBE, plate tie 1.5" OD, 27.94" Length

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

CHAIN, drum drive, use 33 links of 1 in. ext pitch agricultural roller chain from a 10 ft roll marked, 569088R91 and one connecting link, 457113R91

1шт.

24

546537R1

SPROCKET ASSY.

SPROCKET, 12T

1шт.

25

546538R1

SPROCKET ASSY.

SPROCKET, 15T

1шт.

20535R1

CLEVIS PIN

PIN, 3/16 x 1-3/4 rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

26

CHAIN, sprocket drive, use 35 links of 1 in. ext pitch agricultural roller chain from a 10 ft roll marked, 569088R91, one offset link, 457114R91 and one connecting link, 457113R91

1шт.

27

SHAFT, main drive, refer to wheel drive unit

1шт.

28

472344R2

DRIVE SPROCKET

SPROCKET, idler

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

1шт.

495-21031

WASHER,1/4"

17/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

29

202306R1

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

30

128806C1

SHAFT

1шт.

31

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.
