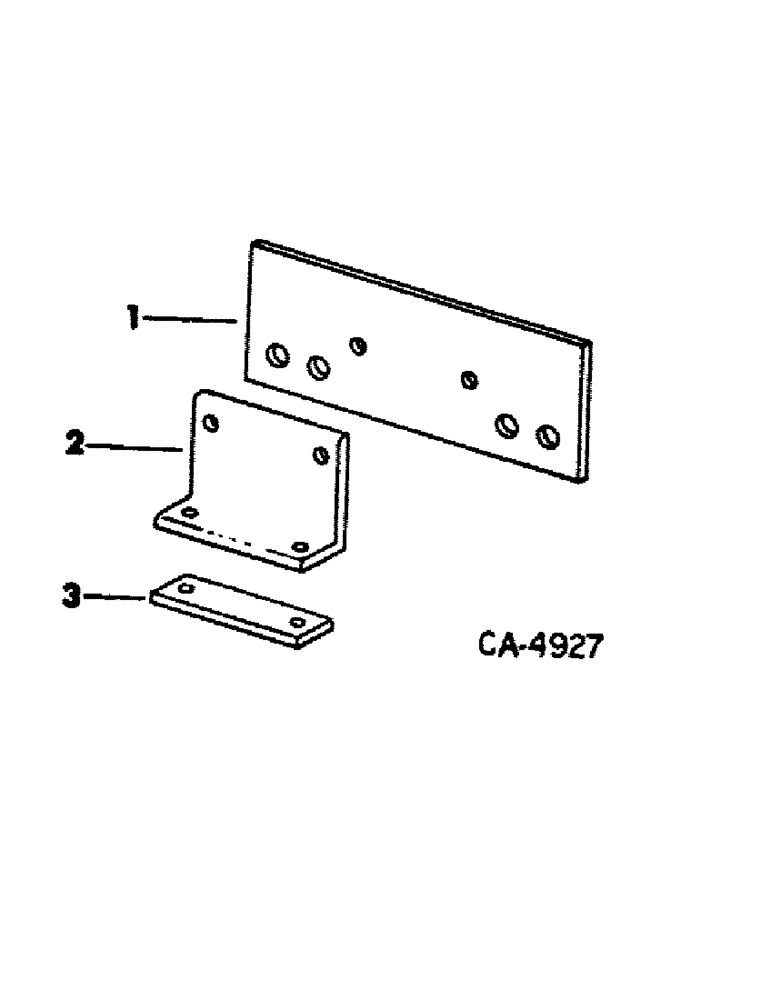

Запчасти Case IH 500 (B-74) - WEIGHT BRACKET ATTACHMENT, FOR ASSIST WHEELS, 6 ROW WIDE, 8 ROW EXCEPT 22 IN. SPACING, 12 AND 16 ROW

1

113020C1

BAR, weight bracket

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

2

113021C1

ANGLE

weight bracket bar

2шт.

3

113022C1

BAR

weight bracket angle

2шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

SCREW, 1/2-13 x 7 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
