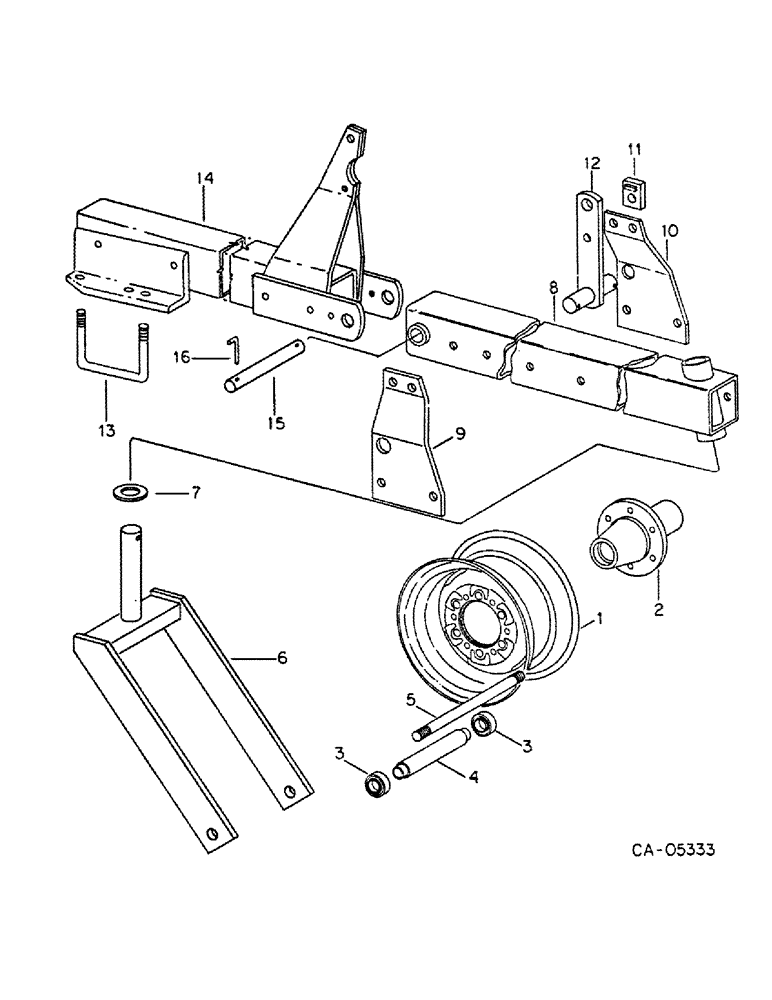

Запчасти Case IH 500 (B-73) - ASSIST WHEELS ATTACHMENT, W/O TRANSPORT ATTACHMENT W/WELDED ASSIST WHEEL TUBE

1

481344R91

WHEEL

14 in., for 9.50L-14 tire

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical hd

12шт.

2

541757R1

HUB

wheel

2шт.

3

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

4

541758R1

TUBE

SPACER, axle rod

2шт.

5

541759R2

ROD

axle

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

1шт.

6

125563C2

ARM ASSY.

ARM ASSY, wheel

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

7

462997R1

WASHER

wear

4шт.

8

541748R1

TUBE ASSY, assist wheel

2шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 drive tpe 65 deg angle lub

2шт.

66584D

FITTING

3/16 drive type STR lub

2шт.

9

541771R1

PLATE, LH

2шт.

10

541772R1

PLATE

RH

2шт.

11

541782R1

STOP ASSY

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

12

59372C1

LINK

ASSY, cylinder

2шт.

551183R1

WASHER, 1.531 x 2.500 x .054 pln

4шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

4шт.

13

58033C1

BOLT

U-BOLT, 1 in. 5 x 7

4шт.

13

58152C1

BOLT

U-BOLT, 1 in. 7 x 7

4шт.

21929R1

NUT,1"-8, G8

1 type 8

8шт.

14

125681C1

TUBE ASSY, assist wheel

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

15

125682C1

PIN

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

16

491601R2

PIN

pivot lock

2шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd, used to secure assist wheels when not in use

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.
