Запчасти Case IH 500 (B-71) - ASSIST WHEELS ATTACHMENT, W/O TRANSPORT W/BOLTED ASSIST WHEEL TUBE

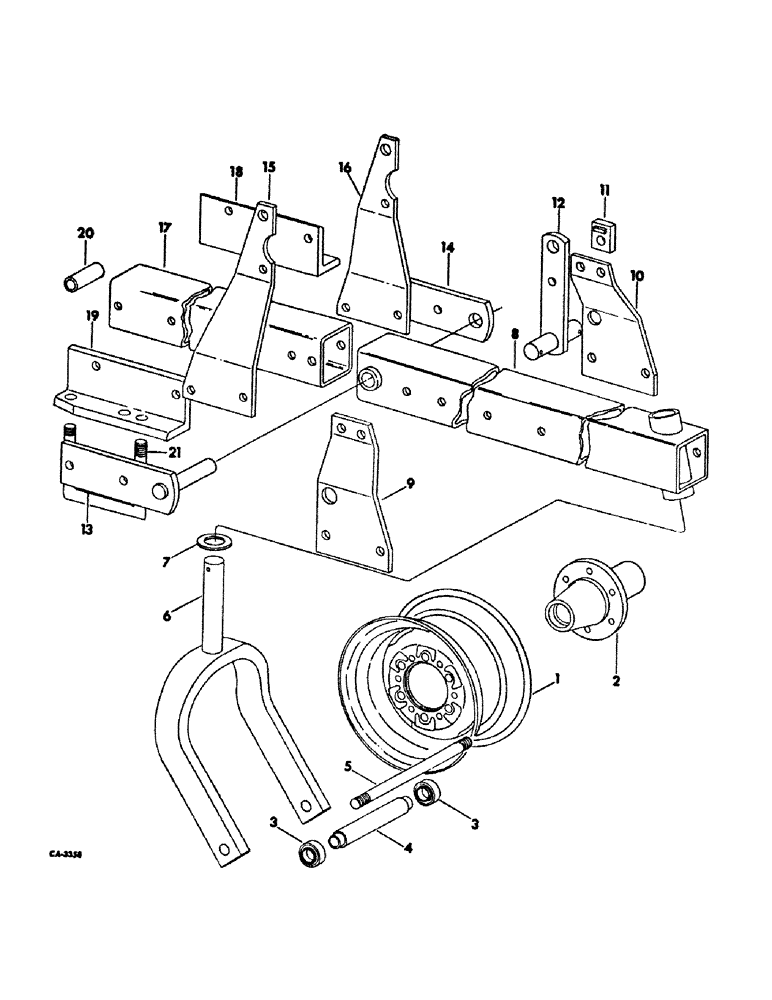

Схема запчастей Case IH 500 - (B-71) - ASSIST WHEELS ATTACHMENT, W/O TRANSPORT W/BOLTED ASSIST WHEEL TUBE
10
20
16
5
14
7
11
3
18
19
21
13
6
9
4
15
12
17
3
2
8
1

Артикул

Название

Примечание

Количество

1

481344R91

WHEEL

14 in., for 9.50L-14 tire

2шт.

1

463034R1

RIM

WHEEL, 14 in., for 7.50-14 tire

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

2

541757R1

HUB

wheel

2шт.

3

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

591715R1

WASHER

1.031 x 1.500 x.054

4шт.

4

541758R1

TUBE

SPACER, axle rod

2шт.

5

541759R2

ROD

axle

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

6

541760R2

ARM ASSY, wheel

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

7

462997R1

WASHER

wear

4шт.

8

541748R1

TUBE ASSY, assist wheel

2шт.

66584D

FITTING

3/16 drive type STR lub

2шт.

109366

FITTING, 3/16 drive type 30 deg angle lub

2шт.

9

541771R1

PLATE, LH

2шт.

10

541772R1

PLATE

RH

2шт.

11

541782R1

STOP ASSY

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

12

59372C1

LINK

ASSY, cylinder

2шт.

551183R1

WASHER, 1-17/32 x 2-1/2 x 16 ga

4шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

4шт.

13

541746R1

ARM

ASSY

2шт.

23721R1

SCREW, 3/4-10 x 8-1/2 znd type 8 hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 type 8 znd hex.

4шт.

14

541745R2

ARM

2шт.

15

58180C1

PLATE, cylinder anchor LH

2шт.

16

58181C1

PLATE, cylinder anchor RH

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

17

541770R1

TUBE, assist wheel

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

541745R2

NUT, 3/4-10 znd hex.

4шт.

18

58243C1

ANGLE, assist wheel, RH

2шт.

19

58242C1

ANGLE, assist wheel, LH

2шт.

20

543441R1

SPACER, tube

4шт.

21

58033C1

BOLT

U-BOLT, 1 in. 5 x 7

4шт.

21

58152C1

BOLT

U-BOLT, 1 in. 7 x 7

4шт.

21929R1

NUT,1"-8, G8

1-8 C-Z hex. type 8

8шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd, used to secure assist wheel when not in use

2шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

Выбрано товаров: 48
