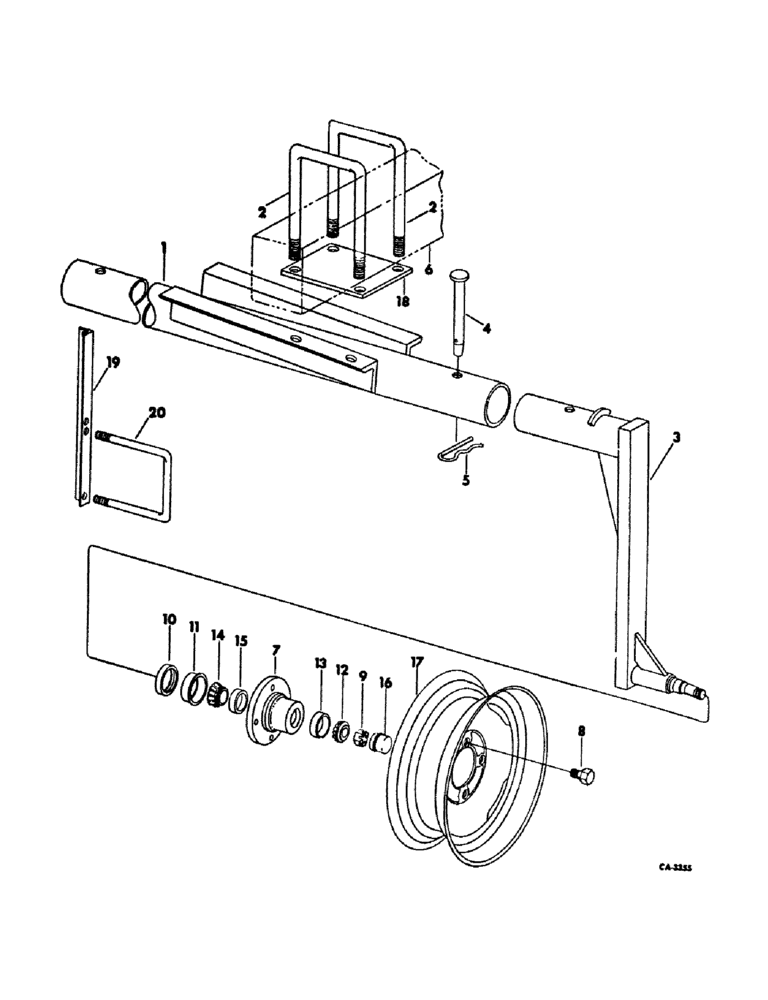

Запчасти Case IH 500 (B-69) - TRANSPORT ATTACHMENT, NOT FOR USE W/ASSIST WHEELS, FOR 8 ROW WIDE

1

493979R1

TUBE ASSY, transport

1шт.

2

492989R2

BOLT,7/8" - 9 x 9"

U-BOLT

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

493983R1

AXLE ASSY, wheel

2шт.

4

486220R1

PIN

transport tube pointed

2шт.

5

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

6

TOOL BAR, refer to main frame tool bar unit

1шт.

7

472220R21

HUB

w/SET SCREW, 443804, wheel

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF STR lub

2шт.

443804

SCREW, 1/4-28 x 1/4 C-Z stl ov-pt hdls set

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

8шт.

9

69442D

NUT

3/4-16 slt-hdx. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

10

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

11

472222R1

SLEEVE

oil seal wear

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

13

651814R1

BEARING CUP

BEARING, outer cup

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

15

651817R1

BEARING CUP

BEARING, inner cup

2шт.

16

651194R1

CAP

wheel brg hub

2шт.

17

463036R1

WHEEL (STEERING)

WHEEL, 14 in. standard, for 7.75-14 or 8.25-14 tires

2шт.

18

493840R1

PLATE

reinforcing, 5 x 7

1шт.

19

58316C1

SUPPORT

safety light

1шт.

20

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11, replaces 492942R2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.
