Запчасти Case IH 500 (B-67) - BLADE COVERING ATTACHMENT, NON-STAGGERED, ONE PER ROW

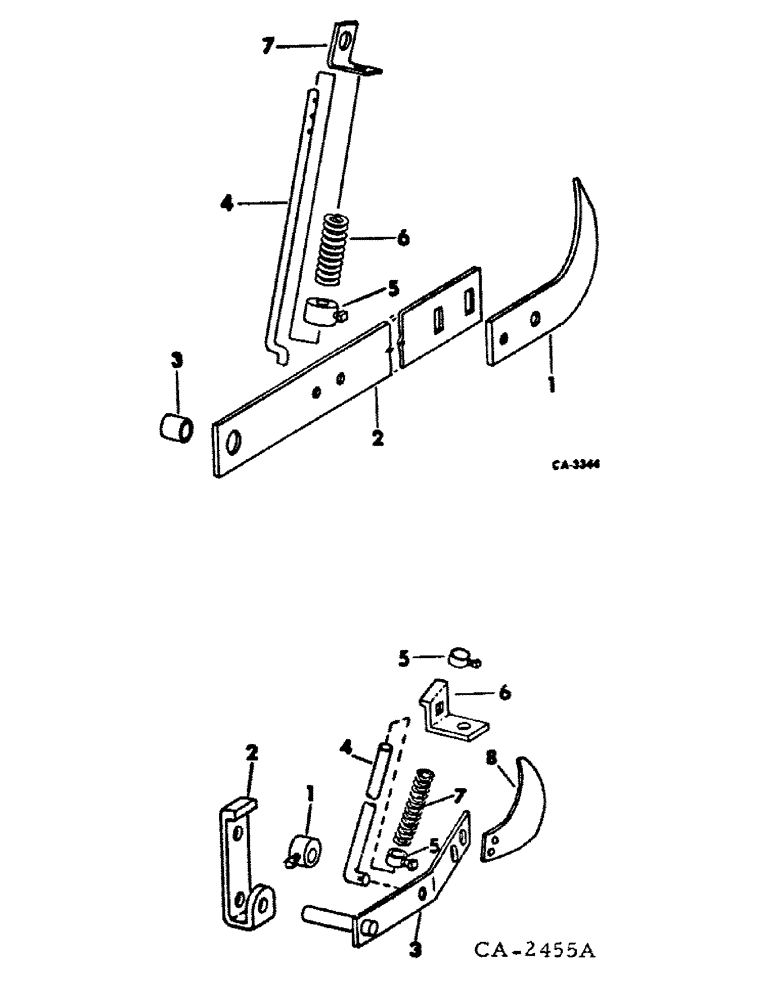

Схема запчастей Case IH 500 - (B-67) - BLADE COVERING ATTACHMENT, NON-STAGGERED, ONE PER ROW
8
5
1
3
7
6
1
4
2
3
5
4
2
6
7
5

Артикул

Название

Примечание

Количество

1

621582R1

SUPPORT

BLADE, LH

1шт.

1

621583R1

BLADE

RH

1шт.

2

58257C1

ARM

covering blade

2шт.

19569R1

BOLT,Hex, 5/16"-18 x 7/8", G2

5/16 x 7/8 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

58169C2

BUSHING

covering blade arm

2шт.

4

526249R1

ROD

pressure, serial no. 957 and below

2шт.

4

60625R1

ROD, pressure, serial no. 958 and above

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

5

514547R11

COLLAR CLAMP

COLLAR w/SET SCREW, 142671, set

2шт.

142671

SET SCREW

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

2шт.

6

11100D

SPRING

pressure

1шт.

7

526248R1

ANGLE

BRACKET, pressure rod, serial no. 957 and below

2шт.

7

60626R1

BRACKET, pressure rod, serial no. 958 and above

2шт.

607895R1

WASHER

17/32 x 1 x .105 znd

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

8шт.

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR w/SET SCREW, 110447

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

2шт.

2

548425R1

BRACKET

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

549590R1

ARM

ASSY, blade LH

1шт.

3

549591R1

ARM

ASSY, blade RH

1шт.

3

100071C1

ARM ASSY, blade, 2 for 4 row and 6 row wide double row

1шт.

4

548422R1

ROD

lift

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 131/6 x .065 C-Z

4шт.

5

517951R11

WEAR PAD

COLLAR w/SET SCREW

4шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

4шт.

6

548423R1

CLIP

LH

1шт.

6

548423R1

CLIP

RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

2833

SPRING

2шт.

8

621427R2

BLADE

covering RH

1шт.

8

621426R2

BLADE

covering LH

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

Выбрано товаров: 43
