(B-65) - PRESS WHEEL PRESSURE SPRING, REQUIRED WHEN USING DEPTH BAND DRUMS, NON-STAGGERED, ONE PER ROW

Запчасти Case IH 500 (B-65) - PRESS WHEEL PRESSURE SPRING, REQUIRED WHEN USING DEPTH BAND DRUMS, NON-STAGGERED, ONE PER ROW

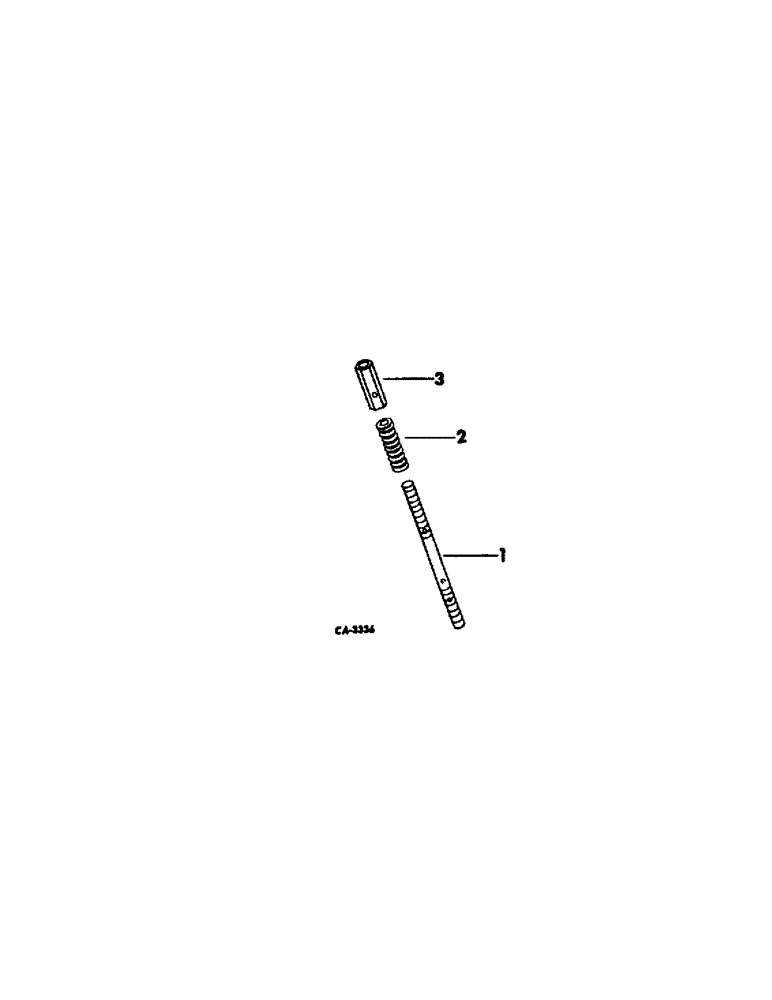

Схема запчастей Case IH 500 - (B-65) - PRESS WHEEL PRESSURE SPRING, REQUIRED WHEN USING DEPTH BAND DRUMS, NON-STAGGERED, ONE PER ROW
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

493120R2

ROD

adjusting

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 C-Z SLT hex.

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

2

PO109

SPRING

pressure

1шт.

3

542261R1

NUT

rod adjusting

1шт.
