Запчасти Case IH 500 (B-07) - SUB TOOL BAR

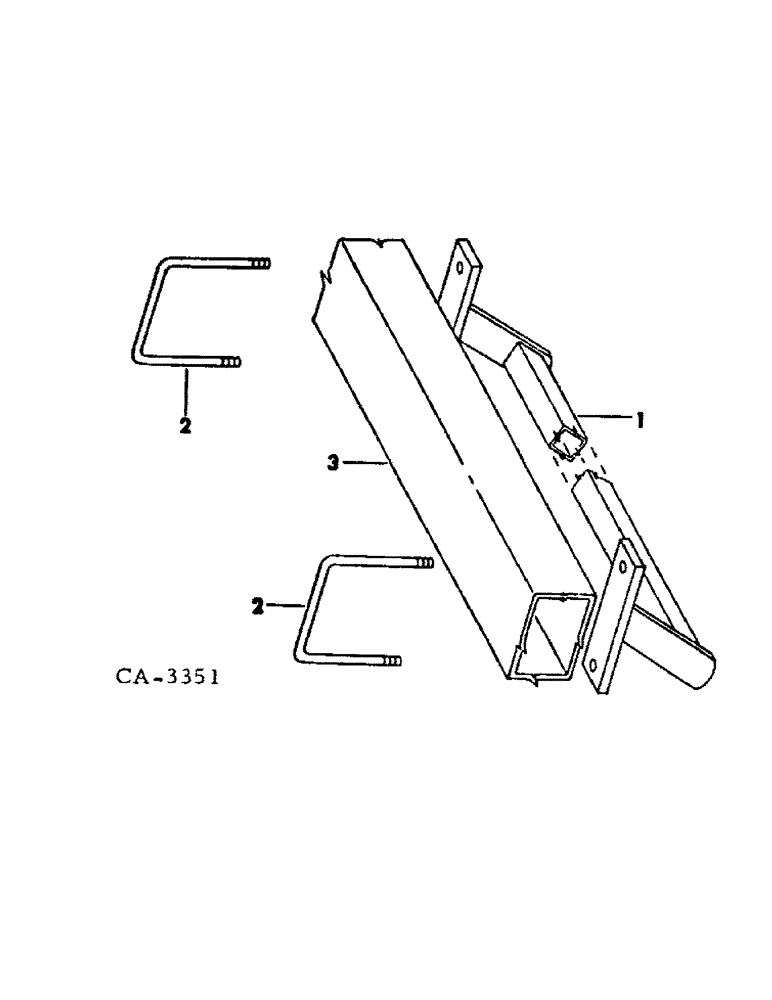

Схема запчастей Case IH 500 - (B-07) - SUB TOOL BAR
2
2
3
1

Артикул

Название

Примечание

Количество

1

542397R1

BAR

TOOL BAR ASSY, short sub, 45.7 in., 4,6 and 8 row non-staggered, 1 per carrier

1шт.

1

58178C1

TOOL BAR ASSY, sub, 82 in., 12 row 22 to 24 in. spacing, non- staggered

2шт.

1

58189C1

TOOL BAR ASSY, sub, 100 in., 12 row 28 to 30 in. spacing and 16 row non-staggered

2шт.

1

60788C1

TOOL BAR ASSY, sub, 3 x 3 x 45.7, 4, 6 and 8 row staggered

1шт.

1

60831C1

TOOL BAR ASSY, sub, 3 x 3 x 82.0, 12 row 22 to 24 in. spacing, staggered

2шт.

1

60829C1

TOOL BAR ASSY, sub, 3 x 3 x 100.0, 12 row 28 to 30 in. spacing, 16 row and 6 row wide double row staggered

2шт.

1

60833C1

TOOL BAR ASSY, sub, 3 x 3 x 64.5, 4 row double row staggered

2шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11 x 6-1/4, 2 per tool bar, 542397R1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per u-bolt

1шт.

2

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, 3/4-10 x 6-9/16, for 5 x 7 in. tool bar, 2 per tool bar

1шт.

2

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

3/4-10 x 8-9/16, for 7 x 7 in. tool bar, 2 per tool bar

1шт.

280954

NUT,3/4"-10, G5

2 per u-bolt 3/4"-10, G5

1шт.

3

TOOL BAR, refer to main frame tool bar unit

1шт.

Выбрано товаров: 13
