Запчасти Case IH 500 (B-65[B]) - PRESS WHEEL DRAG CHAIN ATTACHMENT FOR 4 ROW AND 6 ROW WIDE DOUBLE ROW QUANTITIES SHOWN ARE PER DOUBLE ROW

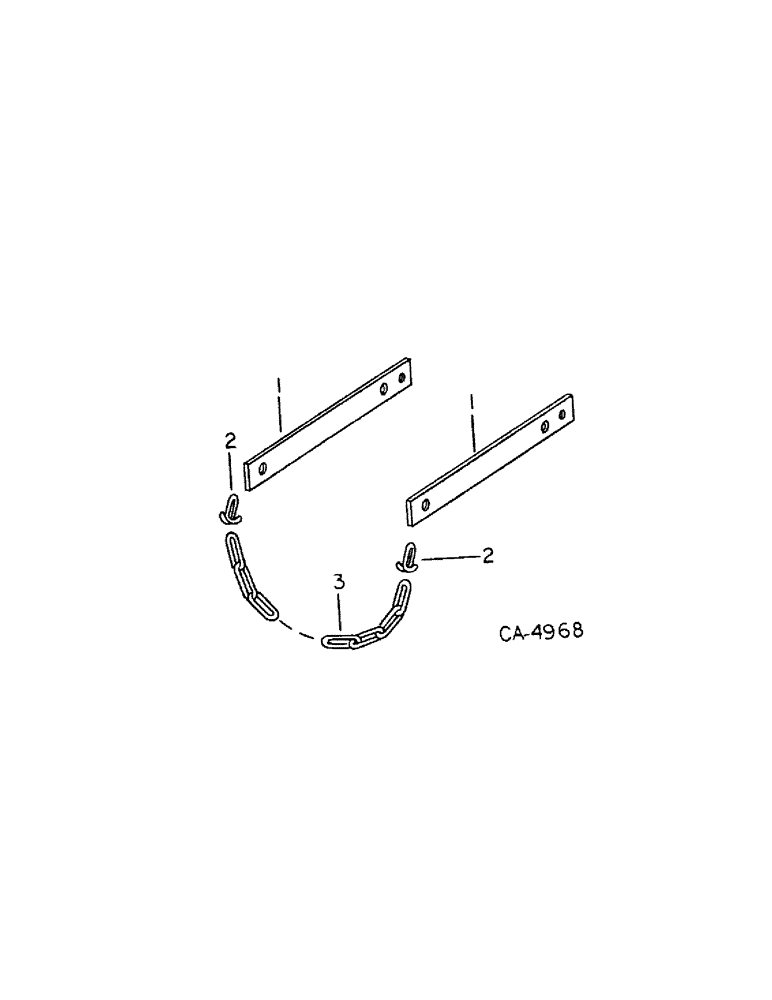

Схема запчастей Case IH 500 - (B-65[B]) - PRESS WHEEL DRAG CHAIN ATTACHMENT FOR 4 ROW AND 6 ROW WIDE DOUBLE ROW QUANTITIES SHOWN ARE PER DOUBLE ROW
3
2
1
2
1

Артикул

Название

Примечание

Количество

1

113329C1

ARM, covering chain

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16-18 x 1-1/2 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

113328C1

ROLL MARKED, ZAN 4030336

1шт.

2

CHAIN, drag, use 30 links froma 75 ft roll marked ZAN 4030336

1шт.

3

524678R1

LINK, connecting

2шт.
